WOODWARD 8200-1312 汽轮机调速器

WOODWARD 8200-1312  汽轮机调速器

商品描述

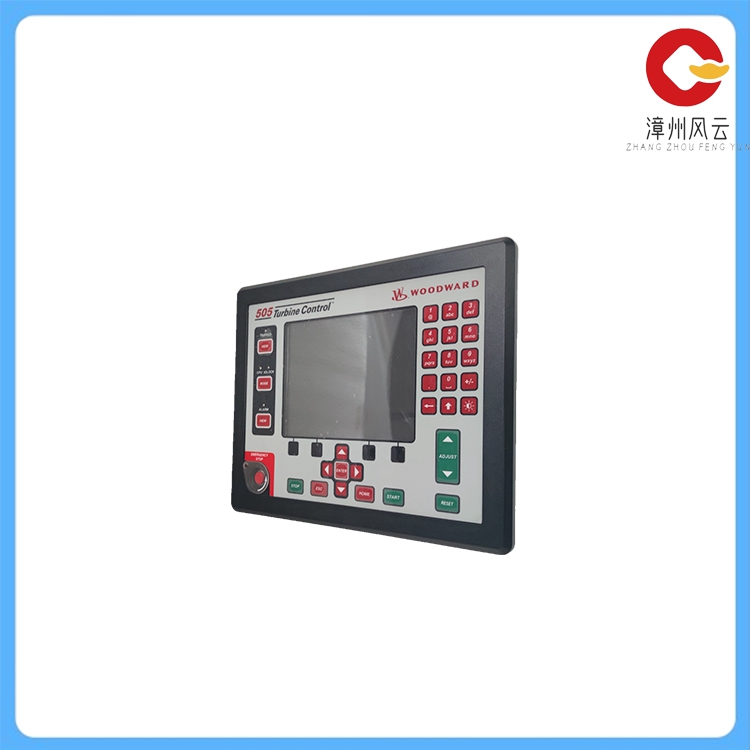

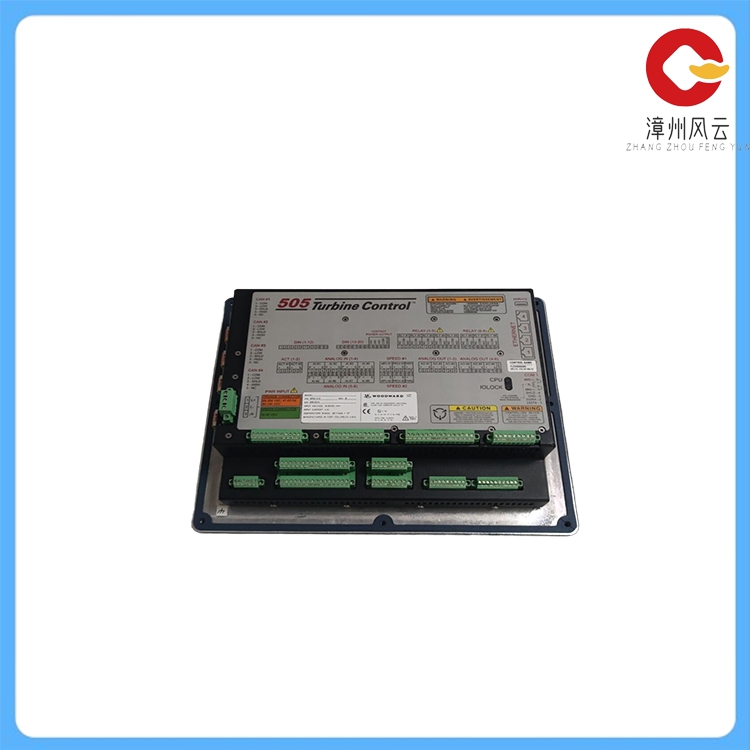

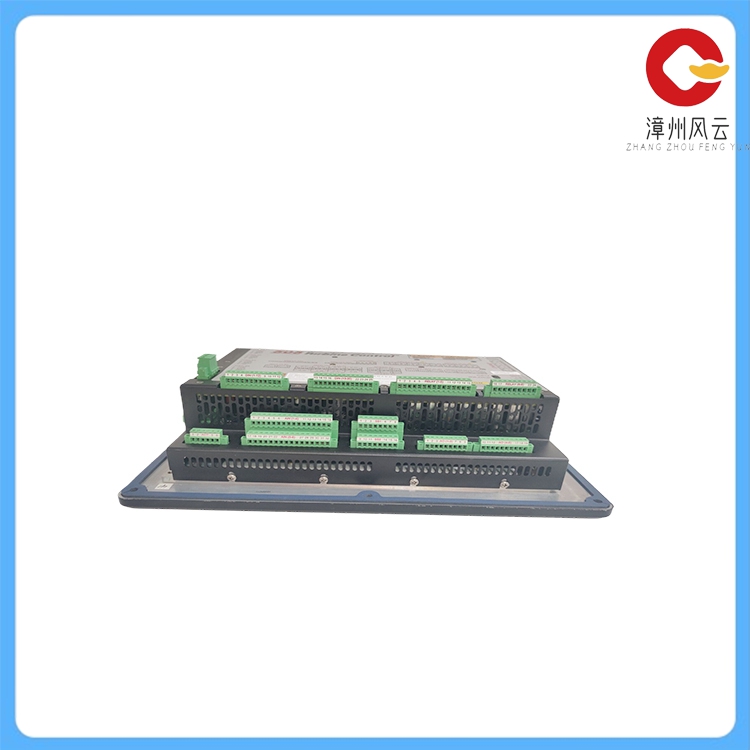

 热电厂汽轮机伍德沃德woodward505调速器8200-1302 、8200-1300

用于带单个或分程执行机构的汽轮机的伍德沃德 505 数字调速器。发行的版本有8200-1300、8200-1301 和 8200-1302。以下的选择表显示了不同件号之间的区别。本手册的第 1 卷提供了安装说明，介绍了该控制器，并对配置（编程）和操作程序进行了解释。第 2 卷包括了在特定应用场合中使用该控制器的注意事项、服务模式信息和 505 硬件规格。

件号 电源

8200-1300 低压直流电（直流 18–32 V）标准合规性

8200-1301 交流/直流电（交流 88–132 V 或直流 90–150 V）,标准合规性

8200-1302 船用/ATEX 合规性低压直流电（直流 18–32 V）

该 505 控制器8200-1302、8200-1300 设计用于控制单执行机构或双（分程）执行机构汽轮机（抽汽式汽轮机需要使用 505XT 版本）。505 可现场编程，这样可以将一个单独的设计用于许多不同的控制应用场合，能够降低成本和缩短交付时间。它采用菜单驱动软件，以引导现场工程师根据具体的发电机或机械驱动应用对该控制器进行编程。可将 505 配置作为独立装置运行，也可配置为与电厂的分布式控制系统一起运行。

Product Description

Woodward 505 speed controllers for thermal power plant steam turbines 8200-1302, 8200-1300

Woodward 505 digital governor for steam turbines with single or split range actuators. The released versions are 8200-1300, 8200-1301, and 8200-1302. 8200-1312The following selection table displays the differences between different part numbers. The first volume of this manual provides installation instructions, introduces the controller, and explains the configuration (programming) and operating procedures. The second volume includes considerations for using the controller in specific application scenarios, service mode information, and 505 hardware specifications.

Part number power supply

8200-1300 Low Voltage Direct Current (DC 18-32 V) Standard Compliance

8200-1301 AC/DC (AC 88-132 V or DC 90-150 V), standard compliance

8200-1302 Marine/ATEX Compliance Low Voltage DC (DC 18-32 V)

The 505 controllers 8200-1312 and 8200-1300 are designed to control single or double (split) actuator steam turbines (extraction steam turbines require the use of the 505XT version). 505 can be programmed on-site, allowing for a single design to be used in many different control applications, reducing costs and shortening delivery times. It uses menu driven software to guide on-site engineers to program the controller based on specific generator or mechanical drive applications. The 505 can be configured to operate as an independent device or in conjunction with the distributed control system of the power plant.
