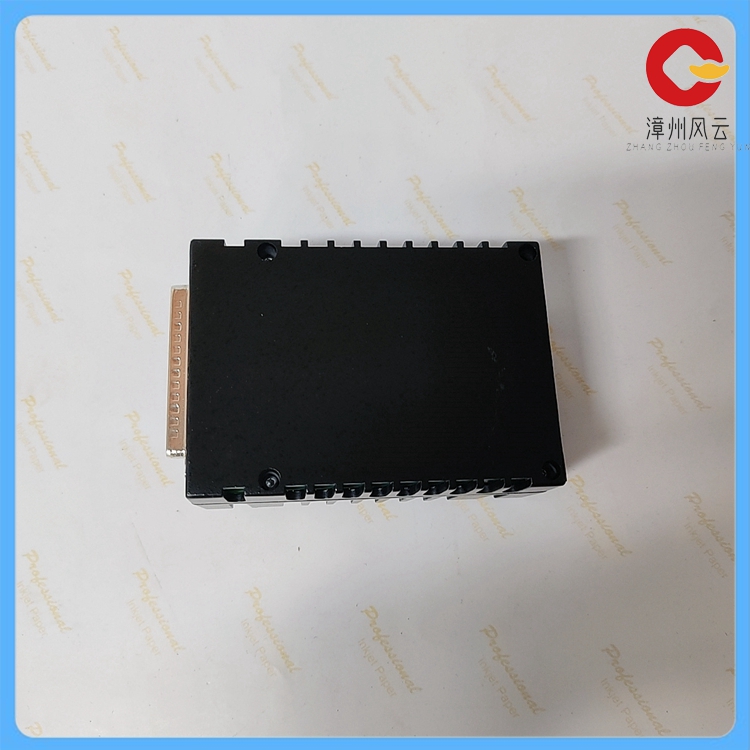

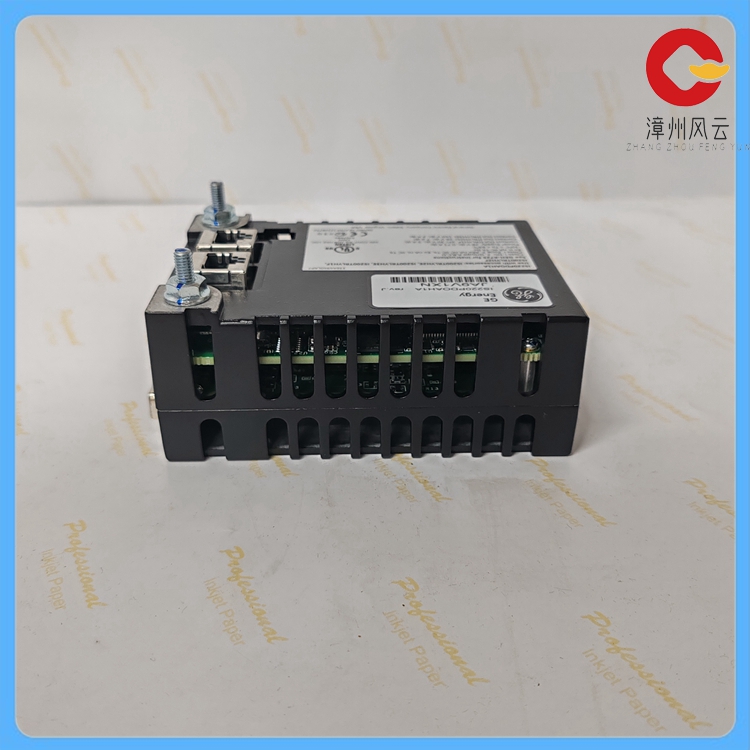

IS220PDOAH1A是一个在工业自动化和控制系统中广泛应用的关键组件。通过电气接口将I/O以太网网络连接到离散输出端子板,实现控制和监测功能。
以下是关于IS220PDOAH1A的详细特性和功能:
控制功能:IS220PDOAH1A最多可以控制12个继电器,并接受来自接线板的反馈。
它支持磁继电器和固态继电器,为用户提供多样化的控制选择。
接口与供电:该电池组由三针电源输入和两个RJ45以太网连接器供电。
输出通过直接连接到相关端子板连接器的DC-37针连接器进行。
诊断与监测:LED指示灯提供视觉诊断,帮助用户快速识别和解决潜在问题。
红外端口允许本地诊断串行通信,进一步增强了故障排查和监测能力。
兼容性:该组件适用于六种不同类型的离散(继电器)输出端子板,但不包括DIN导轨安装的DRLY板。
高可靠性:作为通信模块,IS220PDOAH1A具有高可靠性、高稳定性和高精度,能够满足DCS控制系统的通信需求。
它采用正确的接地方式,抑制电磁干扰的影响,提高系统的抗干扰能力。
保护功能:具有多种保护功能,如过流保护、过压保护和欠压保护等,确保系统的安全可靠运行。
应用领域:适用于各种工业和商业领域,如电力、石油、化工等,特别是在需要高精度控制和保护的场合。通信与接口:具有多种通讯接口,如串口通讯和以太网通讯等,方便用户进行数据传输和远程控制。
支持多种协议,如Modbus、Profibus等,便于与其他系统的集成和互操作。
IS220PDOAH1A is a key component for a wide range of applications in industrial automation and control systems. The I/O Ethernet network is connected to the discrete output terminal board through the electrical interface to achieve control and monitoring functions.
The following are the detailed features and functions of the IS220PDOAH1A:
Control function: The IS220PDOAH1A can control up to 12 relays and accept feedback from the patch panel.
It supports both magnetic and solid-state relays to provide users with a variety of control options.
Interface and Power supply: The battery pack is powered by a three-pin power input and two RJ45 Ethernet connectors.
Output is done via a DC-37 pin connector connected directly to the associated terminal board connector.
Diagnosis and monitoring: LED indicators provide visual diagnostics to help users quickly identify and resolve potential problems.
The infrared port allows serial communication for local diagnostics, further enhancing troubleshooting and monitoring capabilities.
Compatibility: This component is suitable for six different types of discrete (relay) output terminal boards, but does not include DRLY boards mounted on DIN rails.
High reliability: As a communication module, IS220PDOAH1A has high reliability, high stability and high precision, which can meet the communication needs of DCS control system.
It adopts the correct grounding mode to suppress the influence of electromagnetic interference and improve the anti-interference ability of the system.
Protection function: With a variety of protection functions, such as over current protection, over voltage protection and under voltage protection, to ensure the safe and reliable operation of the system.
Application: Suitable for various industrial and commercial fields, such as power, petroleum, chemical industry, etc., especially in the need for high-precision control and protection. Communication and interface: with a variety of communication interfaces, such as serial communication and Ethernet communication, convenient for users to carry out data transmission and remote control.
Support a variety of protocols, such as Modbus, Profibus, etc., easy to integrate and interoperate with other systems.
