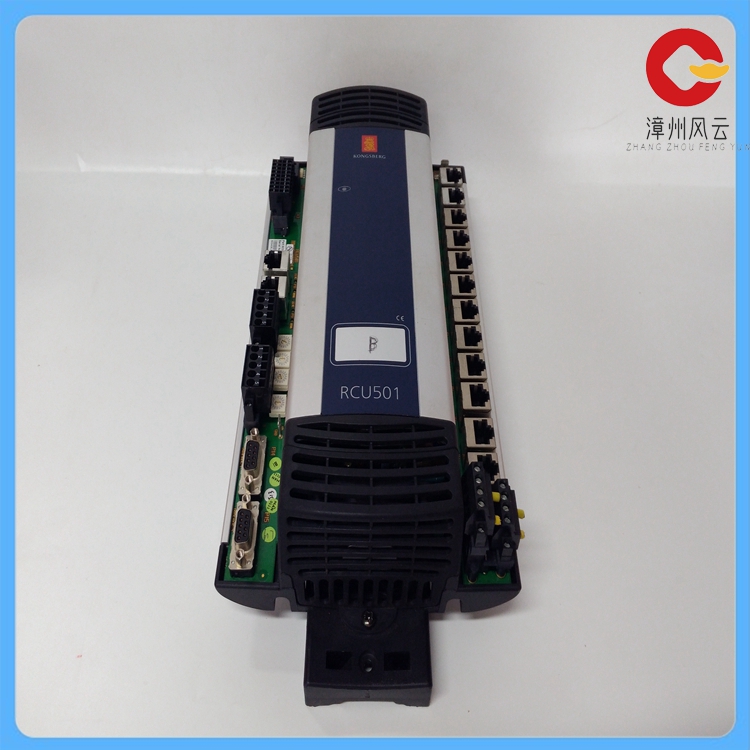

RCU501是一款船舶设备控制模块。其CPU运行速度为400 MHz,为32位CPU。内存方面,它拥有32 MB 64位、133 MHz的SDRAM和ECC,以及16 MB的灰烬存储器。
RCU501模块具有丰富的输入/输出通道,包括20个AI/AO/DI/DO通道,其中AI可以支持电流、电压、PT100或电位计;AO支持电流或电压(仅信道1至16);DI支持无电势或Namur;DO为高压侧驱动器。此外,还有4个继电器输出通道和8个AI/AO通道,±10V。除四个继电器外的所有输入/输出通道的输出通道被回路监控。
RCU501还配备了DSP(数字信号处理器)用于控制RIO,并具有七条通用RS-232/422/485串行线接口,其中两个是隔离的。它还具有单串行过程总线(SPBus)接口、远程输入/输出(RIO)装置、双CAN总线接口(需要适配器卡)和双Pro总线接口(需要适配器卡)。同时,它还支持双以太网LAN接口(10BASE-T/ 100BASE-T)。
RCU501模块的电源输入为24 VDC ± 20%,其功耗最大为20W。其物理尺寸为:高度355mm,宽度158mm,深度87mm,重量为1.35kg。
RCU501作为电源模块时,具有稳定的电压和电流输出,提供过电流保护、过载保护、短路保护等功能,并可能支持远程控制和监控。
RCU501 is a Marine equipment control module. Its CPU runs at 400 MHz and is a 32-bit CPU. In terms of memory, it has 32 MB 64-bit, 133 MHz SDRAM and ECC, and 16 MB of ash memory.
The RCU501 module has a wealth of input/output channels, including 20 AI/AO/DI/DO channels, where AI can support current, voltage, PT100 or potentiometer; AO supports current or voltage (channels 1 to 16 only); DI supports no potential or Namur; DO is a driver on the high voltage side. In addition, there are 4 relay output channels and 8 AI/AO channels, ±10V. The output channels of all input/output channels except four relays are monitored by the loop.
The RCU501 is also equipped with a DSP (digital signal processor) for controlling the RIO and has seven universal RS-232/422/485 serial line interfaces, two of which are isolated. It also has a single Serial process bus (SPBus) interface, remote input/output (RIO) device, dual CAN bus interface (adapter card required), and dual Pro bus interface (adapter card required). It also supports dual Ethernet LAN interfaces (10BASE-T/ 100BASE-T).
The RCU501 module has a power input of 24 VDC ± 20% and a maximum power consumption of 20W. Its physical dimensions are: height 355mm, width 158mm, depth 87mm, weight 1.35kg.
When used as a power module, the RCU501 has stable voltage and current output, provides overcurrent protection, overload protection, short circuit protection and other functions, and may support remote control and monitoring.
