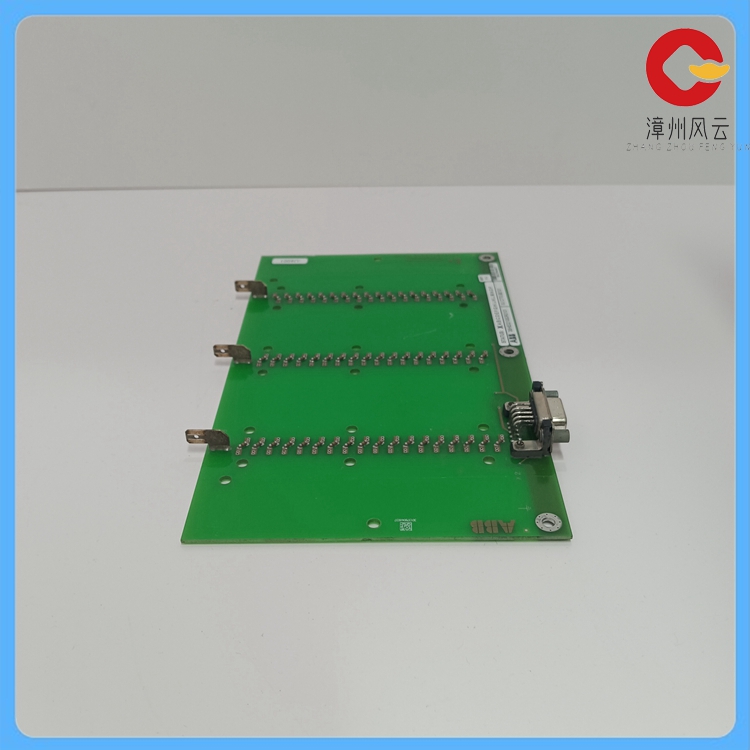

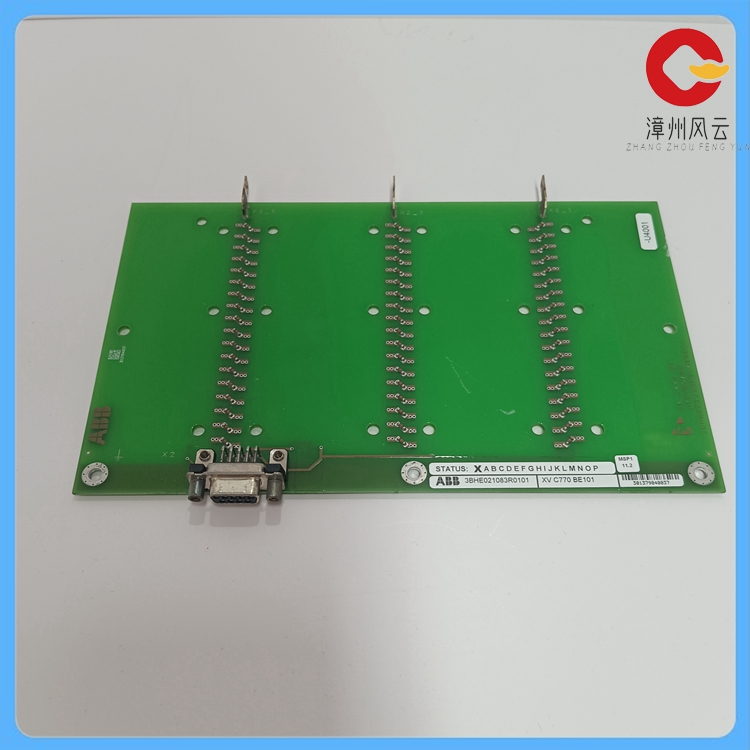

XVC770BE101是一款工业控制模块,其相关参数如下:
安装尺寸:正确安装后,其高度为8.03英寸,深度为5.99英寸,宽度为2.17英寸。这些尺寸信息对于安装和集成到整个系统架构中提供了重要指导。
**HMI (人机界面)**:支持ControlST V07.00.00C或更高版本作为人机界面,有助于模块和操作员之间的交互,实现直观的控制、监控和配置。
内存:模块配备了4 GB DDR3-1333 SDRAM内存,这种存储器通常用于在模块内存储和处理数据,为高效数据管理提供了充足的空间。
以太网端口数量:共有六个以太网端口,其中五个位于前面板上,一个位于模块底部。这些端口有助于模块与网络内其他设备或系统之间的无缝通信和数据交换。
**NVSRAM (非易失性静态随机存取存储器)**:包含3067个非易失性程序变量、64个累加器和338个力。NVSRAM允许模块保留关键信息,即使在断电或系统故障期间也是如此,从而确保数据完整性和可靠性。
平台配置支持的功能:支持EFA(嵌入式功能自动化)、嵌入式EtherCAT(控制自动化技术以太网)和嵌入式PPNG(Predix过程和通知网关)等功能,增强了模块在复杂工业控制系统中的连接性、兼容性和整体性能。
存储温度:设计可承受-40至85摄氏度的广泛存储温度,确保了模块的耐用性和长期可靠性。
XVC770BE101 is an industrial control module with the following parameters:
Installation dimensions: When properly installed, its height is 8.03 inches, depth is 5.99 inches, and width is 2.17 inches. This dimensional information provides important guidance for installation and integration into the overall system architecture.
**HMI (Human Machine Interface)** : Supports ControlST V07.00.00C or later as a human machine interface that facilitates interaction between modules and operators for intuitive control, monitoring, and configuration.
Memory: The module is equipped with 4 GB DDR3-1333 SDRAM memory, which is commonly used to store and process data within the module, providing plenty of space for efficient data management.
Number of Ethernet ports: There are six Ethernet ports, five of which are located on the front panel and one on the bottom of the module. These ports facilitate seamless communication and data exchange between the module and other devices or systems within the network.
**NVSRAM (Non-volatile Static Random Access Memory)** : Contains 3067 non-volatile program variables, 64 accumulators and 338 forces. NVSRAM allows modules to retain critical information, even during power outages or system failures, ensuring data integrity and reliability.
Features Supported by the platform configuration: Features such as EFA (Embedded Functional Automation), embedded EtherCAT (Ethernet for Control Automation Technology), and embedded PPNG (Predix process and Notification Gateway) enhance module connectivity, compatibility, and overall performance in complex industrial control systems.
Storage temperature: Designed to withstand a wide range of storage temperatures from -40 to 85 degrees Celsius, ensuring the durability and long-term reliability of the modules.
