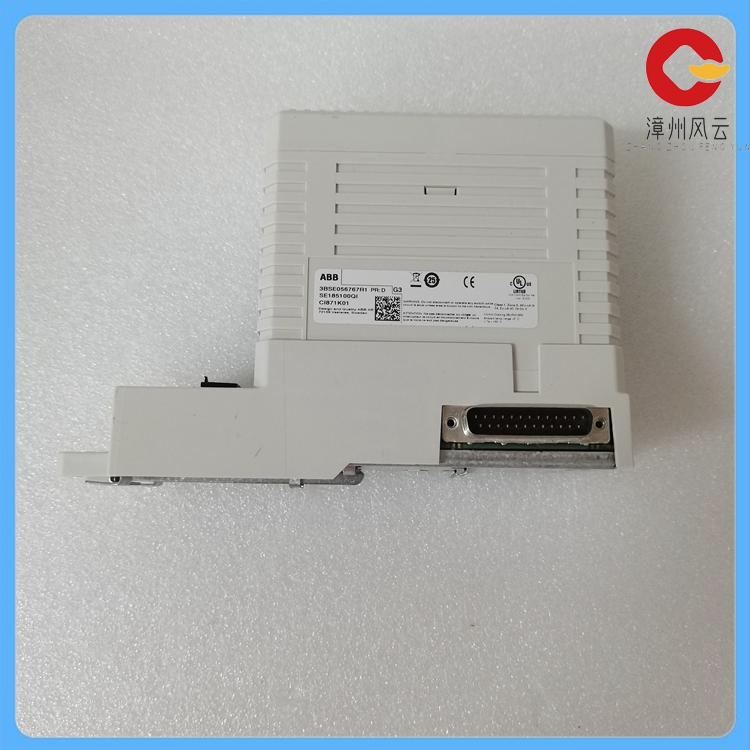

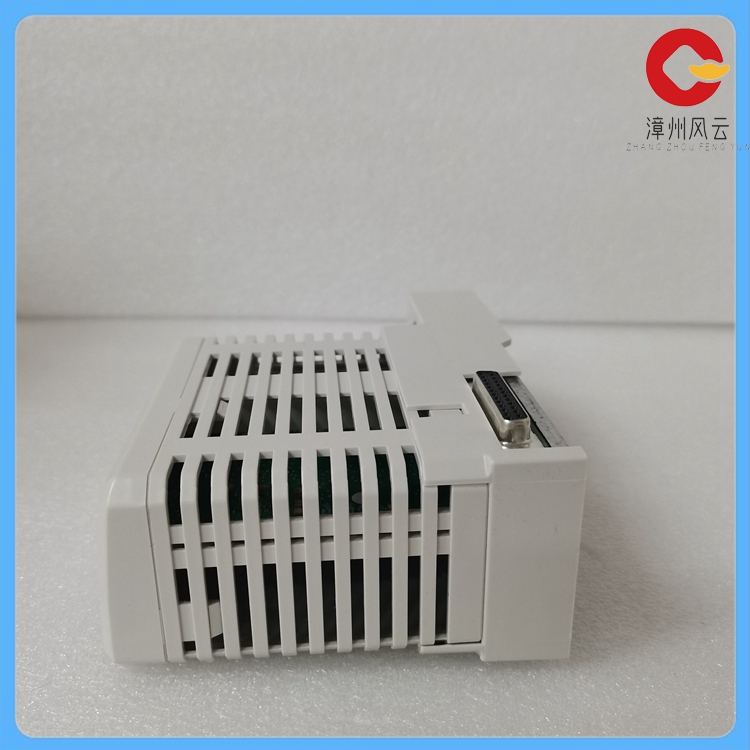

CI871K01 通讯模块

CI871K01是一款用于在有线或无线网络中通信的通讯模块，其相关参数如下：

产品ID与型号：产品ID为3BSE056767R1，型号名称为CI871K01。

通讯接口：具备PROFINET IO接口，该接口具有TP867底板。

传输速度：CI871K01 通信速度支持10 Mbps和100 Mbps，在IEEE 802.3u 10/100 Base-Tx标准中定义。

连接器和端口：使用RJ-45 母头（8 针）作为连接器。

状态指示：具有状态指示灯，正常运行时显示绿色，异常故障时显示红色。

功耗与电流：CI871K01 典型功耗为3.8 W，最大功耗为6 W。电流消耗（来自CEX总线24VDC）为160 mA，最大电流为250 mA。

防护等级：根据EN60529和IEC 529，防护等级为IP20。

尺寸与重量：CI871K01 尺寸为W 59 x H 185 x D 127.5毫米（或W 2.9 x H 7.3 x D 5.0英寸），重量为500克（带包装为700克）。

环境数据：气候操作条件为0至+55°C（存储-40至+70°C）。

CI871K01 is a communication module for communication in wired or wireless networks with the following parameters:

Product ID and Model: Product ID is 3BSE056767R1, model name is CI871K01.

Communication interface: PROFINET IO interface, which has TP867 baseboard.

Transmission speed: The CI871K01 communication speed supports 10 Mbps and 100 Mbps, as defined in the IEEE 802.3u 10/100 Base-Tx standard.

Connectors and ports: Use RJ-45 female head (8 pins) as connectors.

Status indicator: It has a status indicator, which shows green during normal operation and red when abnormal fault occurs.

Power consumption and current: The typical power consumption of the CI871K01 is 3.8W, and the maximum power consumption is 6 W. The current

consumption (from the CEX bus 24VDC) is 160 mA and the maximum current is 250 mA.

Protection Class: IP20 according to EN60529 and IEC 529.

Size and weight: The CI871K01 measures W 59 x H 185 x D 127.5 mm (or W 2.9 x H 7.3 x D 5.0 inches) and weighs 500g (700g with package).

Environmental data: Climate operating conditions are 0 to +55°C (storage -40 to +70°C).
