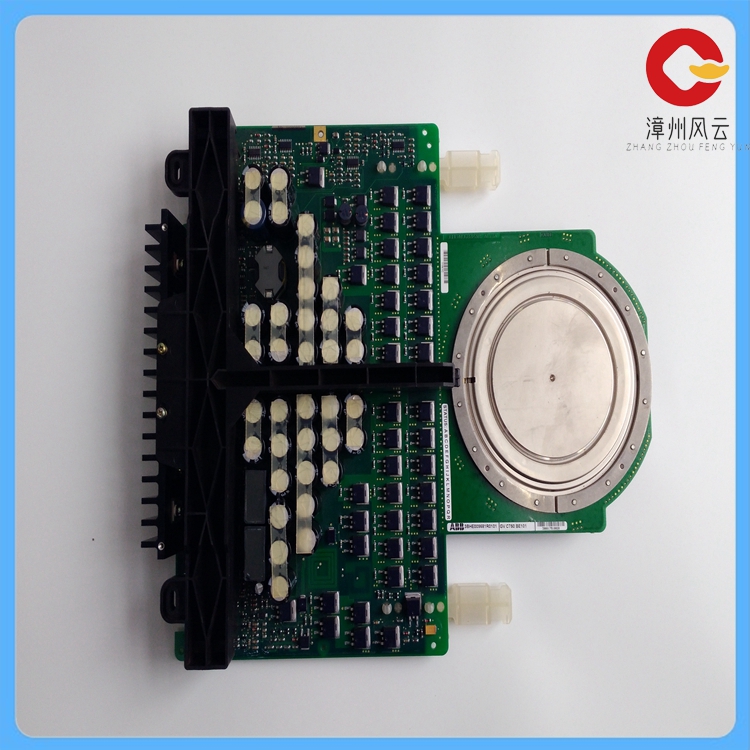

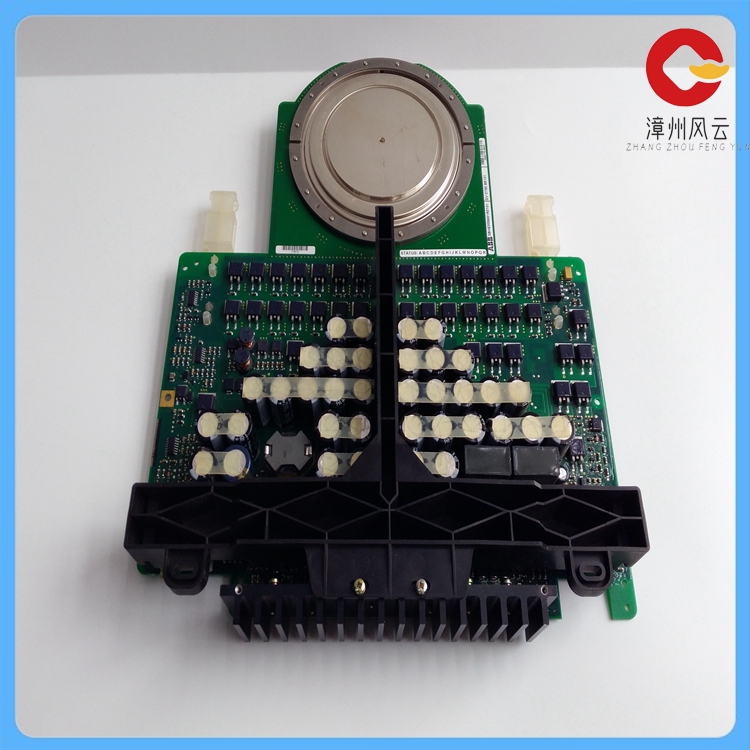

5SHY3545L016 可控硅模块

5SHY3545L016 可控硅模块

5SHY3545L016  性能优势：

高可靠性和稳定性，能够在恶劣环境下运行。

提供可调节的电流和电压控制功能，以满足不同负载的需求。

具有快速的响应时间，能够迅速切换负载电流和电压，满足系统的动态需求。

具备过载和短路保护功能，可以在异常情况下保护负载不受损坏。

5SHY3545L016  通信与接口：

支持标准规范中的预定通信速率，并具有拨码开关手动设置全部标准速率或速率自适应的功能。

支持Profibus DP总线标准，通信速率多样，如9.6kBit/s、187.5kBit/s等。

5SHY3545L016  物理特性与保护：

带有6个双色LED状态指示灯和电源故障继电器输出告警。

具有电接口4000V的防雷、1.5A过流、600W浪涌保护功能。

采用DC9-36V宽冗余双电源，具有DC1500V电源隔离和反接保护功能。

防护等级为IP30，具有波浪纹铝制加强机壳，并符合标准工业35mm导轨安装方式。

5SHY3545L016  应用领域：

主要用于电力和工业应用中的控制和调节。

已被用于电力系统电网装置和中功率工业驱动装置等。

5SHY3545L016 thyristor module

5SHY3545L016 Performance Benefits:

High reliability and stability, able to operate in harsh environments.

Provides adjustable current and voltage control functions to meet the needs of different loads.

With fast response time, it can quickly switch load current and voltage to meet the dynamic needs of the system.

With overload and short circuit protection function, can protect the load from damage in abnormal conditions.

5SHY3545L016 Communication and Interface:

It supports the predetermined communication rate in the standard specification, and has the function of manually setting

all the standard rates or rate adaptive with the dip switch.

Support Profibus DP bus standard, various communication rates, such as 9.6kBit/s, 187.5kBit/s.

5SHY3545L016 Physical Features and Protection:

With 6 two-color LED status indicators and power failure relay output alarms.

With electrical interface 4000V lightning protection, 1.5A overcurrent, 600W surge protection function.

DC9-36V wide redundant dual power supply, with DC1500V power isolation and reverse protection function.

The IP30 protection class features a corrugated aluminum reinforced housing and complies with standard industrial 35mm rail mounting.

5SHY3545L016 Application field:

It is mainly used for control and regulation in power and industrial applications.

It has been used in power system power grid devices and medium power industrial drive devices.
