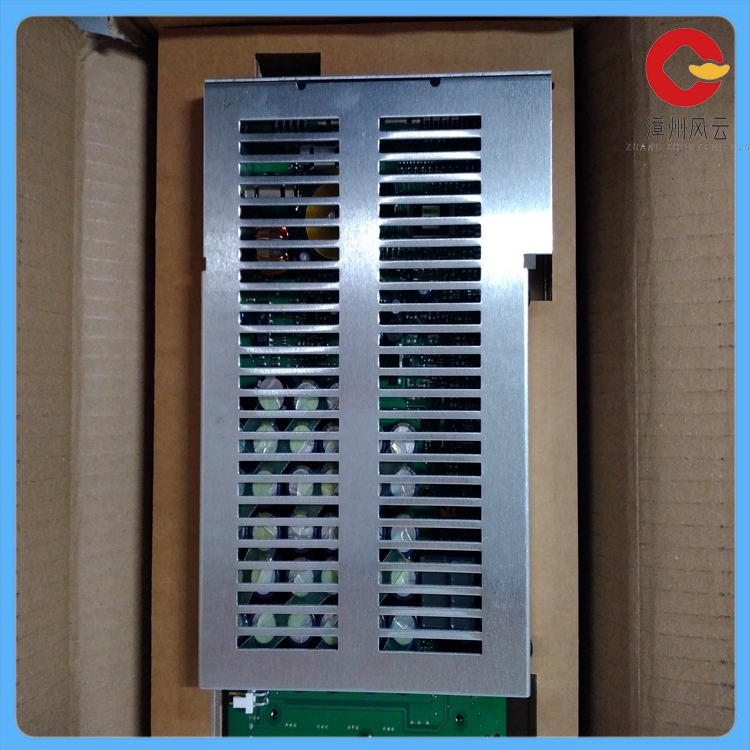

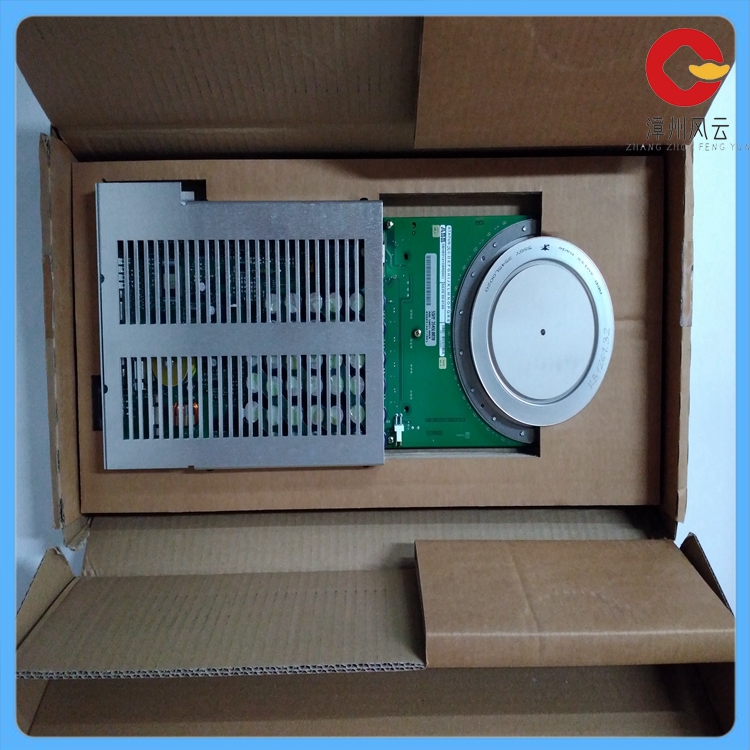

5SHY3545L0020 工控控制模块

5SHY3545L0020 工控控制模块

5SHY3545L0020  额定电压与电流：额定电压为220-240V，额定电流为45A。

频率：50/60Hz。

极数：2P。

分断能力：10kA。

额定剩余工作电流与非工作电流：分别为30mA和15mA。

额定剩余接通/断开能力：500A。

最大放电电流与最大连续工作电压：最大放电电流为20kA，最大连续工作电压为275V AC。

响应时间：小于25纳秒，使其在保护电子设备免受高压瞬态影响方面非常有效。

安装类型：DIN导轨。

5SHY3545L0020 是一款紧凑可靠的浪涌保护装置，专为低压电源系统设计。

在电力电子成套装置中，它被用作新型电力半导体开关器件，具有电流大、阻断电压高、开关频率高、可靠性高、结构紧凑、低导通损耗等特点。

5SHY3545L0020 适用于家用电器集成化，特别是高端电器，如电脑和液晶电视等，能有效保护这些设备免受异常高电压的影响。

5SHY3545L0020 Industrial control module

5SHY3545L0020 Rated voltage and current: Rated voltage is 220-240V, rated current is 45A.

Frequency: 50/60Hz.

Number of poles: 2P.

Breaking capacity: 10kA.

Rated residual working current and non-working current: 30mA and 15mA respectively.

Rated remaining on/off capacity: 500A.

Maximum discharge current and maximum continuous operating voltage: Maximum discharge current is 20kA, maximum continuous operating voltage is 275V AC.

Response time: less than 25 nanoseconds, making it very effective in protecting electronic devices from high-voltage transients.

Mounting type: DIN rail.

The 5SHY3545L0020 is a compact and reliable surge protection device designed for low-voltage power systems.

It is used as a new type of power semiconductor switching device in power electronic equipment. It has the characteristics of large current, high blocking voltage,

 high switching frequency, high reliability, compact structure and low on-loss.

5SHY3545L0020 is suitable for the integration of household appliances, especially high-end appliances, such as computers and LCD TVS, which can effectively protect

 these devices from the influence of abnormally high voltage.
