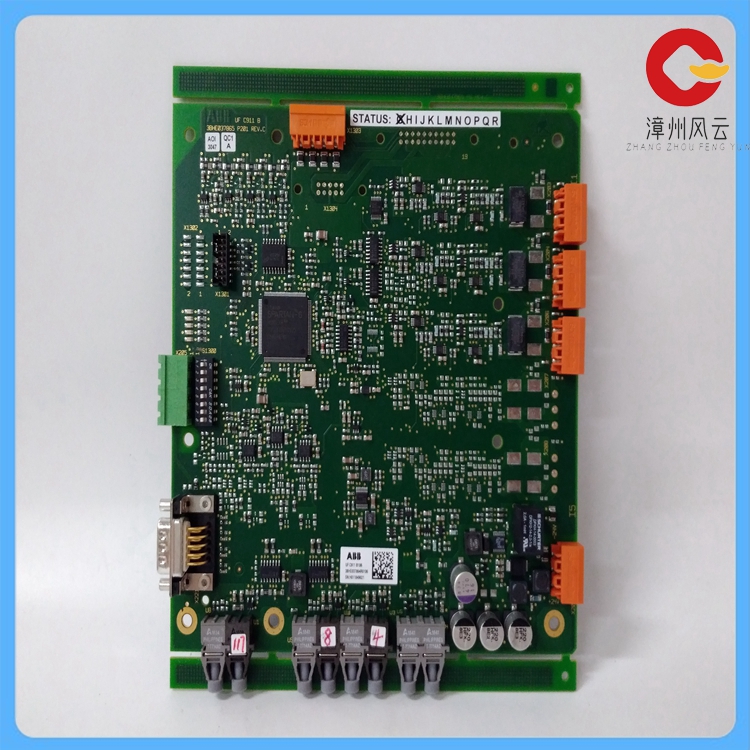

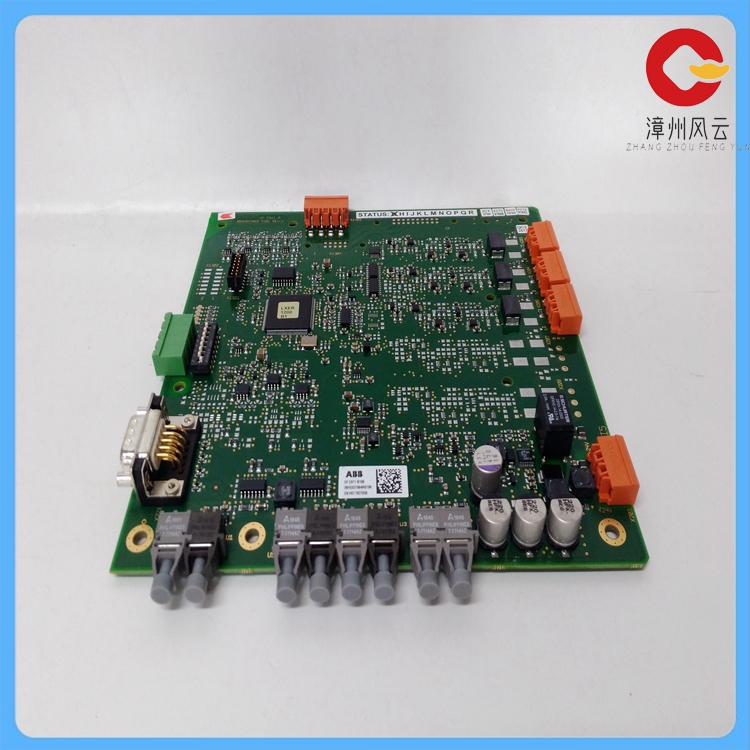

3BHE037864R0106 单轴驱动器

3BHE037864R0106 单轴驱动器

产品性质：

该产品是一个单轴驱动器，特别适用于驱动大功率直流无刷伺服电机。

它支持多种操作模式，如网络指令模式、脉冲/方向模式、+/-10V模拟信号模式和独立运行模式。

该驱动器内置有多种通信接口，包括RS232、RS485和CAN总线，支持多驱动器组网控制。

3BHE037864R0106 电气参数：

供电电压范围为18VDC至160VDC，最大连续电流可达50A。

功能特性：

具有位置控制模式、速度控制模式和电流（转矩）控制模式。

支持温度保护，过流、过压、欠压保护，以及I2t电流限制等功能，具有很高的可靠性。

可以通过MotionStudio软件方便地进行驱动器参数调整、在线监测和实时控制等操作。

支持控制参数保存和报警历史记录保存功能。

集成PLC功能，包括8个光电隔离数字输入、3个光电隔离数字输出、1个+/-10V模拟输入。

内置抱闸驱动电路，可直接连接24V抱闸。

提供上位机动态库MotionLib和指令集说明，用于上位机应用程序编写。

3BHE037864R0106 应用领域：

该驱动器在工业自动化、能源管理、交通系统、建筑自动化、数据中心、物流和供应链、环境监测以及制造业等多个领域都有广泛的应用。

其他特性：

可以控制1-8轴步进电机或伺服电机，甚至两者的任意组合。

具有高速通讯和非易失性程序存储器等更强大的特性。

还包括PID补偿算法，可同时执行8个应用程序，以及与外部事件同步执行的I/O功能

3BHE037864R0106 single-axis drive

Product nature:

The product is a single axis driver, especially suitable for driving high power DC brushless servo motors.

It supports multiple modes of operation, such as network command mode, pulse/direction mode, +/-10V analog signal mode and independent operation mode.

The driver has a variety of built-in communication interfaces, including RS232, RS485 and CAN bus, support multi-driver networking control.

3BHE037864R0106 Electrical Parameters:

The supply voltage ranges from 18VDC to 160VDC, and the maximum continuous current can reach 50A.

Functional features:

It has position control mode, speed control mode and current (torque) control mode.

Support temperature protection, over current, over voltage, under voltage protection, and I2t current limit and other functions, with high reliability.

The MotionStudio software enables easy adjustment of drive parameters, on-line monitoring and real-time control.

Support control parameter saving and alarm history saving functions.

Integrated PLC function, including 8 photoelectric isolation digital input, 3 photoelectric isolation digital output, 1 +/-10V analog input.

Built-in lock drive circuit, can be directly connected to 24V lock.

Provides host computer dynamic library MotionLib and instruction set description for host computer application programming.

3BHE037864R0106 Application Field:

The drive has a wide range of applications in industrial automation, energy management, transportation systems, building automation, data centers, logistics

and supply chain, environmental monitoring, and manufacturing.

Other features:

Can control 1-8 axis stepper motor or servo motor, or even any combination of the two.

More powerful features such as high-speed communication and non-volatile program memory.

Also included are PID compensation algorithms that can execute up to eight applications simultaneously, and I/O capabilities that synchronize with external events.
