3BHE035301R1002 模拟量模块

3BHE035301R1002 模拟量模块

模块类型与功能：

该模块的模拟量模块，属于迁移模块系列，具有竞争力。描述为1010励磁控制模块，可能用于控制或调节励磁系统。

该模块具有多种通信接口和协议支持，便于与其他设备或系统进行数据交换和通信。

通信与网络：

支持2 MBPS-HDLC现场总线以及268 KBPS HDLC现场总线。

提供了大量的内存分配和块处理功能，用于处理不同类型的块（如控制块、ECB、化合物、数据块等）。

规格与尺寸：

具体的物理尺寸可能因具体应用场景或定制需求而有所不同，但在某些描述中提到了130-210的规格尺寸范围，这可能是某个特定参数的范围，而不是模块的实际物理尺寸。

电源与电磁兼容性：

模块的输入电压为24V dc，每个非容错模块的消耗为8.5W。

该模块符合电磁兼容性标准，如EN61326-1:2013 A级排放和工业免疫水平，并满足RoHS指令2011/65/EU的要求。

3BHE035301R1002 Analog module

Module types and functions:

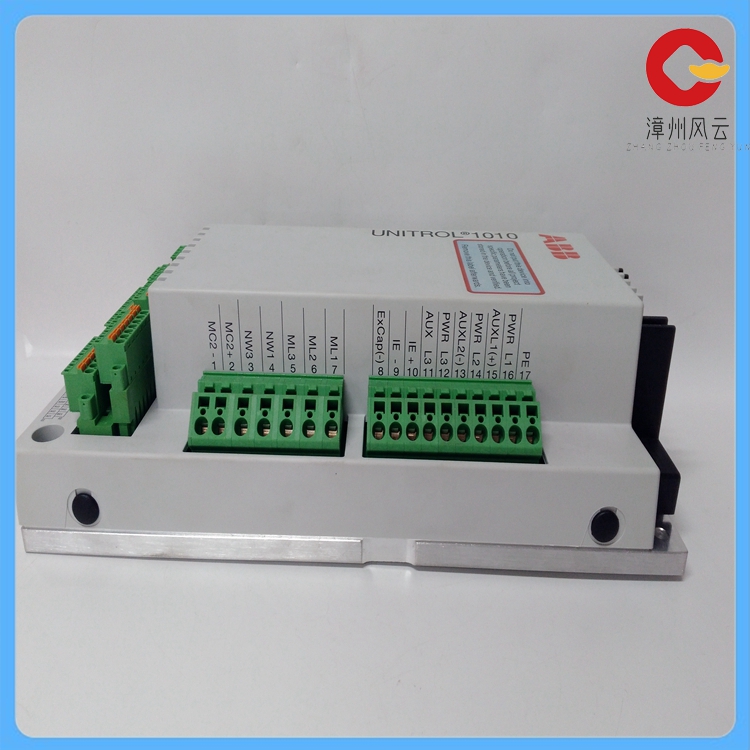

The analog module of this module belongs to the migration module series and is competitive. Described as a 1010 excitation control module that may be used to control or regulate an excitation system.

The module has a variety of communication interfaces and protocols to facilitate data exchange and communication with other devices or systems.

Communication and Network:

Support 2 Megabits per second (MBPS) HDLC fieldbus and 268 KBPS HDLC fieldbus.

A large number of memory allocation and block handling capabilities are provided for handling different types of blocks (such as control blocks, ECB, compounds, data blocks, etc.).

Specifications and Dimensions:

The exact physical size may vary depending on the specific application scenario or customization needs, but in some descriptions a specification size range of 130-210 is mentioned, which

may be the range of a specific parameter rather than the actual physical size of the module.

Power and electromagnetic compatibility:

The input voltage of the modules is 24V dc and the consumption of each non-fault-tolerant module is 8.5W.

The module complies with electromagnetic compatibility standards such as EN61326-1:2013 Class A emissions and industrial immunity levels and meets the requirements of RoHS Directive 2011/65/EU.
