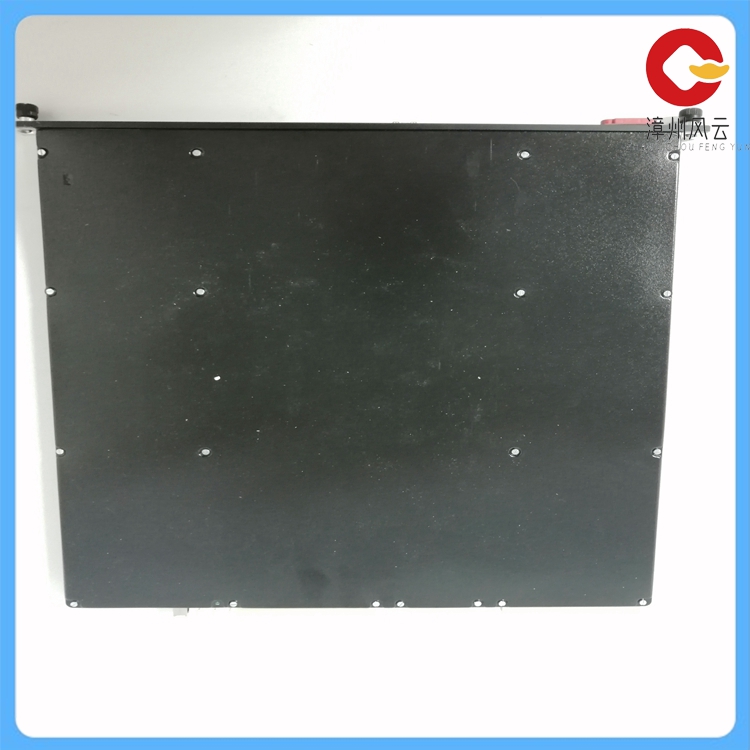

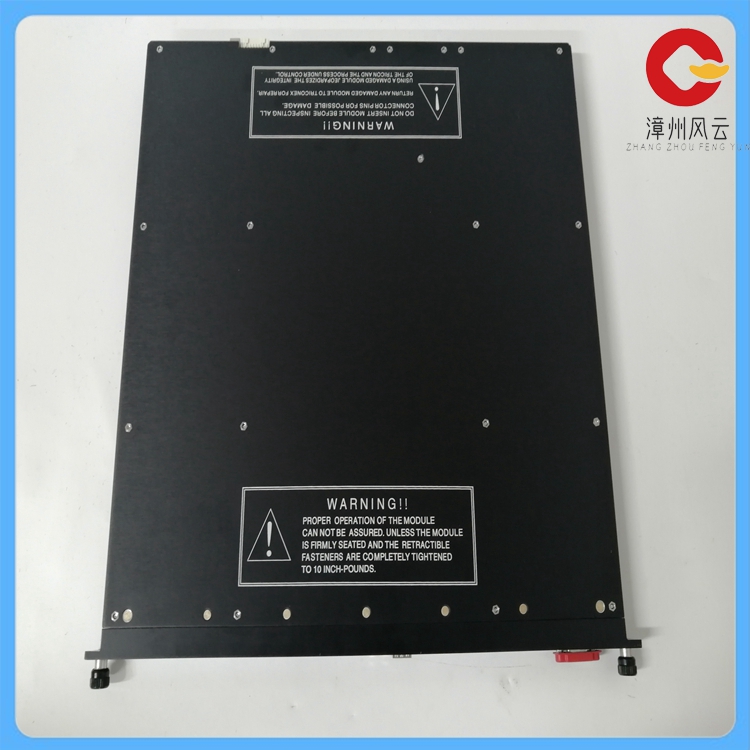

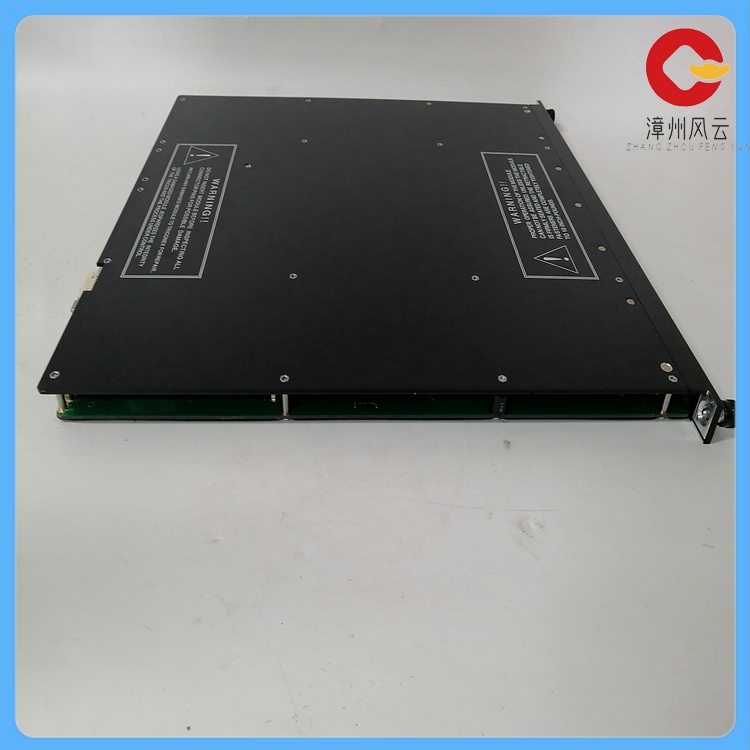

3009 主处理器模块

概述

基本细节:TRICONEX 3009X 3009增强型主处理器(UMP)模块

TRICONEX 3009增强型主处理器(UMP)模块是可编程的。具有以下特点的容错过程控制技术。三模块冗余结构(TMR)由三个相同的子电路组成，每个子电路具有独立的控制权。同时，专门的硬件/软件架构用于对输入和输出进行“投票”。能够承受恶劣的工业环境。可现场安装。支持多达118个1/0模块，模拟和数字和光通信模块。通信模块可以连接到MODBUS主机和二次主机，也可以连接到Foxor和Honewe分布式控制系统的对等网络。tcp网络上的其他TRicoN设备和外部主机

它可以支持距离主机最远12公里的远程i /O模块。

使用基于Windows NT系统的编程软件开发和调试控制程序。输入输出模块具有智能化功能，减少了主处理器的工作量。每个VO模块有三个微处理器。输入模块的微处理器负责过滤和修复输入数据，并诊断模块上的硬件故障。输出模块的微处理器提供输出数据的电压信息，并通过输出的反馈回路电压检查输出状态的有效性，还可以诊断励磁电路的问题。

提供全面的在线诊断和修复功能

在TRICON启动和运行过程中，无需中断控制过程即可进行例行维护。对/0模块提供“不待机”支持，可用于某些无法及时提供服务的紧急情况。

TRICONEX 3009 处理器模块是一款功能强大的处理器模块，被广泛应用于工业自动化和控制系统中，特别是在对高可靠性和安全性有严格要求

点:

高可靠性:TRICONEX 3009 处理器模块以其出色的可靠性和稳定性而闻名，能够确保系统的长时间稳定运行，降低故障风险.重容错(TMR)架构:该模块采用了三重容架构，具有三个完全独立的处理器模块。这种设计可以在出现误时自动进行几余切换，以保限安全性:TRICONEX 3009 处理器模块在关键性的安全应用中使用广泛，如化工厂、核电站等。其处理器模块具有严格的安全和故障检测机制，电

模块化设计:TRICONEX 3009 采用模块化设计，使得系统的安装、维护和升级更加便捷，这种设计也降低了维修成本，提高了系统的可维护性可编程功能:该处理器模块具有可编程功能，可以通过软件进行参数设置和调试。这使得用户可以根据实际需求灵活调整系统配置，满足不同应虽大的诊断功能:TRICONEX 3009 处理模块提供了全面的在线诊断功能，并具有修理能力。这有助于及时发现并解决系统中的故境和问题泛的应用领域:由于其高可靠性和关键性的特点，TRICONEX 3009 处理器模块被广泛应用于石油、天然气、电力和其他领域的控制系统中.总之，TRICONEX 3009 处理器模块是一款功能强大、可靠、安全的处理器模块，适用于各种工业自动化和控制系统的应用场景

summarize

Basic details :TRICONEX 3009X 3009 Enhanced Main Processor (UMP) module

The TRICONEX 3009 Enhanced Main Processor (UMP) module is programmable. The fault-tolerant process control technology has the following characteristics. A three-module redundant structure (TMR) consists of three identical subcircuits, each with independent control. At the same time, specialized hardware/software architectures are used to "vote" on inputs and outputs. Able to withstand harsh industrial environments. Can be installed on site. Supports up to 118 1/0 modules, analog and digital and optical communication modules. Communication modules can be connected to MODBUS hosts and secondary hosts, as well as to peer-to-peer networks of Foxor and Honewe distributed control systems. Other TRicoN devices and external hosts on the tcp network

It can support remote i /O modules up to 12 km from the host.

Develop and debug control programs using programming software based on Windows NT systems. The input and output module has intelligent function, which reduces the workload of the main processor. Each VO module has three microprocessors. The input module's microprocessor is responsible for filtering and repairing the input data and diagnosing hardware failures on the module. The microprocessor of the output module provides voltage information of the output data, and checks the validity of the output state through the output feedback loop voltage, and can also diagnose the problem of the excitation circuit.

Provides comprehensive online diagnostic and repair capabilities

Routine maintenance can be performed without interrupting the control process while TRICON is up and running. The /0 module provides "standby" support, which can be used in certain emergency situations where service cannot be provided in time.

The TRICONEX 3009 processor module is a powerful processor module that is widely used in industrial automation and control systems, especially where high reliability and safety are required

Points:

High reliability: The TRICONEX 3009 processor module is known for its excellent reliability and stability, ensuring long-term stable operation of the system and reducing the risk of failure. Fault Tolerance (TMR) architecture: This module uses a triple capacity architecture with three fully independent processor modules. This design allows automatic switching in the event of error to ensure maximum safety: The TRICONEX 3009 processor module is widely used in safety-critical applications, such as chemical plants and nuclear power plants. Its processor modules have strict safety and fault detection mechanisms, electrical

Modular design: The TRICONEX 3009 adopts a modular design that makes installation, maintenance and upgrade of the system more convenient, which also reduces maintenance costs and improves system maintainability. Programmable features: The processor module has programmable features that can be set and debuggable through software. This allows the user to flexibly adjust the system configuration to meet the actual needs of different diagnostic functions: the TRICONEX 3009 processing module provides comprehensive online diagnostic functions and repair capabilities. This enables the timely detection and resolution of problems and problems in a wide range of application areas: Due to its high reliability and critical characteristics, the TRICONEX 3009 processor module is widely used in control systems in oil, gas, power and other fields. In summary, the TRICONEX 3009 processor module is a powerful, reliable and safe processor module for a variety of industrial automation and control system applications
