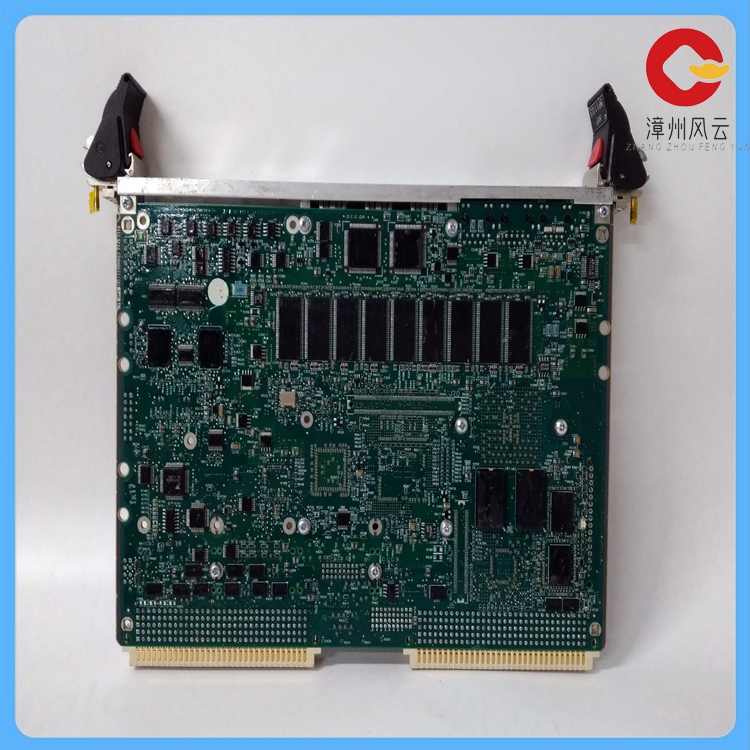

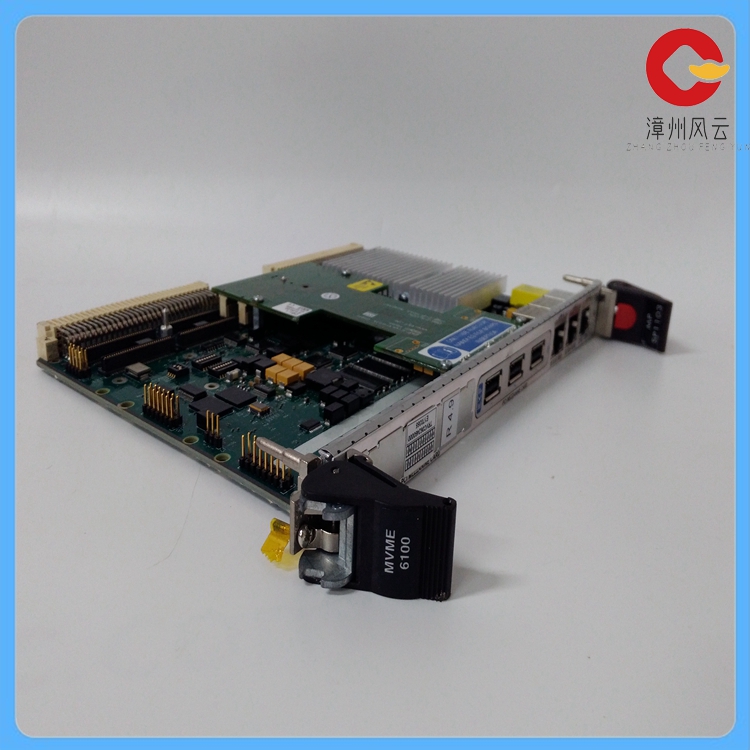

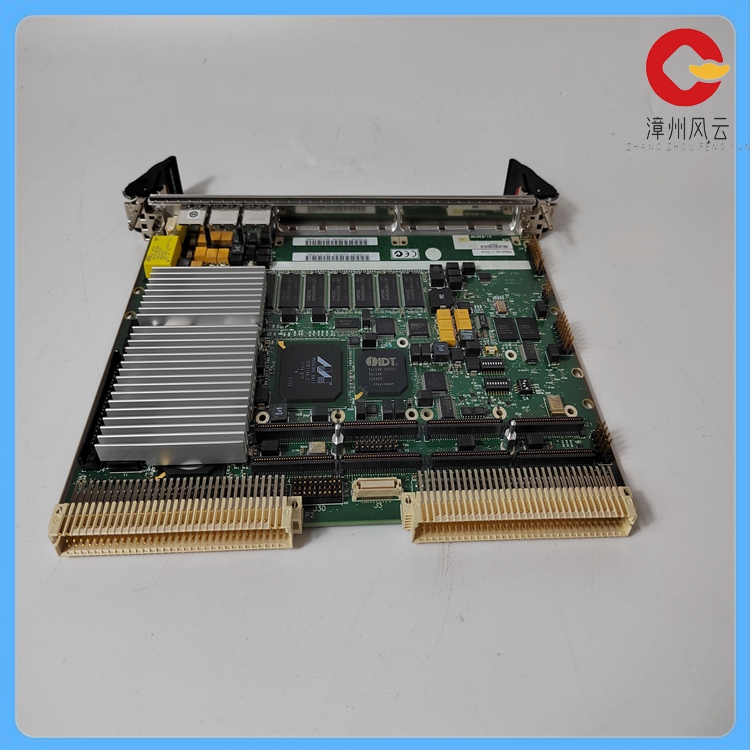

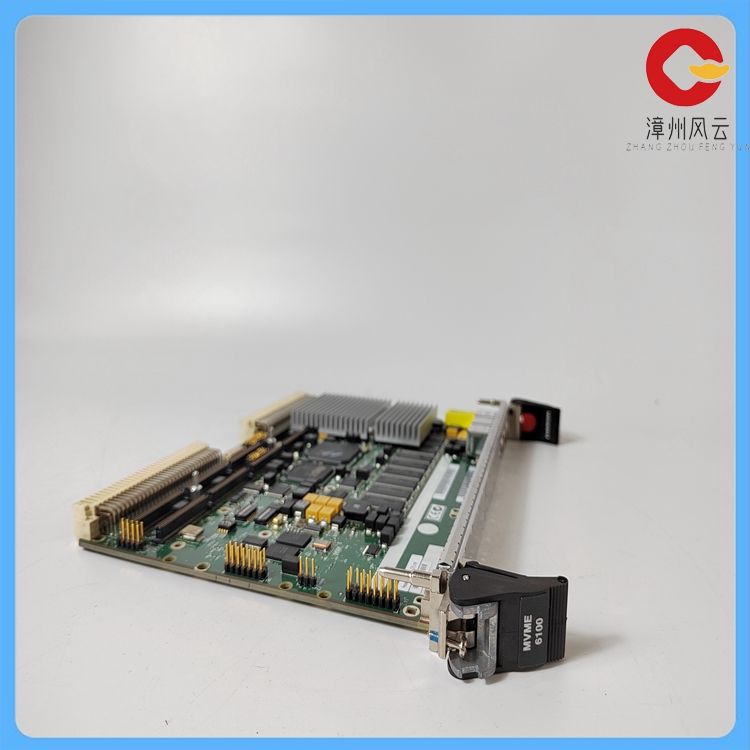

MVME6100-0161 单槽单板计算机

MVME6100系列是首款采用TundraTsi148 VMEbus接口芯片规划的VMEbus板，供给双边际源同步传输(2eSST)VMEbus性能。在大多数情况下，2eSST协议使VMEbus能够以320MMB/S的实际带宽运转。
从处理器、内存子系统、本地总线和/O子系统供给平衡的性能。
MPC7457 PowerPC处理器，运转频率高达1.267 GHZ
用于并行处理的128位AltiVec协处理器，是数据密集型应用的抱负挑选
2eSST VMEbus协议，跨VMEbus的传输速率为320MB/S

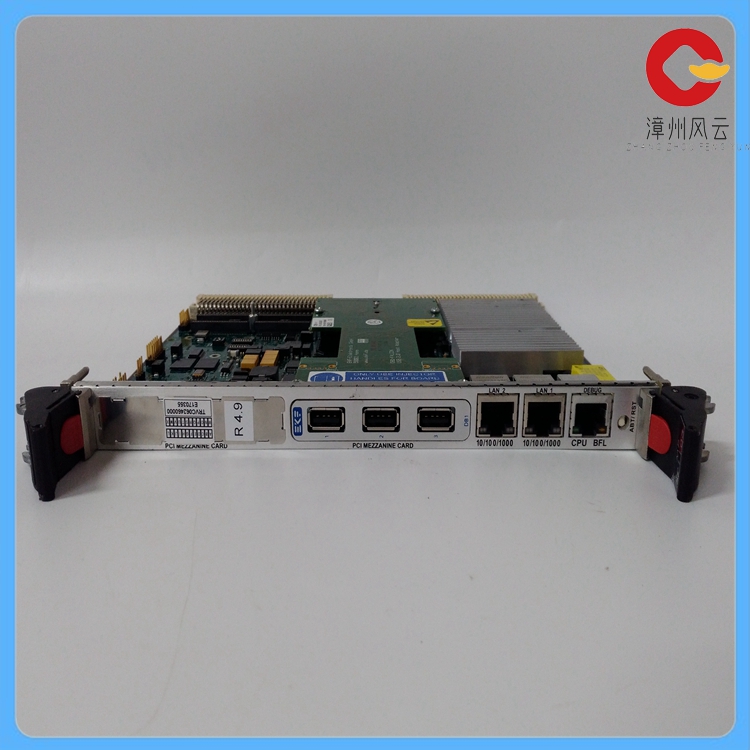

MVME6100是一款单槽单板计算机，根据MPC7457处理器、MV64360系统控制器、Tsi148 VME Bridge ASIC、高达1gb ecc保护的DDR DRAM、高达128MB的闪存和双千兆以太网接口。MVME6100板上的前面板连接器包括:两个千兆以太网RJ-45连接器，一个异步串口RJ-45连接器，集成了BRDFAIL和CPU运转指示Ied，以及一个组合复位和中止开关。

The MVME6100 series is the first VMEbus board designed with the TundraTsi148 VMEbus interface chip, providing dual marginal Source Synchronous transmission (2eSST)VMEbus performance. In most cases, the 2eSST protocol enables the VMEbus to operate at the actual bandwidth of 320MMB/S.

Provide balanced performance from the processor, memory subsystem, local bus, and /O subsystem.

The MPC7457 PowerPC processor runs at up to 1.267 GHZ

The 128-bit AltiVec coprocessor for parallel processing is the ideal choice for data-intensive applications

2eSST VMEbus protocol, the transmission rate across VMEbus is 320MB/S

The MVME6100 is a single-slot single-board computer based on the MPC7457 processor, MV64360 system controller, Tsi148 VME Bridge ASIC, DDR DRAM with up to 1gb ecc protection, flash memory with up to 128MB and dual Gigabit Ethernet interfaces. The front panel connectors on the MVME6100 board include: two Gigabit Ethernet RJ-45 connectors, an asynchronous serial port RJ-45 connector with integrated BRDFAIL and CPU operation indicator Ied, and a combined reset and abort switch.
