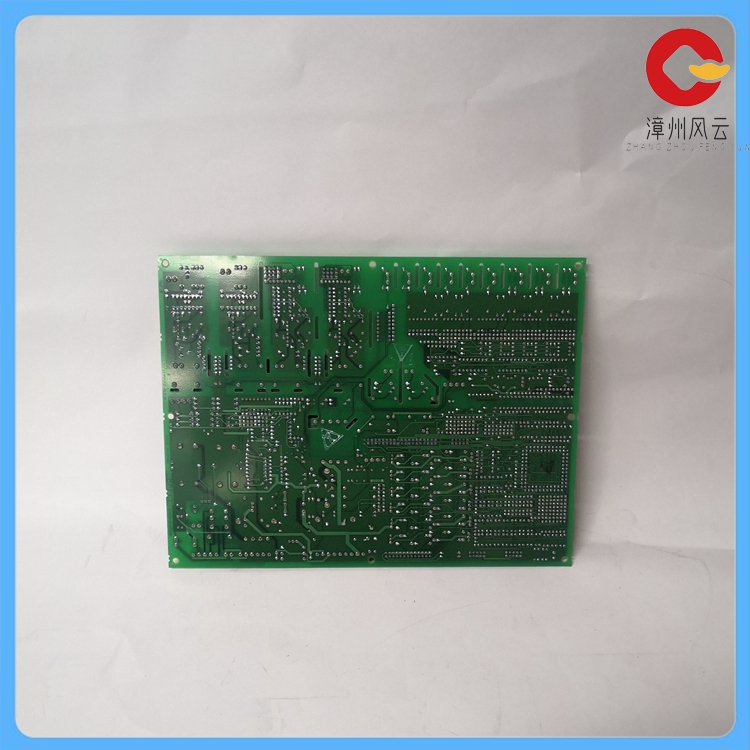

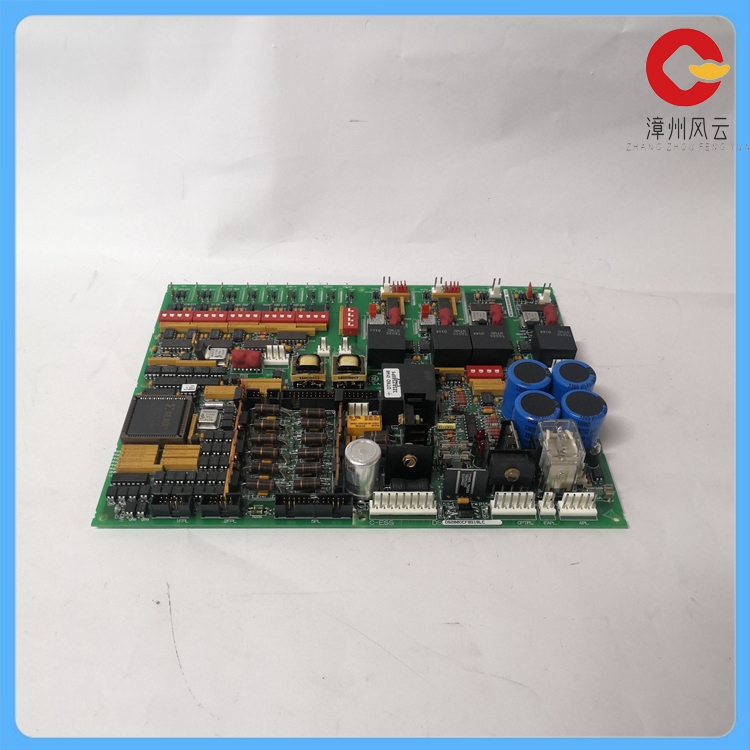

DS200DCFBG1B是一种通用电气卡件，特别为Mark V板系列生产。这种电源板具有多种功能和应用。首先，它可以为驱动器提供控制级电源和机柜风扇电源。此外，它还具有额定电压在38到115VAC之间的能力，并通过控制电源变压器直接为电路板供电。其频率范围取决于输入电压，但可以在0到500kHz之间变化。
DS200DCFBG1B包含多种电路，如电机励磁电源、驱动器、AC/DC监控和控制级电源电路，用于为板和安装的驱动器供电。此外，电路板上的跳线和DIP开关为用户提供了可配置的系统选项，保险丝开关诊断则通过电路板上的LED和霓虹灯进行显示。
此电源板还具有多种保护功能，例如过载保护、过热保护等，以确保系统的安全运行。在正常运行期间，电源板上的LED指示灯可以显示电源状态，如输出正常或输出低。
在安装和使用DS200DCFBG1B时，应严格遵循制造商提供的安装和存储参数，以防止对设备造成任何意外损坏。同时，建议参考设备手册和数据表以获取详细的接线和安装指南。
The DS200DCFBG1B is a General Electric card, specially produced for the Mark V board series. This power supply board has a variety of functions and applications. First, it can provide control level power to the drive and cabinet fan power. In addition, it has the ability to have a rated voltage between 38 and 115VAC and power the board directly via a control power transformer. The frequency range depends on the input voltage, but can vary between 0 and 500kHz.
The DS200DCFBG1B contains a variety of circuits such as motor excitation power supply, drivers, AC/DC monitoring and control level power supply circuits for powering the board and mounted drivers. In addition, jumpers and DIP switches on the board provide users with configurable system options, and fuse switch diagnostics are displayed via leds and neon lights on the board.
The power board also has a variety of protection functions, such as overload protection, overheat protection, etc., to ensure the safe operation of the system. During normal operation, the LED indicator on the power supply board can show the power status, such as normal output or low output.
When installing and using the DS200DCFBG1B, the installation and storage parameters provided by the manufacturer should be strictly followed to prevent any accidental damage to the equipment. You are also advised to refer to the device manuals and data sheets for detailed wiring and installation guides.
