DS200FCGDH1B 输出输入模块

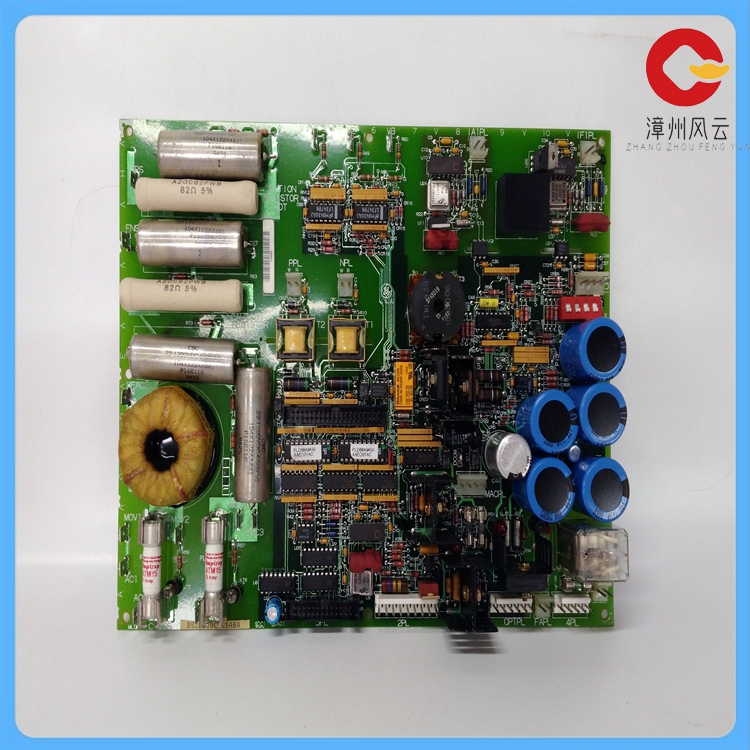

GE DS200FCGDH18 是一款用于六脉冲中相位操控的门分配和状态卡(FCGD)的输出输入模块。这款模块由通用电气为其 MarkV板系列开发，可以牌的驱动器中。
DS200FCGDH18 充当六脉冲中相位操控不可逆桥的接口体系。当安装到驱动体系中时，该板对相控不可逆桥体系提供接口。DSPC(数字信号处理卡)
进行解密，然后信息被解码并从驱动器的 VME 背板反应回来。具体来说，DS200FCGDH18 接纳来自每个桥腿的复用单元状态信号，并对每个桥腿的单元门控信号进行解码和去分配。此外，它还接纳桥路反应信号然后将电压、频率和电流状态数据传送回 DSPC 板。
DS200FCGDH18 包含一个附加的前面板，具有两个夹子组件，可在模块刺进驱动器后将其固定到位。它还具备一个 IMOKLED 状态指示灯，为用户#态信息。
产品参数
类型:DS200FCGDH1B
·输入电压:15VDC
输出电压:24VDC
最大输出功率:120W
工作温度:-20°C至+70°C尺寸:150mmx100mmx50mm

Decryption is performed, and then the information is decoded and reflected back from the VME backplane of the drive. Specifically, the DS200FCGDH18 accepts the multiplexed cell status signals from each leg and decodes and dedistributes the cell gated signals from each leg. In addition, it accepts the bridge response signal and transmits voltage, frequency, and current status data back to the DSPC board.

The DS200FCGDH18 contains an additional front panel with two clip assemblies that hold the module in place after it has been stabbed into the drive. It also has an IMOKLED status indicator that gives the user status information

The GE DS200FCGDH18 is an output input module for gate distribution and status card (FCGD) for phase control in six pulses. The module was developed by GE for its MarkV board family and can be used in branded drives.

The DS200FCGDH18 acts as an interface system for the phase-controlled irreversible bridge in six pulses. When installed into the drive system, the board provides an interface to the phase-controlled irreversible bridge system. DSPC(Digital Signal Processing Card)

.

Product parameter

Type :DS200FCGDH1B

· Input voltage :15VDC

Output voltage :24VDC

Maximum output power :120W

Operating temperature :-20°C to +70°C Size :150mmx100mmx50mm
