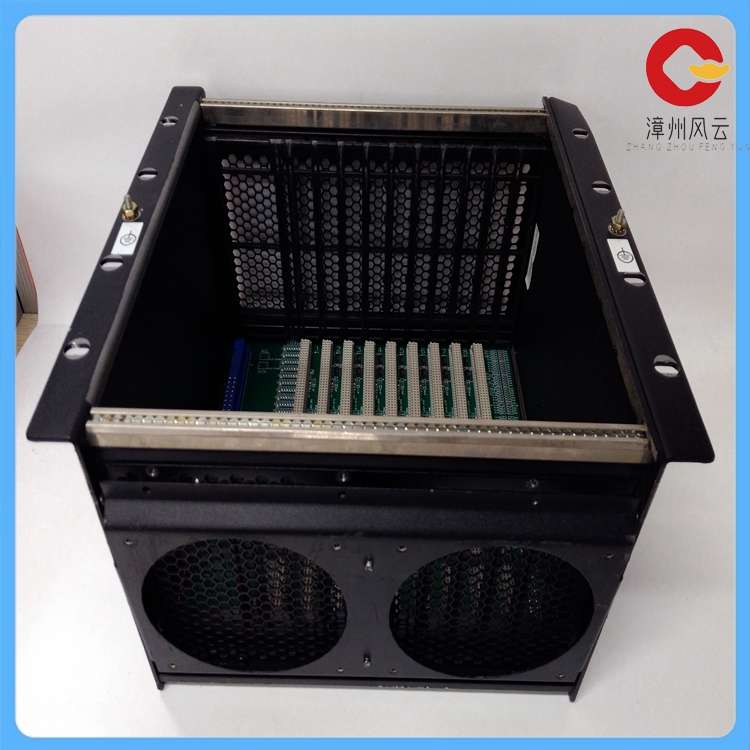

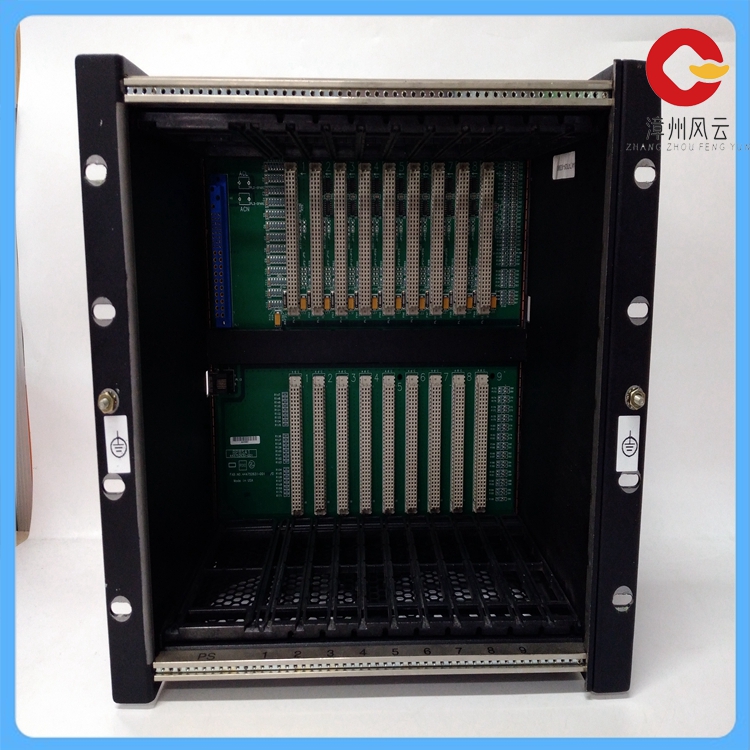

IC698CHS009A是一款PLC模块，属于紧急保护端子板，用于燃气轮机控制系统VIe系列。
它的一些关键参数和特性如下：
功能：作为紧急保护端子板，它主要应用在燃气轮机控制系统VIe系列中。PPRO或YPRO的I/O包托管在紧急保护（SPRO）端子板上，包括两个用于总线和发电机电压输入的电压互感器（PTS）以及用于I/O包的条件速度信号输入。
它具有一个DC-37针连接器，可连接至端子板的电缆以作为备用跳闸继电器。
中央处理单元（CPU）功能：作为PLC的控制中枢，它接受并存储从编程器键入的用户程序和数据，检查电源、存储器、I/O以及警戒定时器的状态，并能检查用户程序的语法错误。
它在运行时以扫描的方式接受现场各输入装置的状态和数据，并分别存入I/O映象区，然后从用户程序存储器中逐条读取用户程序，按照指令执行逻辑或算术运算等任务，并将结果送入I/O映象区或数据寄存器内。
工作环境：IC698CHS009A安装时需要考虑环境是否满足PLC的使用要求，不应安装在含有腐蚀性气体、阳光直接照射、温度急剧变化、易侵入油水化学物质、有大量灰尘或振动大的地方。
其他参数：工作温度范围为0到60摄氏度。
总尺寸为283×320×190毫米。
The IC698CHS009A is a PLC module belonging to the emergency protection terminal board for the VIe series of gas turbine control systems.
Some of its key parameters and features are as follows:
Function: As an emergency protection terminal board, it is mainly used in the VIe series of gas turbine control systems. The PPRO or YPRO I/O package is hosted on an Emergency Protection (SPRO) terminal board and includes two voltage transformers (PTS) for the bus and generator voltage inputs and conditional speed signal inputs for the I/O package.
It has a DC-37 pin connector that connects a cable to the terminal board to serve as a backup trip relay.
Central processing unit (CPU) function: as the control center of the PLC, it accepts and stores the user programs and data entered from the programmer, checks the status of the power supply, memory, I/O and alarm timer, and can check the syntax errors of the user program.
It accepts the status and data of each input device in the field in the way of scanning during operation, and stores it into the I/O image area respectively, and then reads the user program one by one from the user program memory, performs tasks such as logic or arithmetic operations according to instructions, and sends the results into the I/O image area or data register.
Working environment: IC698CHS009A installation needs to consider whether the environment meets the requirements of PLC use, should not be installed in a place containing corrosive gases, direct sunlight, rapid temperature changes, easy to invade oil and water chemicals, there is a lot of dust or vibration.
Other parameters: Operating temperature range from 0 to 60 degrees Celsius.
The total size is 283×320×190 mm.
