产品描述
HYDRAN M2模块选用先进的传感器技术,可精确丈量和剖析变压器油中的溶解气体,如氢、氧、一氧化碳和二氧化碳。经过监测这些气体,它能够辨认反常水平和趋势,标明变压器内部的潜在问题。产品参数
-丈量规模:氢气(H2):0-10,000 ppm;氧(02):0-1000ppm;一氧化碳(CO):0-1000ppm;二氧化碳(C02):0-2000ppm-取样办法:从变压器油中直接取样-通讯接口:Modbus RTU、RS485
电源:100-240vac,50/60hz
-工作温度:-20℃℃~ +70℃℃
产品描述
HYDRAN M2 GE变压器监测设备监测和评价变压器的运转状态,保证变压器的安全、牢靠和高效运转。
特征
氢气传感器对氢气(一般毛病气体)呼应100%
复合气体传感器对氢气100%呼应,对二氧化碳(过热纸绝缘体)也灵敏。
最多可选择4个输入或输出卡
广泛的通讯办法和协议。
标准RS485输出。TCP/IP铜缆或光纤可选
耐真空气体提取膜。
内置温度调节体系。
完好的体系自检和自确诊。

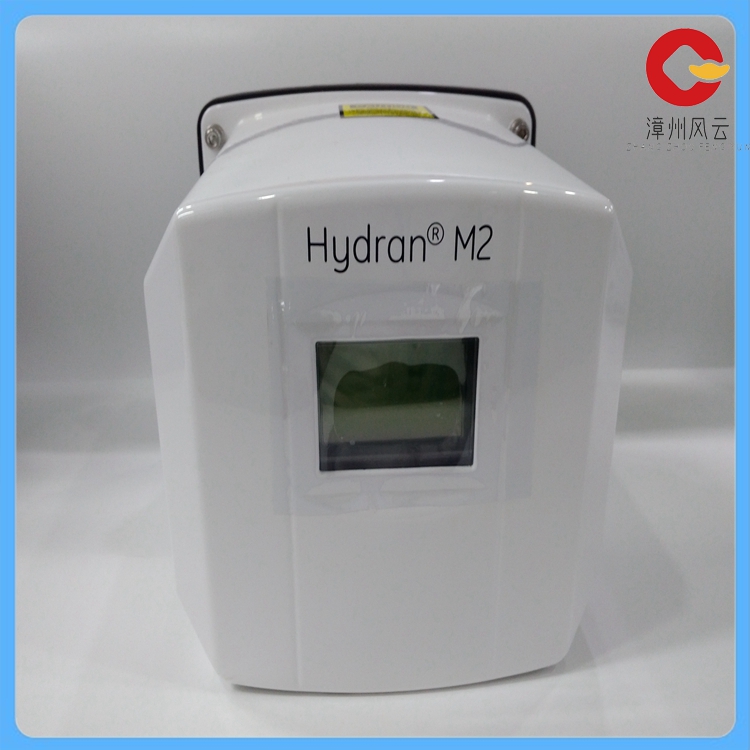

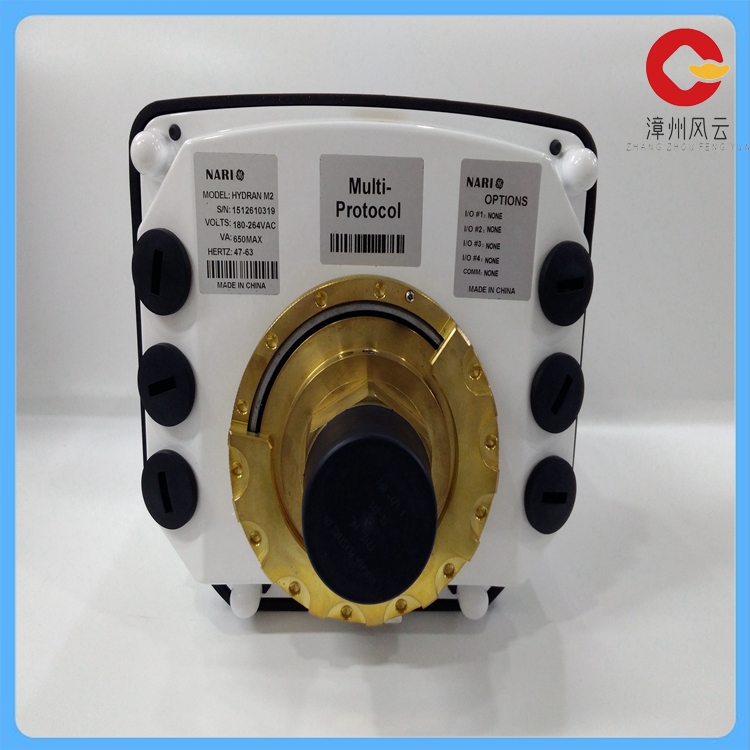

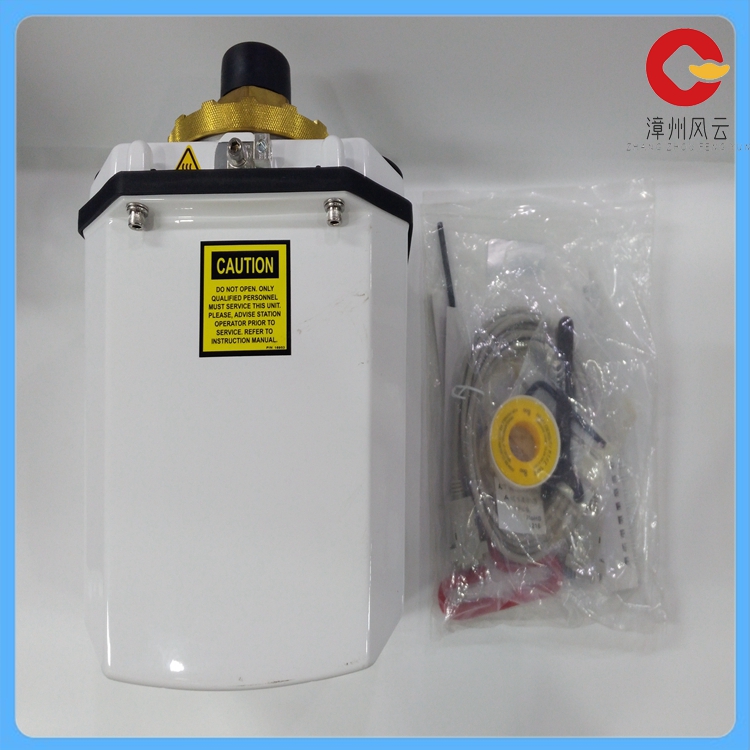

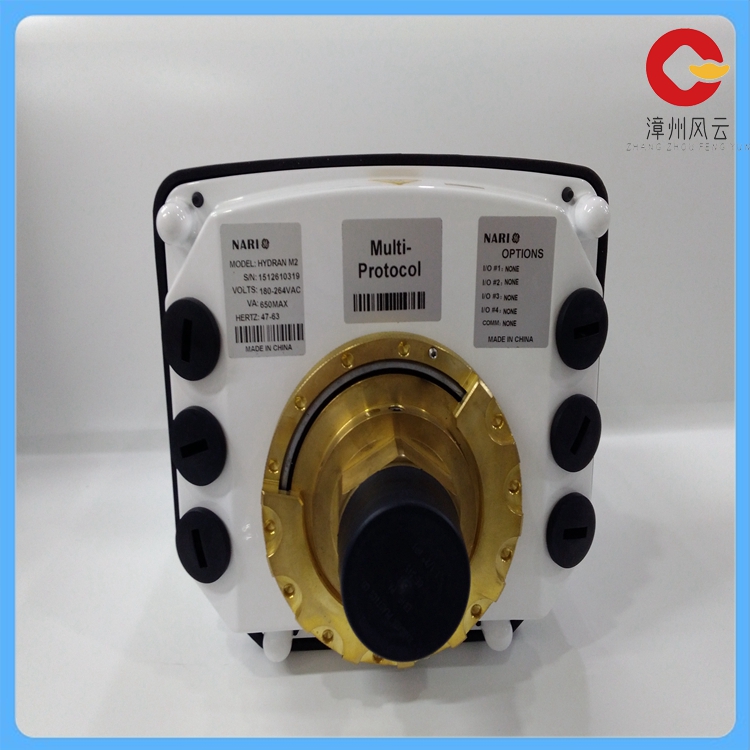

Product description
The HYDRAN M2 module uses advanced sensor technology to accurately measure and analyze dissolved gases such as hydrogen, oxygen, carbon monoxide and carbon dioxide in transformer oil. By monitoring these gases, it is able to identify abnormal levels and trends, indicating potential problems within the transformer. Product parameter
- Measurement scale: Hydrogen (H2):0-10,000 ppm; Oxygen (02):0-1000ppm; Carbon monoxide (CO):0-1000ppm; Carbon dioxide (C02):0-2000ppm- Sampling method: direct sampling from transformer oil - Communication interface :Modbus RTU, RS485
Power Supply :100-240vac,50/60hz
- Operating temperature :-20 ° C ~ +70 ° C
Product description
The HYDRAN M2 GE transformer monitoring device monitors and evaluates the operation of the transformer to ensure its safe, reliable and efficient operation.
trait
The hydrogen sensor responds 100% to hydrogen (a common faulty gas)
The composite gas sensor is 100% responsive to hydrogen and is also sensitive to carbon dioxide (superheated paper insulators).
Up to 4 input or output cards can be selected
Extensive communication methods and protocols.
Standard RS485 output. TCP/IP Copper or optical fiber Optional
Vacuum gas extraction membrane.
Built-in temperature control system.
Good system self-test and self-diagnosis.
