DS200FCGDH1B 状态卡

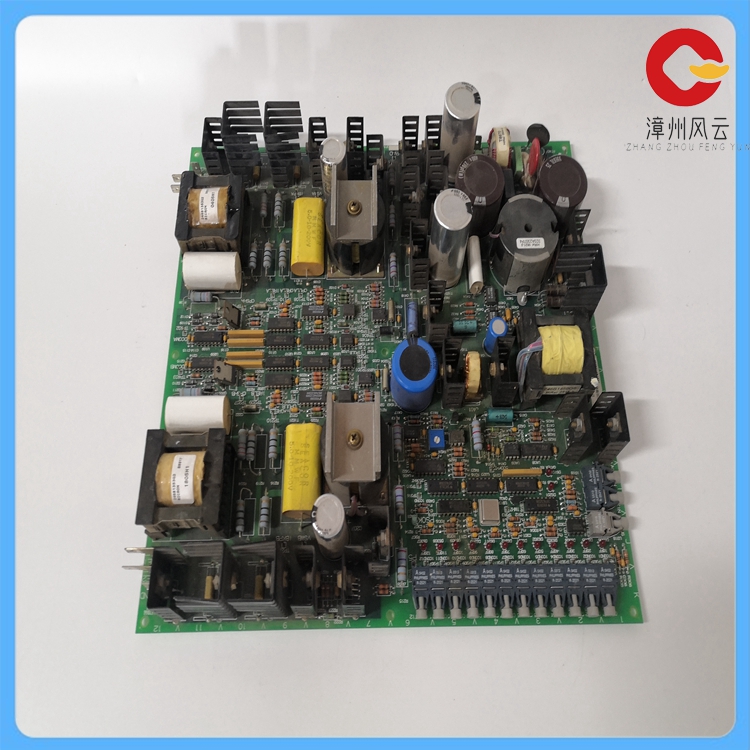

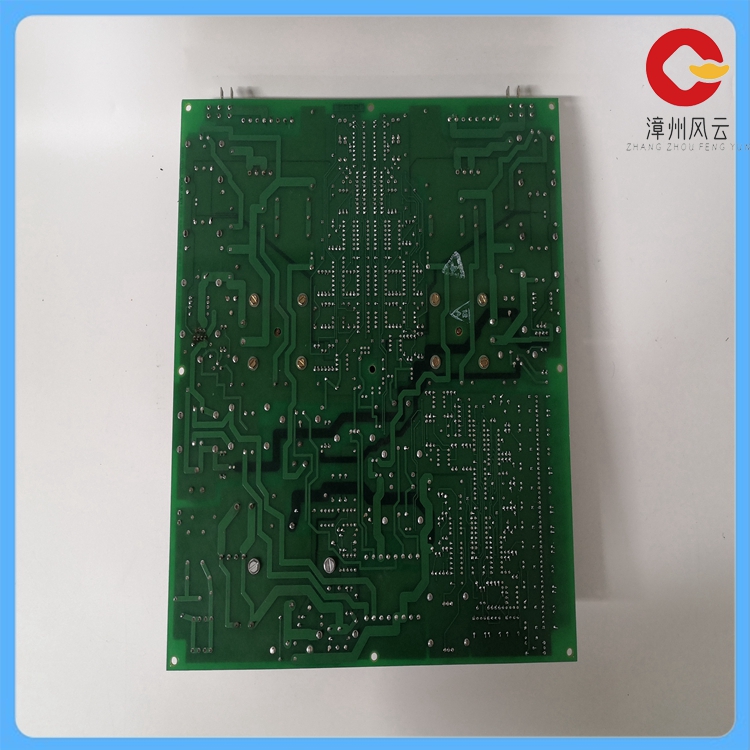

DS200FCGDH1B是Mark V板系列开发的一种门分配和状态卡（FCGD）。这款卡可以安装在许多GE品牌的驱动器中，安装后，它充当六脉冲相位控制不可逆桥的接口系统。具体来说，DS200FCGDH1B从驱动器的集成DSPC（数字信号处理卡）收集大量数据，并将接收到的信号转换为单元门控信号。

DS200FCGDH1B还具有以下特点和功能：

转矩与多功能的完美结合：其无传感器矢量控制技术适用于标准的驱动应用场合，同时在1HZ时具有150%以上的启动转矩，实现低频强扭矩转动。

突变负载处理能力：该模块具有独特的速度估计技术和转速闭环控制，能在极短的时间内判断负载突变，并及时调整输出，从而保持转速稳态精度。

零频转矩保持功能：通过设定零频预励磁功能，即使变频器输出转速为0，也会有励磁电流产生，使电动机保持一定的输出转矩。

多种方式的参数自整定功能：提供了三种动态和静态的参数自整定功能，方便用户调用，以最大限度地发挥无传感器矢量控制的技术优势。

灵活多样的模拟输入输出：提供幅度可调的三路模拟信号输入通道和两路模拟信号输出通道，用户可根据要求选择电流、电压信号控制，或向其他设备输出电流、电压信号。

DS200FCGDH1B的规格参数如下：

输入电压：24 V DC。

最大输入电流：0.5 A。

工作温度：-40°C至70°C。

存储温度：-40°C至85°C。

湿度：5%至95%非凝结。

外形尺寸：42.5mm x 125mm x 125mm。

重量：0.8kg。

The DS200FCGDH1B is a gate assignment and status card (FCGD) developed by the Mark V board family. The card can be installed in many GE branded drives, and when installed, it acts as an interface system for six-pulse phase control of irreversible Bridges. Specifically, the DS200FCGDH1B collects a large amount of data from the drive's integrated DSPC (Digital Signal Processing card) and converts the received signal into a unit gated signal.

The DS200FCGDH1B also has the following features and functions:

The perfect combination of torque and versatility: its sensorless vector control technology is suitable for standard drive applications, while having a starting torque of more than 150% at 1HZ for low frequency strong torque rotation.

Sudden load processing capability: The module has a unique speed estimation technology and speed closed-loop control, which can judge the sudden load in a very short time and adjust the output in time, so as to maintain the steady-state accuracy of the speed.

Zero-frequency torque holding function: By setting the zero-frequency pre-excitation function, even if the output speed of the inverter is 0, there will be excitation current, so that the motor can maintain a certain output torque.

Multi-mode parameter self-tuning function: Three dynamic and static parameter self-tuning functions are provided for easy user call to maximize the technical advantages of sensorless vector control.

Flexible analog input and output: provides three analog signal input channels and two analog signal output channels with adjustable amplitude, users can choose current and voltage signal control according to requirements, or output current and voltage signals to other devices.

Specifications of the DS200FCGDH1B are as follows:

Input voltage: 24 V DC.

Maximum input current: 0.5A.

Operating temperature: -40°C to 70°C.

Storage temperature: -40°C to 85°C.

Humidity: 5% to 95% non-condensing.

Overall dimensions: 42.5mm x 125mm x 125mm.

Weight: 0.8kg.
