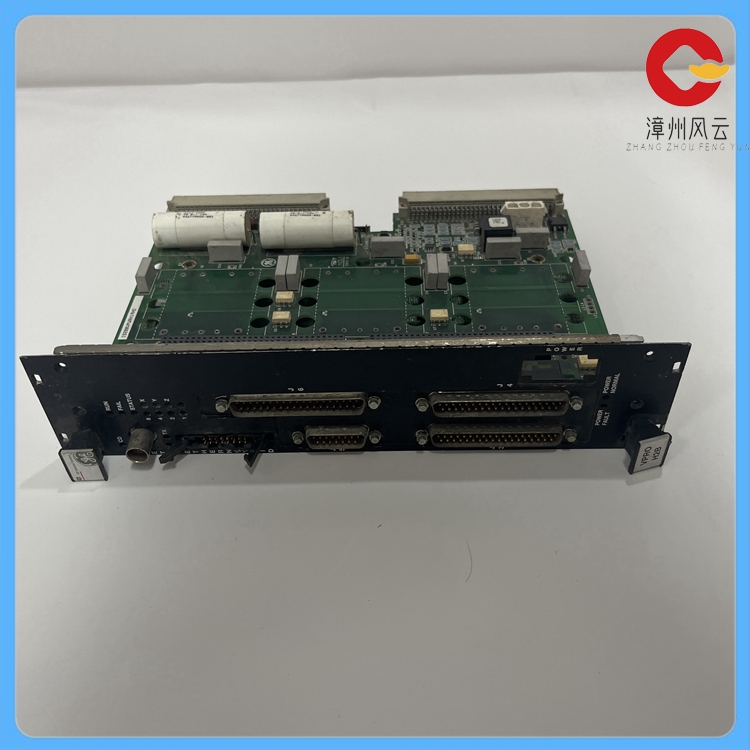

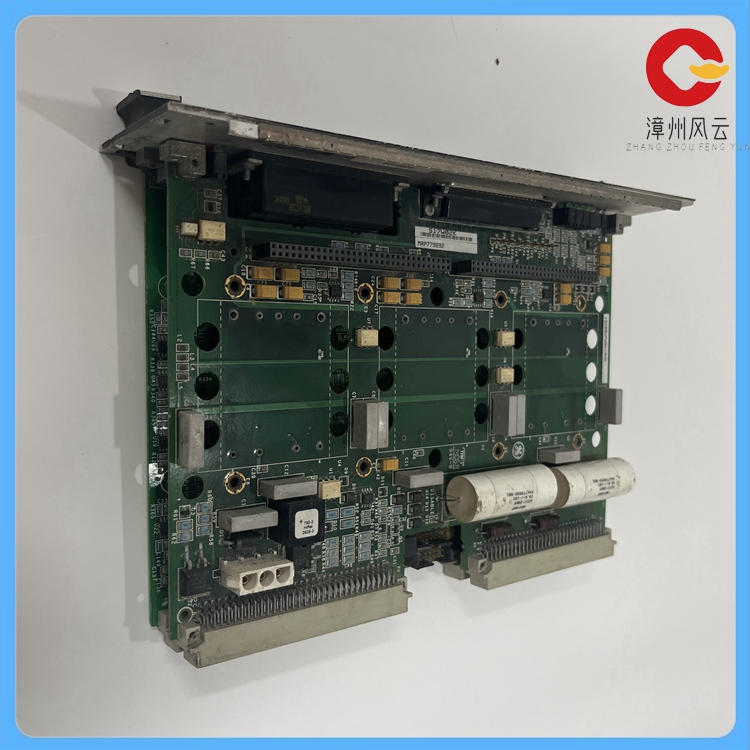

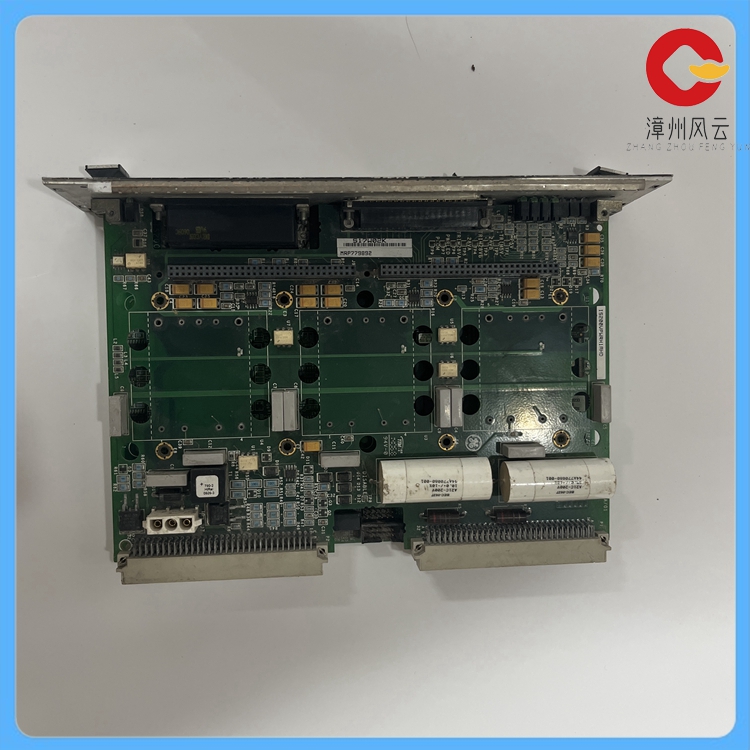

IS200BPVCG1BR1 燃机卡件

IS200BPVCG1BR1GE燃机卡件

般信息:模块

品牌名称:GE

原产国:美国

保修:-年重量:bs

颜色:不同

货币:美元/欧元/CNY

版本:C/D/E/F

电流:A/mA/uA电压:VDCIS200BPVCG1BR1 GE技能规格
IS200BPVCG1BR1是GE公司MarkV系列中运用的PCB元件。Mark VI系列是后来的Speedtronic体系之一。通用电气公司花了三十多年的时刻研讨和开发Speedtronic体系，为重型蒸汽和燃气轮机体系的管理创造了一个牢靠的、可扩展的、完整的解决方案。Mark V采用了最新的技能和集成的专有软件来创立最佳的涡轮机管理体系。这包含一个根据PC的HMI(操作界面),运转通用电气公司的CIMPLICITY qraphics等软件。
IS200BPVCG1BR1是一种背板，设计用于包容和支持多块板的机架体系。该板的后半部分装有21个母背板衔接器。当放置在机架体系中时，板的这部分将被高大的墙面包围，这些墙面将支撑并将衔接板确定到位。，电路板的另一部分装有输入/输出衔接器，设计为暴露在机架体系之外，这使得操作员能够轻松地将带状衔接器及其电缆衔接到电路板上。共有39个/0衔接器，允许与衔接在背板上的电路板进行数据传输。IS200BPVCG1BR1还包含14个刺进式衔接器和6个电阳网络阵列，电路板的底部还有别的30个元件。这些被标记为L1到L30，该板标有制造商标志和板号。

IS200BPVCG1BR1GE gas turbine clamp

General information: Modules

Brand Name :GE

Country of origin: USA

Warranty :- Annual weight :bs

Color: Different

Currency: USD/EUR /CNY

Version :C/D/E/F

Current :A/mA/uA Voltage :VDCIS200BPVCG1BR1 GE Specifications

The IS200BPVCG1BR1 is a PCB component used in GE's MarkV series. The Mark VI series is one of the later Speedtronic systems. Ge has spent more than 30 years researching and developing the Speedtronic system to create a robust, scalable and complete solution for the management of heavy-duty steam and gas turbine systems. Mark V uses the latest skills and integrated proprietary software to create the best turbine management system. This includes a PC's HMI(operating interface) that runs software such as GE's CIMPLICITY qraphics.

The IS200BPVCG1BR1 is a backplane designed to accommodate and support a rack system with multiple boards. The rear half of the board is equipped with 21 female backplane adapters. When placed in a rack system, this portion of the board will be surrounded by tall walls that will support and hold the connecting board in place. Another part of the board contains an input/output adapter designed to be exposed outside the rack system, which allows the operator to easily connect the ribbon adapter and its cables to the board. A total of 39 /0 adapters allow data transfer with the circuit board attached to the backplane. The IS200BPVCG1BR1 also contains 14 thrust-type adapters and 6 positive network arrays, as well as 30 other components on the bottom of the board. These are labeled L1 through L30, and the board is marked with the manufacturer's logo and board number.
