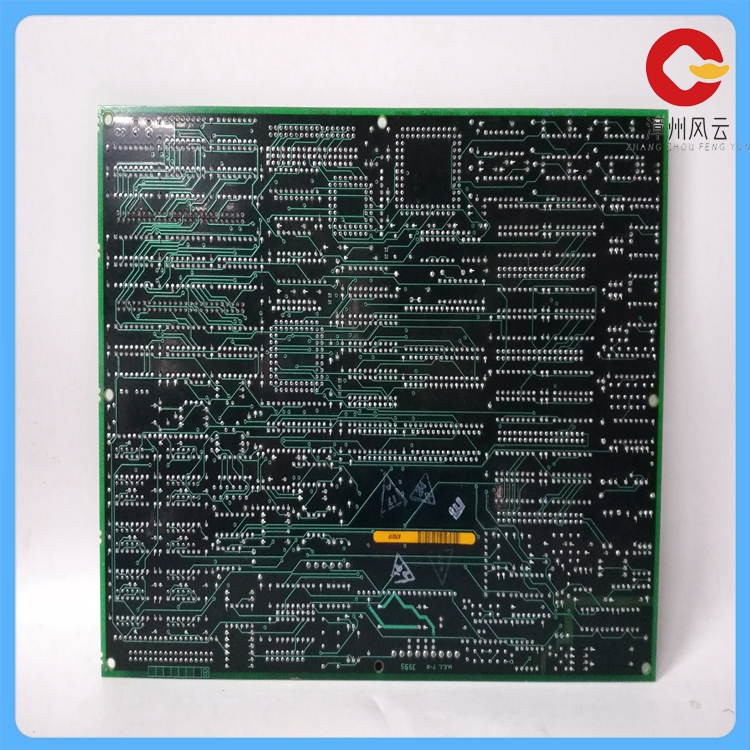

DS200TCCAG1BAA是一款模拟印刷电路板，用于传输和处理模拟信号。
以下是关于DS200TCCAG1BAA的详细解释：
核心组件与功能：DS200TCCAG1BAA具有一个80196微处理器和多个可编程只读存储器（PROM）模块。这些PROM模块存储微处理器和可编程逻辑器件使用的指令和固件。
该电路板还包含一个LED和2个50针连接器，用于实现信号和数据的传输。
作为通用数据处理器的模拟I/O板，它可以帮助实现与所有三个控制器的通信。
应用领域：DS200TCCAG1BAA广泛应用于各种工业领域，包括制造业、电力、化工、石油和天然气、医疗设备以及测试和测量等。在电力行业中，它常用于测量、监测和控制电力设备和过程中的模拟信号。
在电力发电厂中，它可以用于测量和监测发电机、蒸汽轮机、锅炉等设备的模拟信号，实现对发电过程的控制和优化。
它还可用于高压输电线路和变电站，测量和监测输电设备的模拟信号，以实现对输电过程的监控和调节。
技术规格：
输入电压为24V DC。工作温度范围为-20℃至60℃。通信接口包括以太网和RS485。具有64KB的内存容量。数字输入和数字输出各有16路。
The DS200TCCAG1BAA is an analog printed circuit board for the transmission and processing of analog signals.
The following is a detailed explanation of DS200TCCAG1BAA:
Core components and features: The DS200TCCAG1BAA has an 80196 microprocessor and multiple programmable read-only memory (PROM) modules. These PROM modules store the instructions and firmware used by microprocessors and programmable logic devices.
The board also contains an LED and two 50-pin connectors for signal and data transmission.
As an analog I/O board for a general-purpose data processor, it can help enable communication with all three controllers.
Applications: DS200TCCAG1BAA is widely used in various industrial fields, including manufacturing, power, chemical, oil and gas, medical equipment, and test and measurement. In the power industry, it is often used to measure, monitor and control analog signals in power equipment and processes.
In electric power plants, it can be used to measure and monitor the analog signals of generators, steam turbines, boilers and other equipment to realize the control and optimization of the power generation process.
It can also be used in high-voltage transmission lines and substations to measure and monitor the analog signals of transmission equipment to realize the monitoring and regulation of the transmission process.
Technical specifications:
The input voltage is 24V DC. Operating temperature range is -20℃ to 60℃. Communication interfaces include Ethernet and RS485. It has a memory capacity of 64KB. There are 16 channels each for digital input and output.
