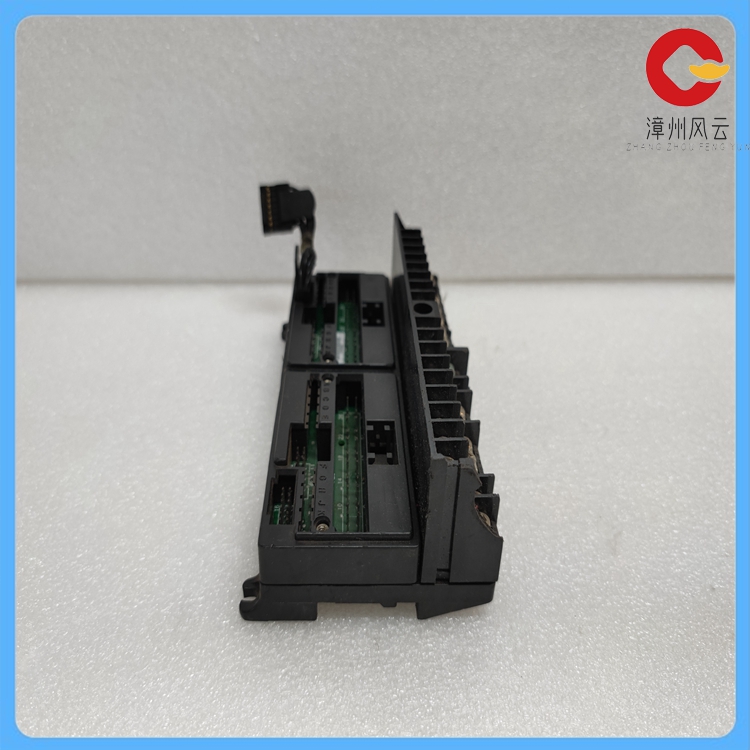

IC670CHS101是一个现场控制I/O接线端子。
以下是关于该产品的详细介绍：
设计与功能：该接线端子被设计为GE I/O模块的固态连接平台，具有屏障式连接点，允许电缆尺寸从AWG #14到AWG #22。
它提供37个输入或输出点，用于建立通信链路并为两个GE Fanuc I/O模块提供所需的电源。
端子A和B用于连接系统电源，其余部分可根据用户应用的需要使用。
该接线端子在出厂时具有额外的短路或错误连接保护，因为它的接线点被设计为屏障式，将每个连接点与其他连接点物理隔离。
规格与参数：每个屏障式端子连接点最多允许两根电缆，尺寸为AWG #14至AWG #22。
可以与其他类似模块串联安装，只要设备按正确的极性顺序安装，以避免系统中的通信问题。
输入电压和输出电压均为24VDC，工作温度范围为-40℃~+85℃，产品尺寸为100mm x 50mm x 20mm，产品重量为1.2kg。
使用与安装：附加模块可以通过简单的插入安装在IC670CHS101接线端子上，并通过螺钉锁定到位。
每个接线端子必须正确接地到连接到用户提供的配电板的导电DIN导轨上。
The IC670CHS101 is a field control I/O terminal.
Here is a detailed description of the product:
Design and function: This terminal is designed as a solid state connection platform for GE I/O modules with a screen connection point that allows cable sizes from AWG #14 to AWG #22.
It provides 37 input or output points, which are used to establish communication links and provide the required power to the two GE Fanuc I/O modules.
Terminals A and B are used to connect the system power supply, and the other parts can be used according to the needs of the user's application.
This terminal comes with additional protection from short circuits or false connections at the factory, as its wiring points are designed to be shield-proof, physically isolating each connection point from the others.
Specifications and parameters: A maximum of two cables are allowed per screen terminal connection point in sizes AWG #14 to AWG #22.
It can be installed in series with other similar modules as long as the devices are installed in the correct polarity sequence to avoid communication problems in the system.
The input voltage and output voltage are 24VDC, the operating temperature range is -40℃~+85℃, the product size is 100mm x 50mm x 20mm, the product weight is 1.2kg.
Usage and installation: The add-on module can be simply inserted into the IC670CHS101 terminal and secured by screws.
Each terminal must be properly grounded to a conductive DIN rail connected to the user-supplied switchboard.
