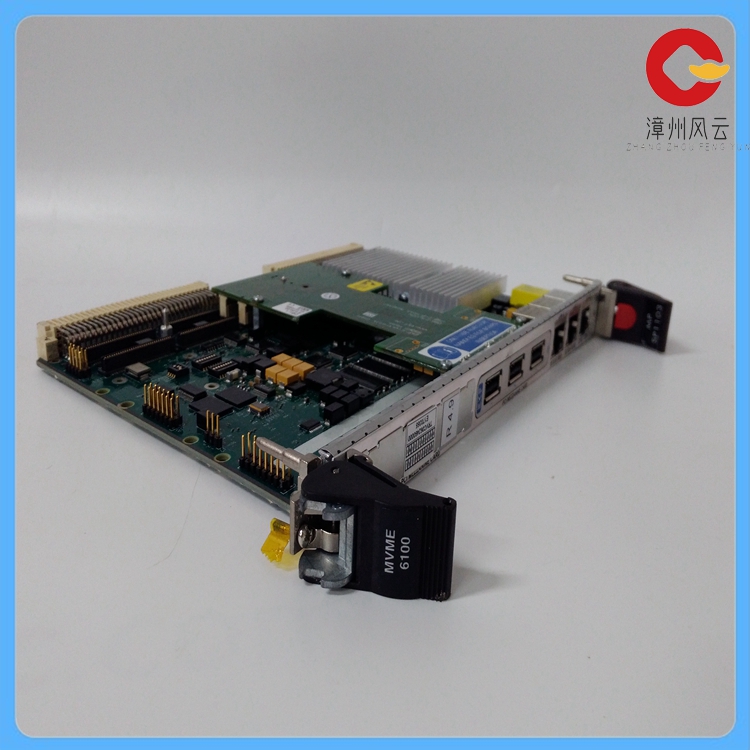

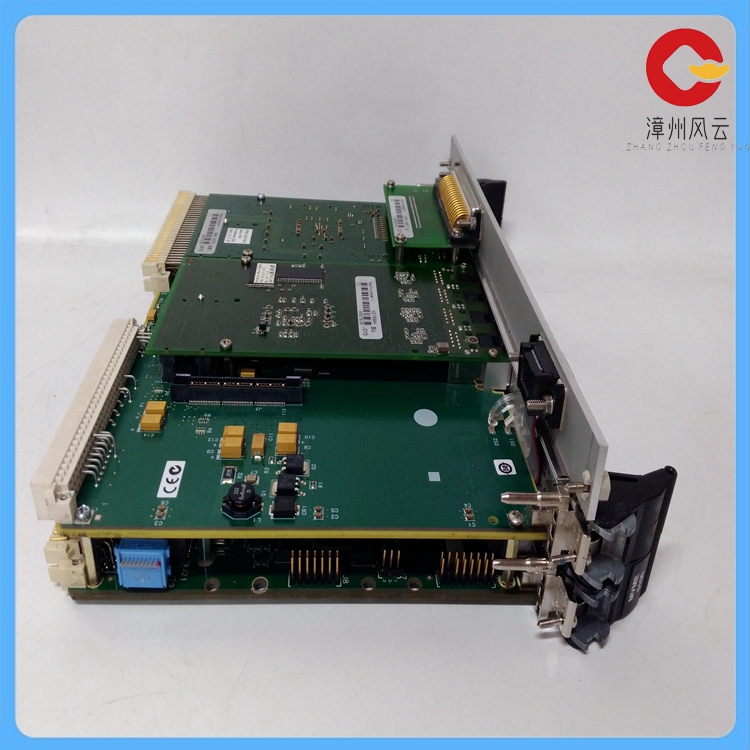

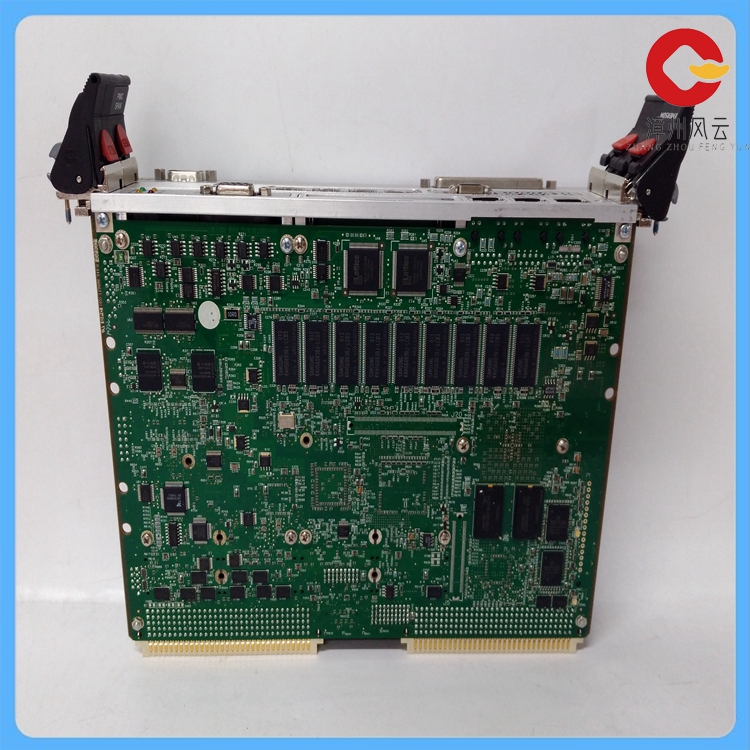

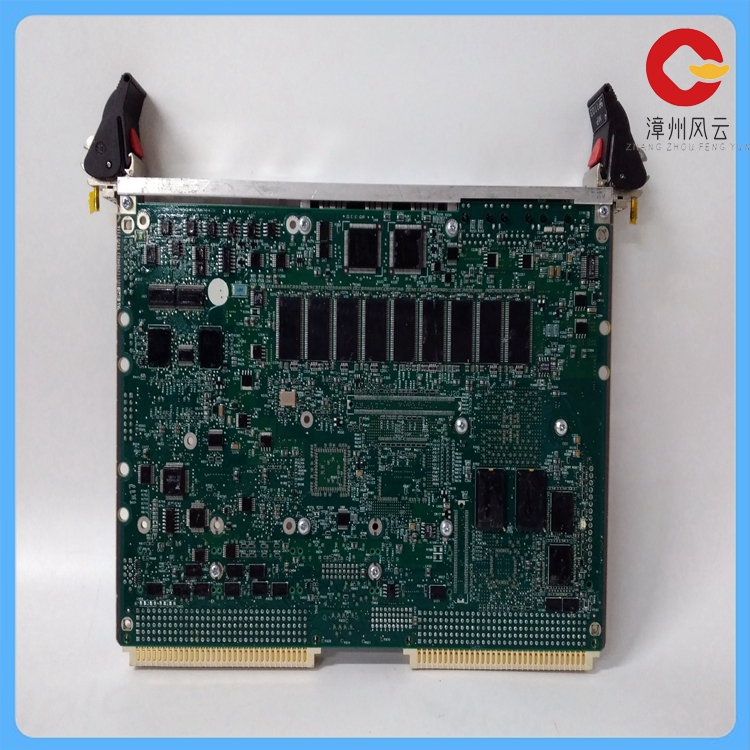

MVME6100 单板计算机控制板

特色:
2eSST VMEbus协议，跨VMEbus的传输速率为320MB/s
从现有摩托罗拉VMEbus渠道的迁移路径
运行频率为1.267 GHz的高性能MPC7457 PowerPC处理器
用于并行处理的128位AltiVec协处理器
高达1GB的板载DDR ECC内存
两个33/66/100 MHz PMC-X站点答应添加行业规范的特定运用模块
双千兆以太网接口
。两个64MB存储体中的128MB闪存
MVME6100-0161是MotorolaMVME6100系列VMEbus单板计算机操控板的一部分，属于VMERenaissance的一部分。该产品利用了全新的VMEbus至PCI-X网桥，运用VMEbus双边缘资源同步传输协议，完成了VEbus数据传输速率的突破性增加。运用领域:Emerson MVME61006E-0163 模拟量扩展模块一般用于工业自动化体系，能够运用于各种工业领域，包含制作、电力、化工、石油和天然气、水处理等。
输入通道:这个模块一般具有多个模拟输入通道，用于接纳来自传感器和丈量设备的模拟信号，例如温度、压力、流量等。输出通道:Emerson MVME61006E-0163 一般也具有多个模拟输出通道，用于向执行器和操控设备发送模拟操控信号，例如驱动电机、阀门等。分辨率:这个模块一般具有高分辨率，以确保准确的模拟信号丈量和操控。通讯接口:Emerson MVME61006E-0163模拟量扩展模块一般具有通讯接口，以支持与主操控体系或其他设备的数据交换和通讯。一般采用规范的工业通讯协议，如Modbus等。
可编程性:这个模块一般是可编程的，答应工程师根据详细的运用需求配置输入输出通道和操控逻辑。
安全性:工业自动化体系一般要求高级的安全性，这个模块可能供给安全功能，以确保体系的安全操作。

Features:

2eSST VMEbus protocol, the transmission rate across VMEbus is 320MB/s

Migration path from existing MOTOROLA VMEbus channels

A high-performance MPC7457 PowerPC processor running at 1.267 GHz

128-bit AltiVec coprocessor for parallel processing

Up to 1GB of on-board DDR ECC memory

Two 33/66/100 MHz PMC-X sites allow the addition of industry-specific application modules

Dual Gigabit Ethernet interface

. 128MB flash in two 64MB storage bodies

The MVME6100-0161 is part of the MotorolaMVME6100 series VMEbus single-board computer control board and is part of the VMERenaissance. The product utilizes the new VMEbus to PCI-X bridge and uses the VMEbus dual edge resource synchronous transfer protocol to achieve a breakthrough increase in VEbus data transmission rate. Applications :Emerson MVME61006E-0163 Analog expansion module is generally used in industrial automation systems, can be used in a variety of industrial fields, including manufacturing, power, chemical, oil and gas, water treatment, etc.

Input channels: This module generally has multiple analog input channels to receive analog signals from sensors and measurement devices, such as temperature, pressure, flow, etc. Output channels: The Emerson MVME61006E-0163 also generally has multiple analog output channels for sending analog control signals to actuators and control devices, such as drive motors, valves, etc. Resolution: This module generally has a high resolution to ensure accurate analog signal measurement and manipulation. Communication interface: The Emerson MVME61006E-0163 Analog expansion module generally has a communication interface to support data exchange and communication with the main control system or other equipment. Generally adopt standard industrial communication protocols, such as Modbus, etc.

Programmability: This module is generally programmable, allowing engineers to configure input/output channels and control logic according to detailed application requirements.

Security: Industrial automation systems generally require a high level of security, and this module may provide safety features to ensure safe operation of the system.
