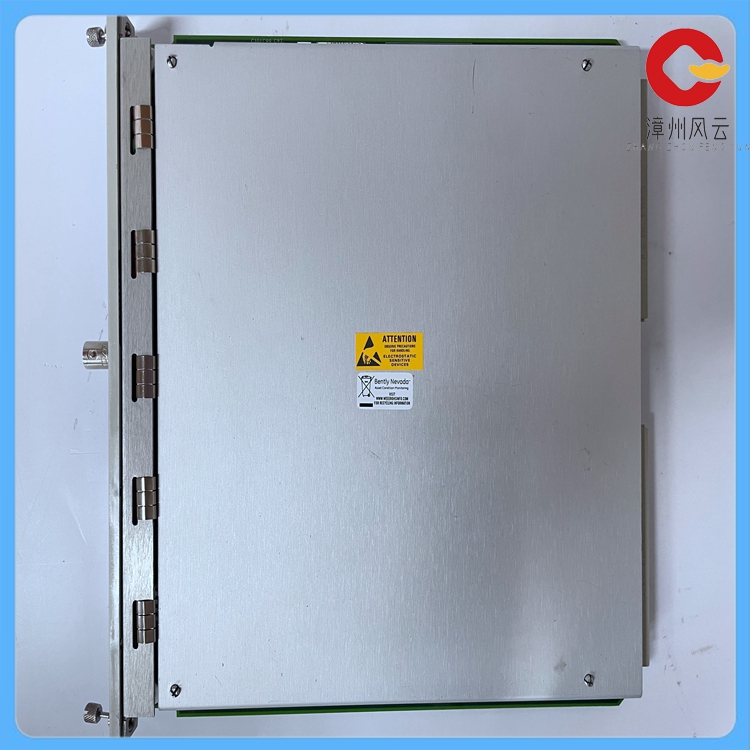

BENTLY 3500/53 133388-01是用于3500系列机械检测系统的框架接口模块（RIM）。该模块是3500框架的基本接口，支持本特利用于框架组态并调出机组中信息的专有协议。框架接口模块必须放在框架中的第一个槽位。
BENTLY 3500/53 133388-01 前面板上有RS-232串行接口，可以与主机连接进行数据采集和框架组态，波特率最大38.4K，电缆长度要求最长30m。后面的I/O（输入/输出）模块上有RS-232/RS-422串行接口，同样可以与主机连接进行数据采集和框架组态，最大波特率38.4K，电缆长度有所不同，RS232为最长30m，RS422为最长1200m。
此外，BENTLY 3500/53 133388-01 模块前面板上的LED提供了关于模块操作状态、通信状态和报警状态的指示。
The BENTLY 3500/53 133388-01 is a frame interface module (RIM) for the 3500 series mechanical inspection systems. This module is the basic interface of the 3500 framework and supports the proprietary protocols that we use to configure the framework and retrieve information from the unit. The frame interface module must be placed in the first slot in the frame.
The BENTLY 3500/53 133388-01 has a RS-232 serial interface on the front panel, which can be connected to the host for data acquisition and frame configuration, with a maximum baud rate of 38.4K, and the cable length is required to be up to 30m. The rear I/O (input/output) module has a RS-232/RS-422 serial interface, which can also be connected with the host for data acquisition and frame configuration, the maximum baud rate of 38.4K, the cable length is different, RS232 is the longest 30m, RS422 is the longest 1200m.
In addition, leds on the front panel of the BENTLY 3500/53 133388-01 module provide instructions on the module's operating status, communication status, and alarm status.
