BENTLY 3500/33 机械振动监测系统

BENTLY 3500/33是一款机械振动监测系统,它拥有故障预警功能,并适用于多种工业应用场景。该系统通过测点中的温度振动传感器实时采集机械设备(如港口起重设

产品详情

BENTLY 3500/33是一款机械振动监测系统,它拥有故障预警功能,并适用于多种工业应用场景。

该系统通过测点中的温度振动传感器实时采集机械设备(如港口起重设备的传动链,包括电动机、减速器以及轴承等)的振动信号及温度变化,并将数据通过485/lora等方式上传至环境监控平台。用户可以在平台上实时读取设备的振动信号及温度变化,从而掌握机械振动信息。

BENTLY 3500/33支持多种传感器,能够实现连续、在线的监测功能,适用于各种机械保护应用。它既能进行静态(位移)测量,又能进行动态(振动)测量,功能强大且灵活。

该系统还可以为不同的设备设置振动值的安全范围,通过平台的故障诊断算法,进行初步判断,检测传动链中的设备在运行过程中是否存在安全隐患。在振动异常、温度变化异常的时候,系统会自动向用户发出报警,帮助用户及时排查安全隐患,从而减少机械的非正常停机,降低维护费用。

BENTLY 3500/33的应用场景非常广泛,包括但不限于工业制造、能源行业、交通运输领域以及基础设施和公共服务等领域。在工业制造中,它可以用于监测生产线和关键设备的振动和故障情况;在能源行业中,它可以用于监测和保护涉及涡轮机、发电机、压缩机和其他关键设备的振动和故障情况;在交通运输领域,它可以用于铁路、船舶和飞机等交通工具的振动监测和故障诊断;在基础设施和公共服务中,它可以用于大型桥梁、隧道、水坝、石油和天然气管道等基础设施的监测和保护。

BENTLY 3500/33还具备自我检测和容错设计,可以配置成多种冗余,从而充分满足最关键性任务的应用需求。

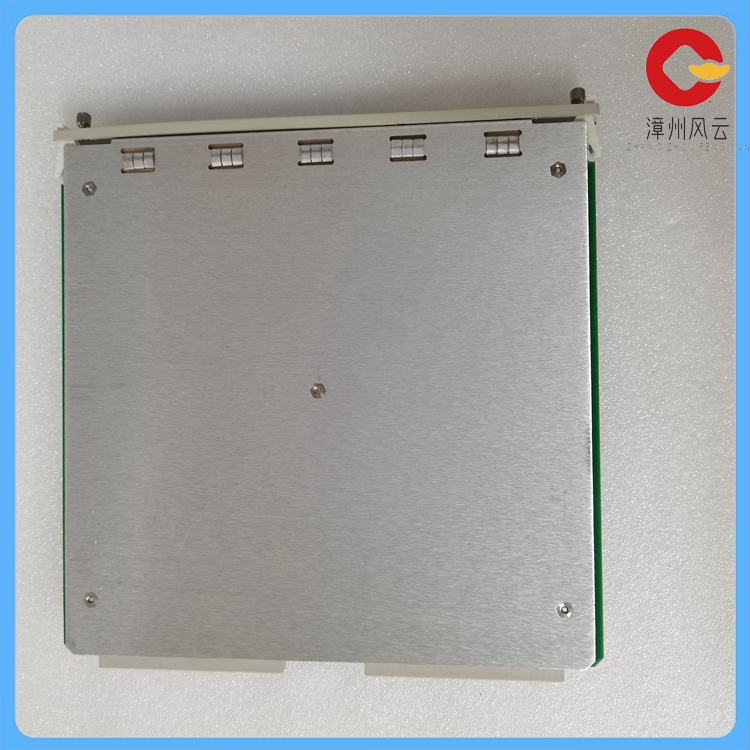

BENTLY 350033 149986-01(2).jpg

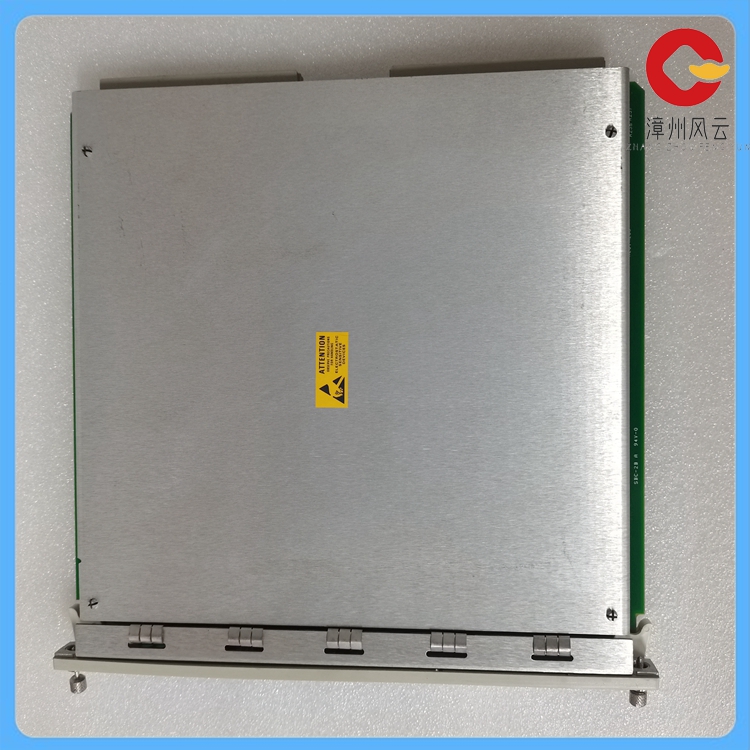

BENTLY 350033 149986-01(1).jpg

The BENTLY 3500/33 is a mechanical vibration monitoring system with fault warning and suitable for a wide range of industrial applications.

The system collects the vibration signal and temperature change of the mechanical equipment (such as the transmission chain of the port lifting equipment, including the motor, the reducer and the bearing, etc.) in real time through the temperature vibration sensor in the measuring point, and uploates the data to the environmental monitoring platform through 485/lora and other ways. Users can read the vibration signal and temperature change of the device in real time on the platform, so as to master the mechanical vibration information.

The BENTLY 3500/33 supports a wide range of sensors, enabling continuous, in-line monitoring for a wide range of mechanical protection applications. Capable of both static (displacement) and dynamic (vibration) measurements, it is powerful and flexible.

The system can also set a safe range of vibration values for different equipment, and make a preliminary judgment through the fault diagnosis algorithm of the platform to detect whether there are safety risks in the operation of the equipment in the transmission chain. When the vibration is abnormal and the temperature changes are abnormal, the system will automatically issue an alarm to the user to help the user timely investigate the safety hazards, thereby reducing the abnormal shutdown of the machine and reducing the maintenance cost.

The application scenarios of BENTLY 3500/33 are very broad, including but not limited to industrial manufacturing, energy industry, transportation sector, and infrastructure and public services. In industrial manufacturing, it can be used to monitor the vibration and failure of production lines and key equipment; In the energy industry, it can be used to monitor and protect against vibration and failure situations involving turbines, generators, compressors and other critical equipment. In the field of transportation, it can be used for vibration monitoring and fault diagnosis of vehicles such as railways, ships and aircraft. In infrastructure and public services, it can be used for the monitoring and protection of infrastructure such as large Bridges, tunnels, DAMS, and oil and gas pipelines.

The BENTLY 3500/33 also features self-detection and fault-tolerant design, and can be configured with multiple redundancies to fully meet the needs of the most mission-critical applications.
