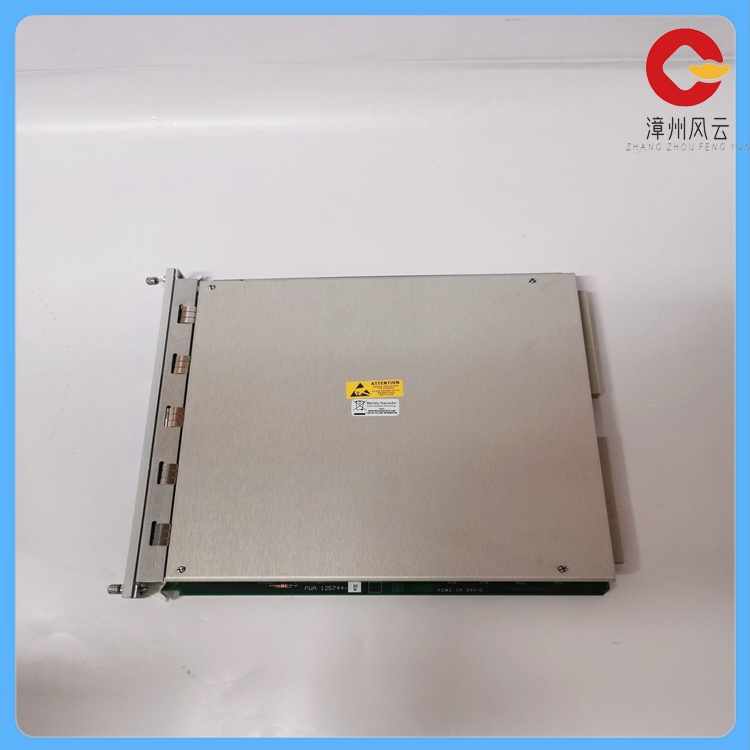

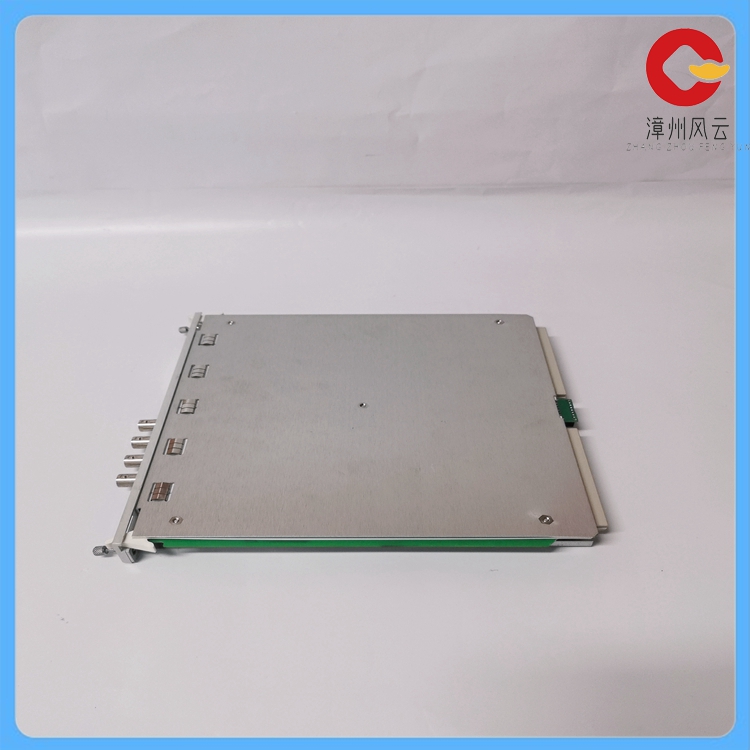

BENTLY 3500/42M 140482-01是一个重要的工业监测组件,具有多种关键特性和功能。以下是对其特点和应用的详细描述:
模块化设计:3500/42M 140482-01的设计使其可以灵活地集成到现有的计算机系统中,与其他部件共同形成一个完整的机器监测系统。
多种传感器数据采集:作为3500监测系统的一部分,该模块能够通过多种传感器采集数据,从而实现对关键设备的全面监控。
监控通道设置:该模块具有监控通道成对设置的特点,最多可以同时执行两个指定的功能。例如,通道1和2可以执行一个功能,而通道3和4执行另一个或相同的功能。
警报与保护机制:3500/42M 140482-01通过实时比较监测参数与选定的警报设置点,触发警报以保护机械。当监测参数超过预设的警报阈值时,它会通知操作和维护人员有关关键机器的信息。
可编程性与配置灵活性:使用3500机架配置软件,用户可以方便地对每个通道进行编程,以监控和报告各种机器参数,如径向振动、推力位置、加速度等。
输出与指示:当Monitor模块正常工作时,OK LED会亮起。当Seismic Monitor模块与3500机架中的其他模块连接时,TX/RX LED会亮起。如果地震监测器处于旁路模式,旁路LED会亮起。
物理特性与连接:该模块具有机械锁定机构,可以将其锁定在DIN导轨上,确保稳定连接。此外,它还具有工艺信号端子,每个通道都有两个连接:一个用于保险丝传感器电源端子,另一个用于信号连接。
在实际应用中,BENTLY 3500/42M 140482-01常用于监测各种工业设备,如汽轮机、压缩机等,帮助用户及时发现潜在问题,确保设备的稳定运行。然而,由于工业环境的复杂性和多样性,建议在实际使用前详细阅读产品手册,并根据具体情况进行适当的配置和调整。
The BENTLY 3500/42M 140482-01 is an essential industrial monitoring component with a variety of key features and functions. The following is a detailed description of its features and applications:
Modular design: The design of 3500/42M 140482-01 allows it to be flexibly integrated into existing computer systems, together with other components to form a complete machine monitoring system.
Multiple sensor data acquisition: As part of the 3500 monitoring system, the module is able to collect data through multiple sensors, enabling comprehensive monitoring of critical equipment.
Monitoring channel Settings: The module has the characteristics of monitoring channels in pairs, and can perform up to two specified functions at the same time. For example, channels 1 and 2 May perform one function, while channels 3 and 4 perform another or the same function.
Alarm and protection mechanism: 3500/42M 140482-01 Triggers alarms to protect machinery by comparing monitoring parameters with selected alarm setting points in real time. When a monitoring parameter exceeds a preset alarm threshold, it notifies operations and maintenance personnel about critical machines.
Programmability and configuration flexibility: With 3500 rack configuration software, users can easily program each channel to monitor and report various machine parameters such as radial vibration, thrust position, acceleration, and more.
Output and indication: The OK LED lights up when the Monitor module is working normally. When the Seismic Monitor module is connected to other modules in the 3500 rack, the TX/RX LED lights up. If the seismic monitor is in bypass mode, the bypass LED lights up.
Physical characteristics and connections: The module has a mechanical locking mechanism that locks it onto the DIN rail, ensuring a stable connection. In addition, it has process signal terminals, with two connections for each channel: one for the fuse sensor power terminal and one for the signal connection.
In practical applications, the BENTLY 3500/42M 140482-01 is often used to monitor various industrial equipment, such as steam turbines, compressors, etc., to help users find potential problems in a timely manner and ensure the stable operation of the equipment. However, due to the complexity and diversity of the industrial environment, it is recommended to read the product manual in detail before actual use, and make appropriate configuration and adjustment according to the specific situation.
