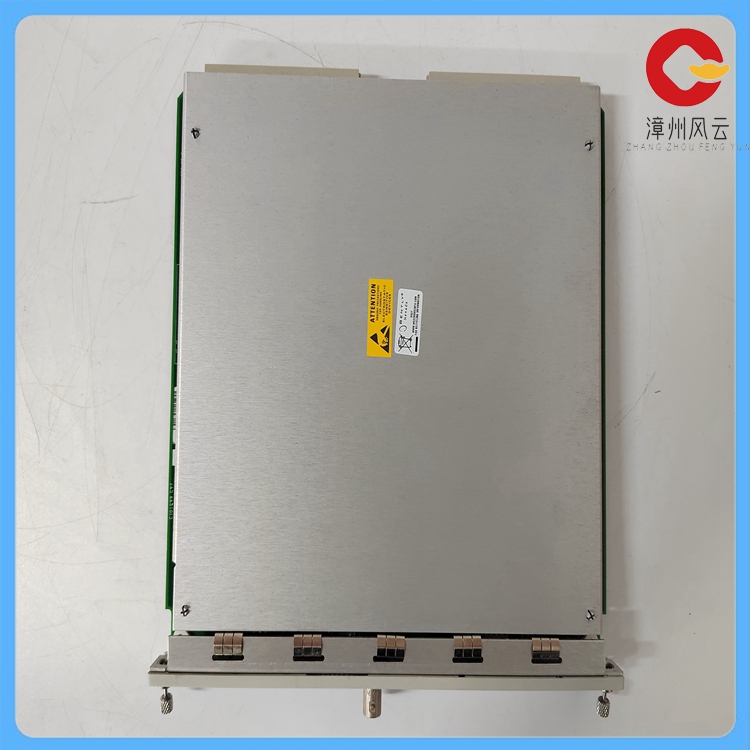

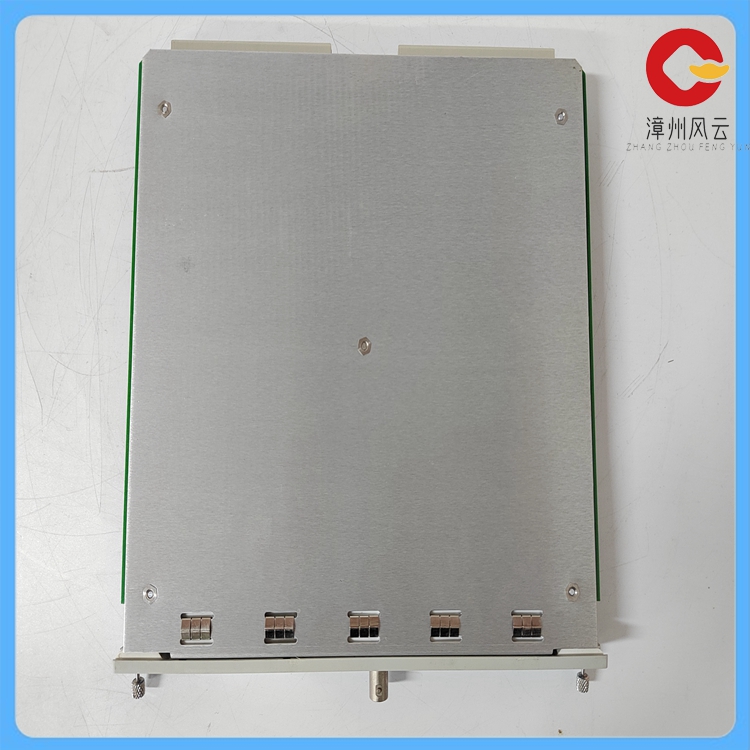

BENTLY 3500/53 133396-01 是3500系列机械检测系统的超速检测模块,它提供高度可靠且快速响应的冗余转速表系统,专门用于机械的超速保护。
BENTLY 3500/53 133396-01 可用于组成2选2或3选2(推荐)表决系统,并需要配备冗余电源来安装超速检测系统。每个超速检测模块可以接收来自涡流传感器或磁传感器的信号,这些信号的输入范围在+10.0V至-24.0V之间。如果信号超出这个范围,模块内部会进行限制。
该模块适用于多种传感器,如本特利3300 8mm涡流传感器、3300 16mm高温涡流传感器(HTPS)、7200 5mm、8mm、11mm和14mm涡流传感器、3300 RAM涡流传感器,或磁传感器。
为了实现机器保护,该模块提供四种快速响应报警继电器输出。它还可以被组态成在报警时提供3选2的表决功能,此时来自每个模块的报警输出进行比较,只有在继电器被驱动前,两个模块的输出一致时才会触发报警。
The BENTLY 3500/53 133396-01 is the overspeed inspection module of the 3500 series mechanical inspection system, which provides a highly reliable and fast response redundant tachometer system specifically designed for overspeed protection of machinery.
The BENTLY 3500/53 133396-01 can be used to form a 2-opt-2 or 3-opt-2 (recommended) voting system and requires redundant power supply to install an overspeed detection system. Each overspeed detection module can receive signals from eddy current sensors or magnetic sensors with input ranges from +10.0V to -24.0V. If the signal is outside this range, it is restricted inside the module.
The module is suitable for a variety of sensors such as the Bentley 3300 8mm eddy current sensor, 3300 16mm High temperature Eddy current sensor (HTPS), 7200 5mm, 8mm, 11mm and 14mm eddy current sensor, 3300 RAM Eddy current sensor, or magnetic sensor.
For machine protection, the module offers four fast response alarm relay outputs. It can also be configured to provide a 3 out of 2 voting function in the alarm, when the alarm output from each module is compared, and the alarm will only be triggered if the output of the two modules is consistent before the relay is driven.
