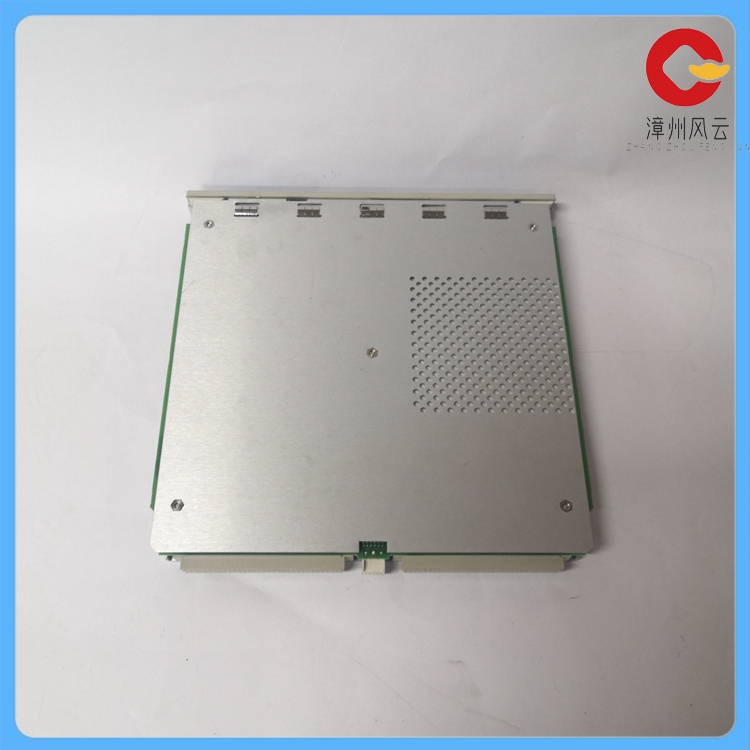

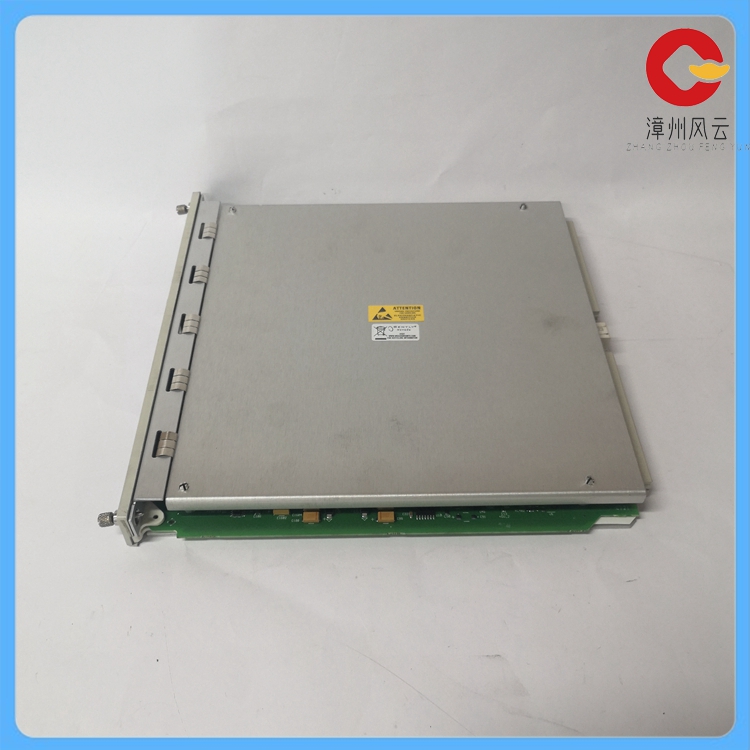

BENTLY 3500/22-01-01-00 138607-01 是一个瞬态数据接口模块,用于与3500监控系统进行接口连接。它通常用于工业环境中,特别是在振动监测和机械健康监测系统中。
这个模块的主要功能包括:
数据接口与通信:它用作与3500监控系统兼容的软件的接口,将3500/20机架接口模块(RIM功能)与通信处理器(如TDXnet)相结合,以收集数据。
稳态与瞬态数据收集:在3500机架中,该模块位于电源旁边的插槽中,用于持续收集稳态和瞬态动态(波形)数据,并通过以太网链路将此数据传输到主机软件。
机械健康监测:它可以用于监测旋转设备的机械健康状态,以提前检测潜在故障,并采取维护措施以防止设备损坏。
振动监测:可能被用于振动监测系统,用于检测旋转机械设备(如发电机、泵和风机)的振动水平,以评估其运行状态和健康状况。
该模块还具有一些可选功能,如使用通道启用磁盘记录高分辨率的瞬态数据。
The BENTLY 3500/22-01-01-00 138607-01 is a transient data interface module for interface connection with the 3500 monitoring system. It is commonly used in industrial Settings, especially in vibration monitoring and mechanical health monitoring systems.
The main functions of this module include:
Data interface and communication: It is used as an interface for software compatible with 3500 monitoring systems, combining 3500/20 rack interface modules (RIM features) with communication processors such as TDXnet to collect data.
Steady-state vs. Transient data collection: Located in a slot next to the power supply in 3500 racks, this module is used to continuously collect steady-state and transient dynamic (waveform) data and transmit this data to the host software over an Ethernet link.
Mechanical Health Monitoring: It can be used to monitor the mechanical health of rotating equipment to detect potential failures in advance and to take maintenance measures to prevent equipment damage.
Vibration monitoring: May be used in vibration monitoring systems to detect the vibration levels of rotating mechanical equipment such as generators, pumps and fans to assess their operating status and health.
The module also has some optional features such as the use of channel-enabled disks to record high-resolution transient data.
