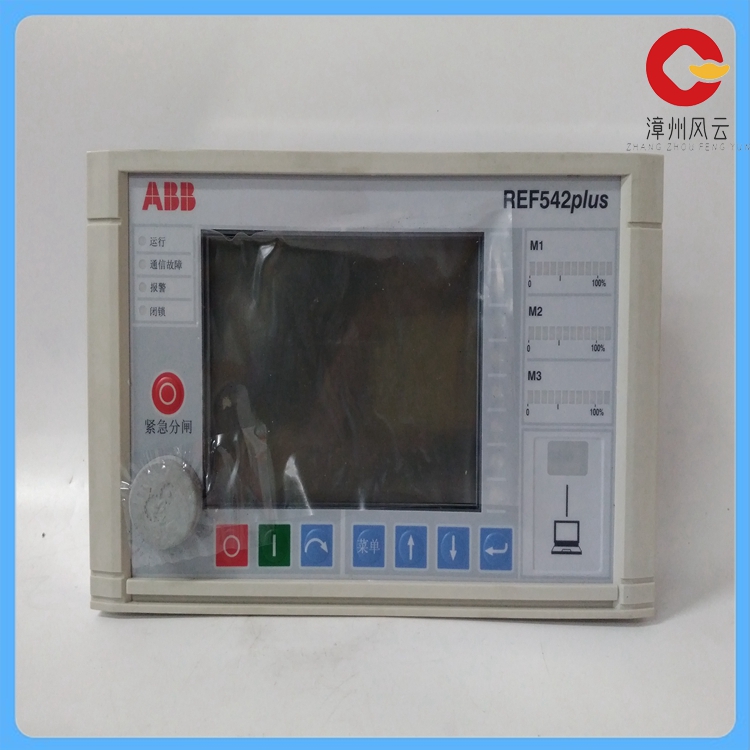

REF542PLUS 继电保护器 用于工业自动化

REF542PLUS 是一款继电保护器，通常用于工业自动化和控制系统。

外形尺寸：132mm x 105mm x 52mm（或170mm x 105mm x 32mm）

重量：约120g

电源与电气特性：

输入电压：24V

额定电流：5A

输入电流：500mA

输出电压：24VDC

输出功率：360W

输入电压范围：10~30VDC

功能与应用：REF542PLUS 支持矢量图。

REF542PLUS 是一款基于REF542驱动器SLD基础之上研发的定制产品，具有在脉冲和模拟量两种模式之间自由切换的能力，

切换时不会丢失编码器位置信息，转矩不会发生脉动。

通信与接口：具备RS232、RS485总线接口（CAN可选），总线与驱动器电气隔离。

The REF542PLUS is a relay protector commonly used in industrial automation and control systems.

Overall dimensions: 132mm x 105mm x 52mm (or 170mm x 105mm x 32mm)

Weight: About 120g

Power Supply and Electrical characteristics:

Input voltage: 24V

Rated current: 5A

Input current: 500mA

Output voltage: 24VDC

Output power: 360W

Input voltage range: 10~30VDC

Features and Applications: REF542PLUS supports vector graphics.

The REF542PLUS is a custom product based on the REF542 driver SLD with the ability to switch between pulse

and analog modes without loss of encoder position information and torque pulsation.

Communication and interface: with RS232, RS485 bus interface (CAN optional), bus and driver electrical isolation.
