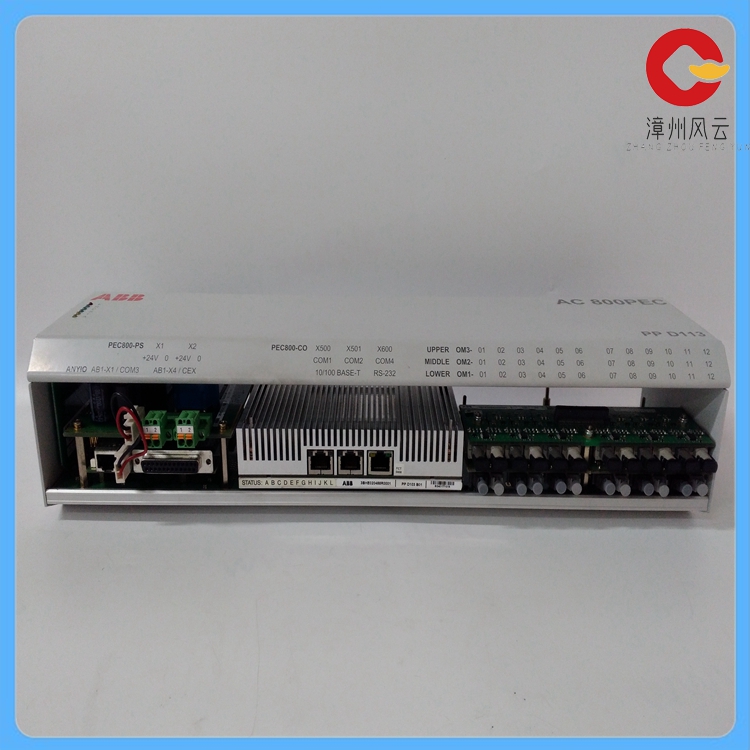

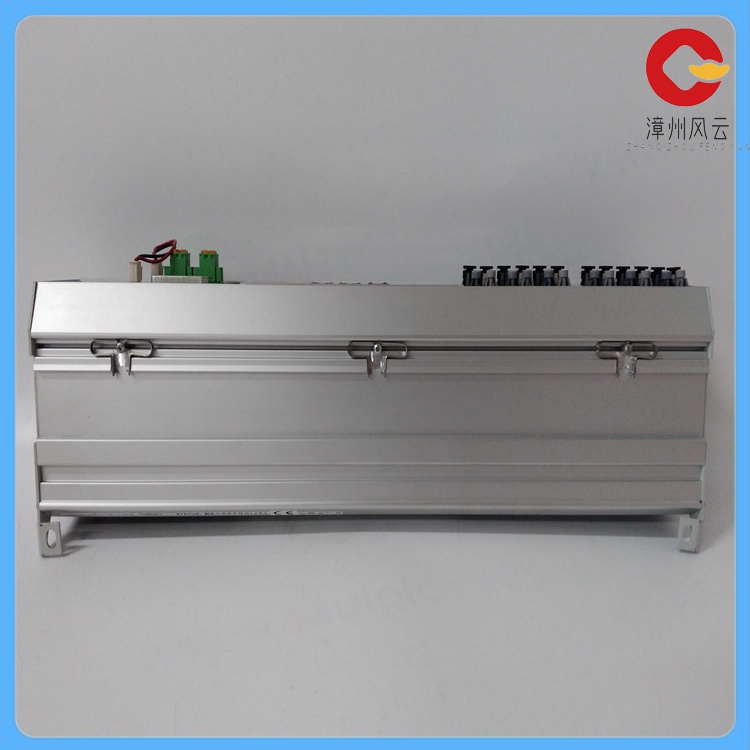

PPD113B01-10-150000 工业处理器 宽冗余双电源

PPD113B01-10-150000是一款工业处理器

具有以下特性和参数：

电接口具有4000V的防雷击保护。

支持1.5A的过流保护和600W的浪涌保护。

工业级设计，并通过了EMC测试认证。

通信与接口：支持逻辑独立双ControlNet总线。

提供1~2路ControlNet BNC-F电口及1~2路155M光纤接口，支持冗余双网的光纤环网拓扑。

光纤接口支持20km以上的传输距离，通信速率可达155Mb/s。

状态指示与报警：提供6个双色LED状态指示灯。

当光纤链路或电源出现故障时，会通过继电器输出告警。

电源与冗余：支持DC9-36V的宽冗余双电源。

DC1500V的电源隔离，提供反接保护。

安装与防护：IP30防护等级，采用波浪纹铝制加强机壳。

使用标准工业35mm导轨安装方式。

网络拓扑结构：支持多种网络连接方式，如点对点通讯、链型网络、星型网络、冗余双网及光纤环网自愈保护等。

软件与应用：本机通常使用的应用软件是AppManager。

应用领域：通常用于电厂、矿场、钢厂等工业环境。

The PPD113B01-10-150000 is an industrial processor

Has the following features and parameters:

Electrical interface with 4000V lightning protection.

Supports 1.5A overcurrent protection and 600W surge protection.

Industrial grade design, and passed the EMC test certification.

Communication and interface: Support logic independent dual ControlNet bus.

Provides one or two ControlNet BNC-F electrical ports and one or two 155M optical fiber ports, supporting the redundant

dual-network optical fiber ring network topology.

The optical fiber interface supports transmission distances of more than 20km and communication rates of up to 155Mb/s.

Status indicator and alarm: 6 two-color LED status indicators are provided.

When the optical fiber link or power supply is faulty, the relay generates an alarm.

Power Supply and redundancy: Support DC9-36V wide redundancy dual power supply.

Power isolation of DC1500V, providing reverse protection.

Installation and protection: IP30 protection grade, using wavy aluminum reinforced case.

Use standard industrial 35mm rail mounting.

Network topology: supports a variety of network connection modes, such as point-to-point communication, chain network,

star network, redundant dual network and self-healing protection of optical fiber ring network.

Software and application: The application software commonly used on this machine is AppManager.

Application: Usually used in power plants, mines, steel mills and other industrial environments.
