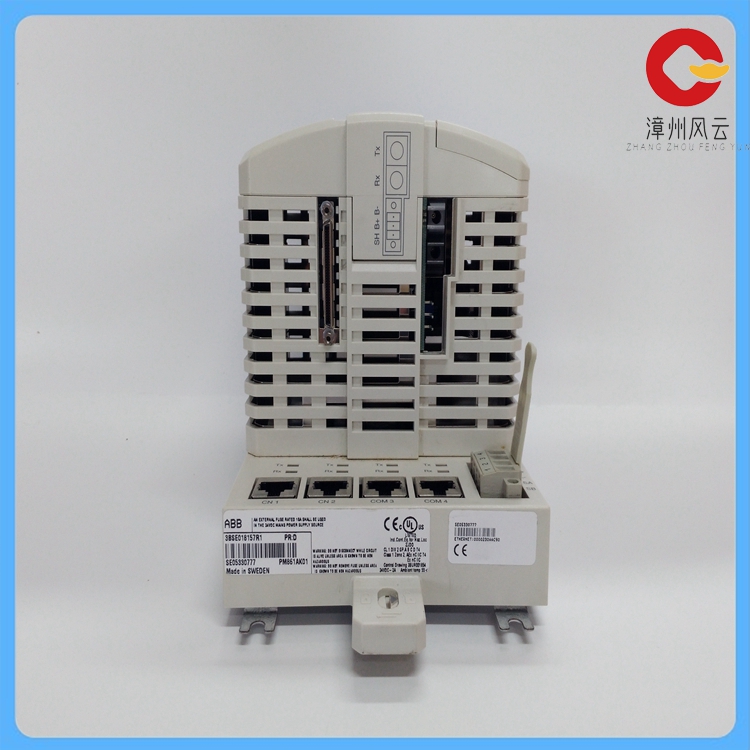

PM861K01 处理器模块 用于工业自动化系统

PM861K01是一款处理器模块，主要用于工业自动化系统。

以下是关于PM861K01的主要参数和特性：

总线消耗电流：80mA

总功耗：3W

输入特性：数字量输入点数为10，额定电压为24V DC。此外，还有持续允许电压和浪涌电压的规格。

输出特性：数字量输出点数为6，输出电压可以是24V DC或250V AC。还有关于额定电流、公共端额定电流、浪涌电流、灯负载、触点机械寿命、输出延时等参数。

处理器与接口：CPU主板包含微处理器和RAM、实时时钟、LED指示灯、启动按钮和紧凑型闪存接口。

PM861A控制器的底板有两个RJ45以太网端口用于连接到控制网络，以及两个RJ45串行端口。其中一个串行端口是带有调制解调器控制信号的RS-232C端口，另一个端口被隔离并用于连接配置工具。

性能与特性：支持CPU冗馀以实现高可用性。

有简单DIN轨道连接/卸料程序，使用唯一的滑道&锁机构。

控制器已获得完整的EMC认证。

模块化设计，允许逐步扩展。

IP20类保护，不需要存储模块。

内置冗馀以太网通信端口。

物理规格：电源供应器：24伏直流。

功率消耗：最大250/430马，功率耗散类型为6.0瓦。

The PM861K01 is a processor module mainly used in industrial automation systems.

Here are the main parameters and features of the PM861K01:

Bus consumption current: 80mA

Total power consumption: 3W

Input characteristics: The number of digital input points is 10, the rated voltage is 24V DC. In addition, there are specifications for continuous allowable voltage and surge voltage.

Output characteristics: The number of digital output points is 6, the output voltage can be 24V DC or 250V AC. Also about the rated current, common end rated current, surge

current, lamp load, contact mechanical life, output delay and other parameters.

Processor and interface: The CPU motherboard contains the microprocessor and RAM, real-time clock, LED indicator, start button, and compact flash interface.

The baseplate of the PM861A controller has two RJ45 Ethernet ports for connecting to the control network, as well as two RJ45 serial ports. One of the serial ports is an

RS-232C port with a modem control signal, and the other port is isolated and used to connect to the configuration tool.

Performance and Features: Supports CPU redundancy for high availability.

There is a simple DIN rail connection/discharge procedure, using a unique slide & lock mechanism.

The controller has obtained full EMC certification.

Modular design allows for gradual expansion.

IP20 protection: no storage module is required.

Built-in redundant Ethernet communication port.

Physical specifications: Power supply: 24 volts DC.

Power consumption: Maximum 250/430 MA, power dissipation type 6.0 watts.
