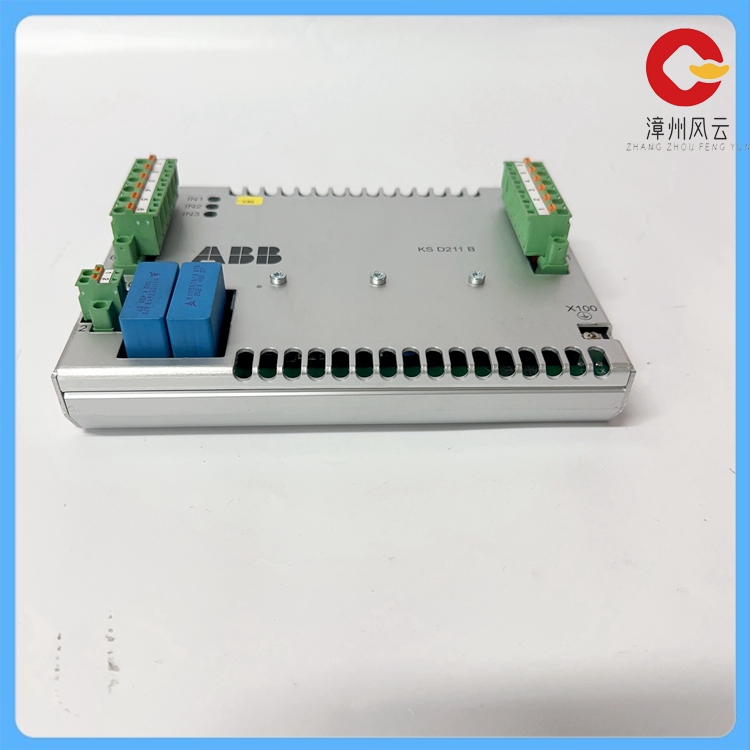

KSD211B 3BHE022455R1101 是一款集电极开路输出模块
以下是对其相关参数的详细描述：
类型与功能：
KSD211B 3BHE022455R1101 是一款集电极开路输出模块。
提供光隔离数字输入、photoMOS继电器输出、继电器触点和集电极开路输出等数字输入输出功能。
兼容性：
提供双看门狗功能，当模块挂起时会自动重置微处理器。
该模块被指定为750-553和750-555，分别传输标准值为0-20mA和4-20mA的模拟信号。
技术特性：
具有12位分辨率、精度高达满量程值的±0.1%。
提供正常/无效测量或操作的LED状态指示。
所有输出共用一个接地电位。
具有短路保护功能。
高达500V的电气隔离输出。
采用笼式弹簧接线技术。
应用领域：
该模块在工业自动化和控制系统中有广泛的应用，如起重机的速度和位置监控。
它
KSD211B 3BHE022455R1101 is a micro-network data acquisition
The following is a detailed description of its related parameters:
Types and functions:
KSD211B 3BHE022455R1101 is an open collector output module.
It provides digital input and output functions such as optical isolation digital input, photoMOS relay output, relay contact and collector open circuit output.
Compatibility:
Provides a dual watchdog function that automatically resets the microprocessor when the module hangs.
The modules are designated 750-553 and 750-555 and transmit analog signals with standard values of 0-20mA and 4-20mA respectively.
Technical features:
With 12-bit resolution and accuracy up to ±0.1% of full scale values.
Provides LED status indication for normal/invalid measurements or operations.
All outputs share a common ground potential.
With short circuit protection function.
Electrical isolated output up to 500V.
Using cage spring connection technology.
Application field:
The module has a wide range of applications in industrial automation and control systems, such as speed and position monitoring of cranes.
It is also suitable for industrial automation production lines, robot control systems, energy management systems and other scenarios.
