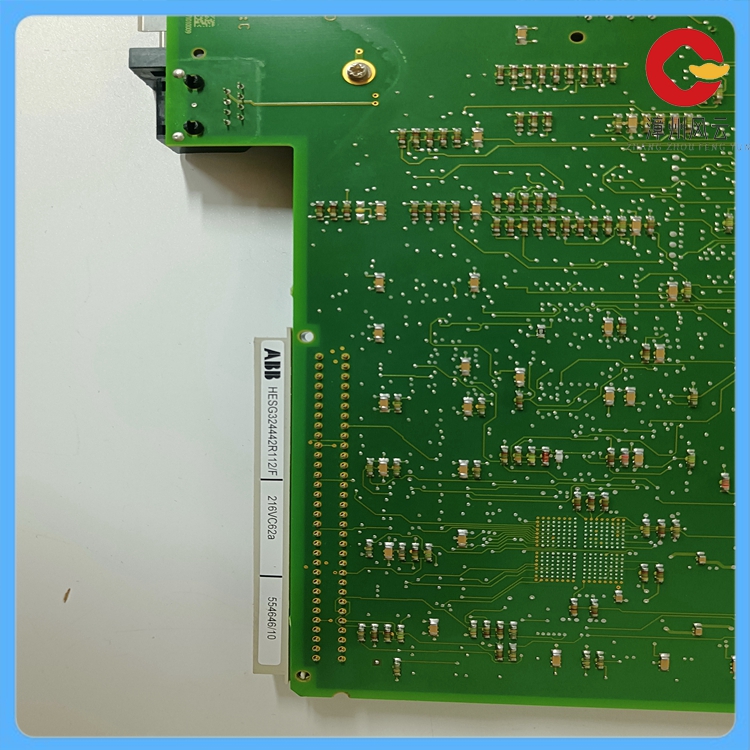

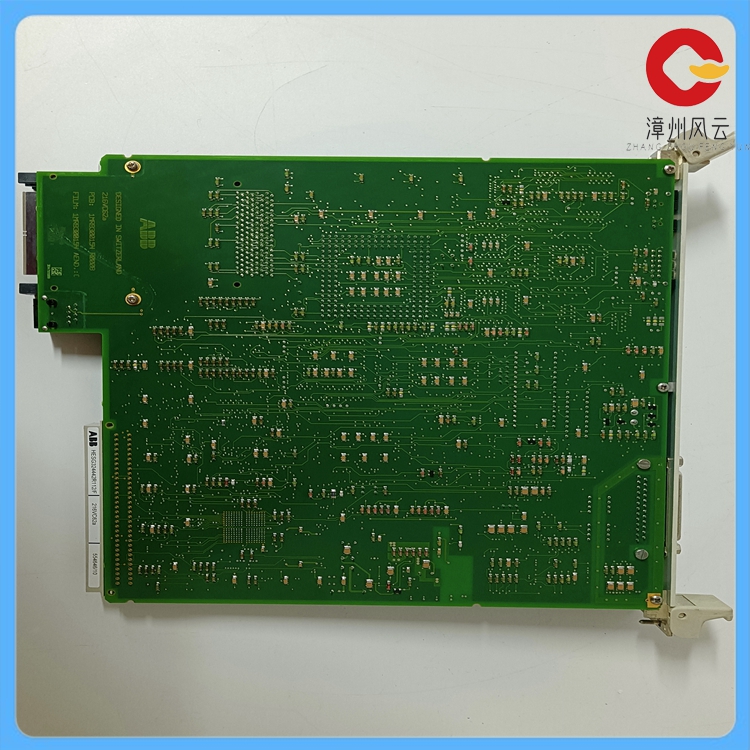

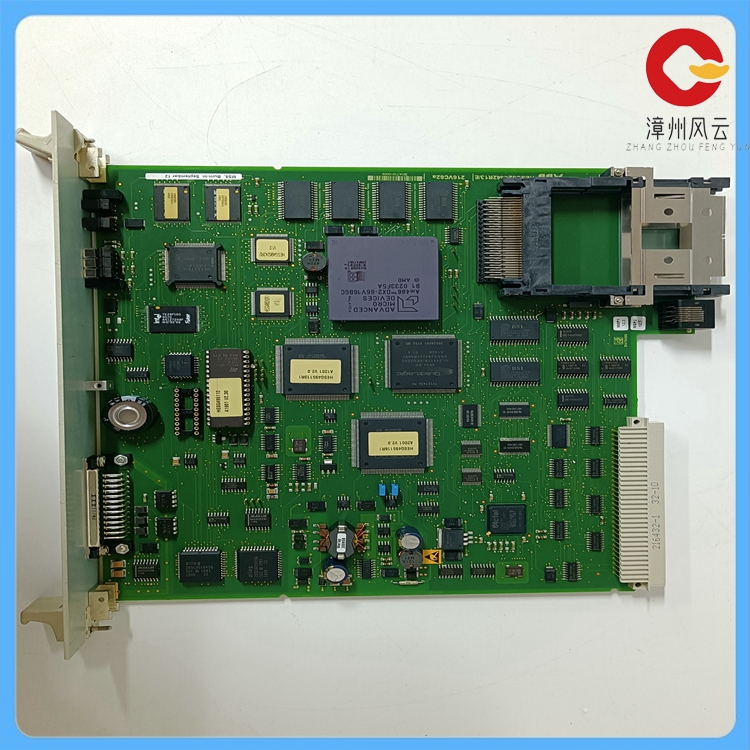

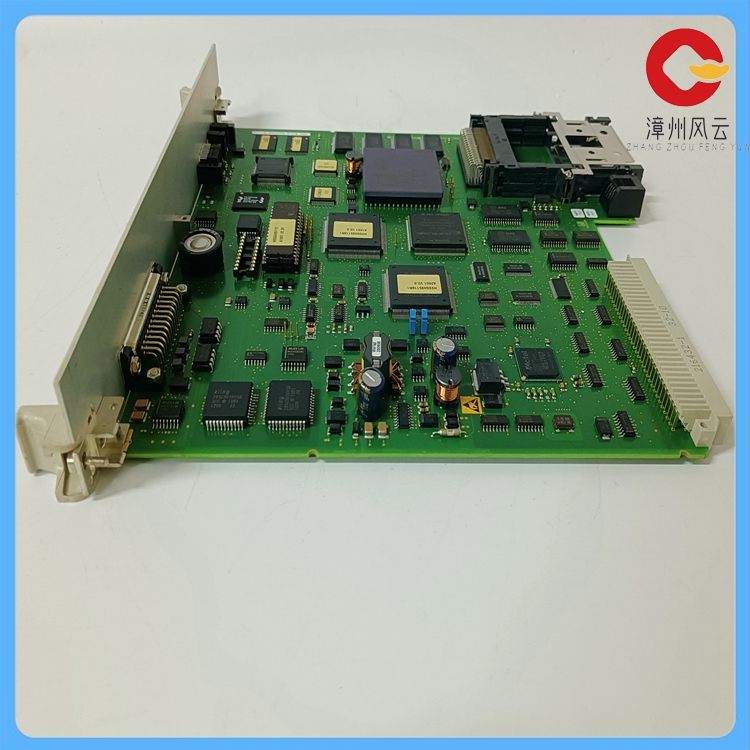

216VC62A HESG324442R13/E HESG324442R112/F 高压变频器卡件

(1)输入接口:
光电耦合器由两个发光二极度管和光电三极管组成。
发光二级管:在光电耦合器的输入端加上改变的电信号，发光二极管就发生与输入信号改变规则相同的光信号,光电三级管:在光信号的照射下导通，导通程度与光信号的强弱有关。在光电耦合器的线性作业区内，输出信号与输入信号有线性关系输入接口电路作业进程:当开关合上，二极管发光，然后三极管在光的照射下导通，向内部电路输入信号。当开关断开，二极管不发光，三极管不导通。向内部电路输入信号。也就是通过输入接口电路把外部的开关信号转化成PLC内部所能承受的数字信号。
(2)输出接口
PLC的继电器输出接口电路
作业进程;当内部电路输出数字信号1，有电流流过，继电器线圈有电流，然后常开触点闭合，提供负载导通的电流和电压，当内部电路输出数字信号0则没有电流流过，继电器线圈没有电流，然后常开触点断开，断开负载的电流或电压，也就是通过输出接口电路把内部的数字电路化成一种信号使负载动作或不动作。
"ABB 216VC628 HESG324442R13E"和"HESG324442R112F"是ABB高乐变频器卡件的类型或编码，这些卡件一般用于高乐电力变频器体系，以操控电机的速度和频率，以及完成,电力体系Q的节能和操控。以下是这些卡件可能涉及的一些信息和功能:
1.高压电力变频器操控:这些卡件一般用于高压变频器体系，允许用户操控电动机的速度和频率，以适应不同的工业使用需求。
2.电力体系节能:通过使用变频器操控，可以完成更高效的电机运转，然后降低能源消耗和运转成本。
3.通讯接口:这些卡件一般配备各种通讯接口，以便与其他操控体系、监控体系或上级操控体系进行数据通讯和协作。
4.安全性和可靠性:高压变频器卡件需求具备高度的安全性和可靠性，以保证电力体系的稳定性和安全性,
5.装备和编程:用户一般可以通过装备和编程来适应特定的工业使用需求，这使得这些卡件十分灵敏,
6.工业标准:这些卡件一般契合工业标准和标准，以保证与其他设备和体系的互操作性。

(1) Input interface:

The photocoupler consists of two light-emitting diode tubes and a phototriode.

Light-emitting diode: in the input end of the photoelectric coupler plus a changed electrical signal, the light-emitting diode occurs and the input signal changes the same light signal, photoelectric triplet: under the irradiation of the light signal, the degree of conduction is related to the strength of the light signal. In the linear operating area of the photoelectric coupler, the output signal and the input signal have a wired relationship. The input interface circuit operation process: when the switch is closed, the diode emits light, and then the transistor is switched on under the light irradiation to input signals to the internal circuit. When the switch is off, the diode does not emit light and the triode does not conduct. Feed a signal into the internal circuit. That is, through the input interface circuit, the external switching signal is converted into the digital signal that the PLC can withstand.

(2) Output interface

PLC relay output interface circuit

Job process; When the internal circuit outputs the digital signal 1, there is current flowing, the relay coil has current, and then the normally open contact is closed, providing the current and voltage of the load. When the internal circuit outputs the digital signal 0, there is no current flowing, the relay coil has no current, and then the normally open contact is disconnected, and the current or voltage of the load is disconnected. That is, through the output interface circuit, the internal digital circuit is turned into a signal to make the load act or not act.

"ABB 216VC628 HESG324442R13E" and "HESG324442R112F" are the types or codes of ABB Clore drive cards, which are generally used in Clore power drive systems to control the speed and frequency of the motor, as well as to achieve the energy saving and control of the power system Q. Here are some of the information and features that these cards may involve:

1. High voltage power inverter control: These cards are generally used in high voltage inverter systems, allowing users to control the speed and frequency of the motor to adapt to different industrial needs.

2. Power system energy saving: Through the use of inverter control, more efficient motor operation can be completed, and then reduce energy consumption and operating costs.

3. Communication interface: These cards are generally equipped with various communication interfaces for data communication and collaboration with other control systems, monitoring systems or superior control systems.

4. Safety and reliability: High voltage inverter card needs to have a high degree of safety and reliability to ensure the stability and safety of the power system,

5. Equipment and programming: users can generally adapt to specific industrial use needs through equipment and programming, which makes these cards very sensitive,

6. Industrial standards: These cards generally conform to industrial standards and standards to ensure interoperability with other equipment and systems.
