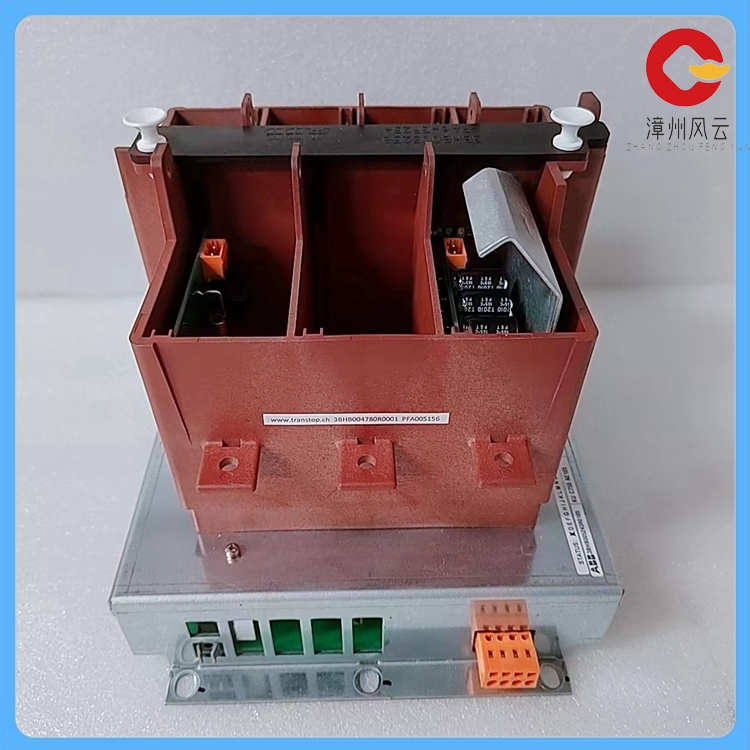

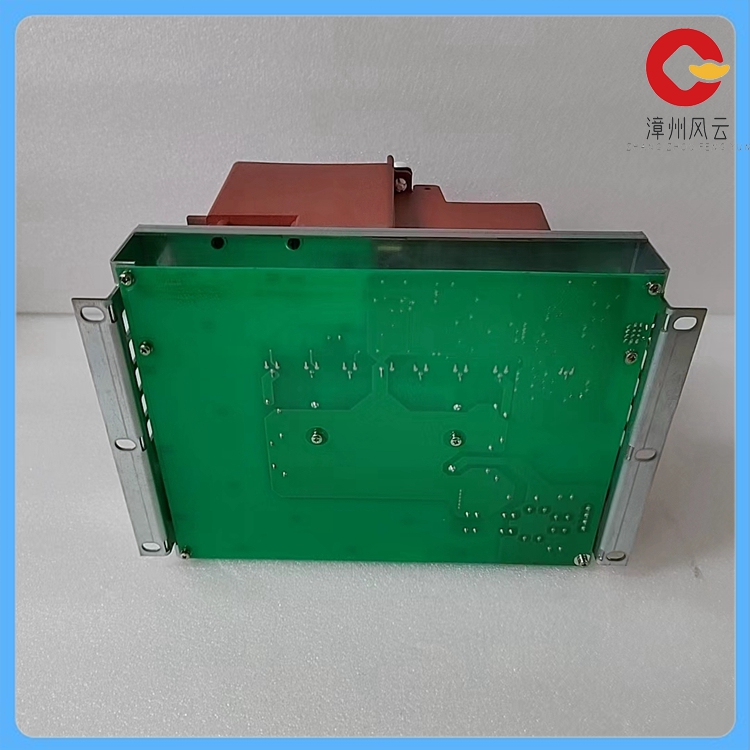

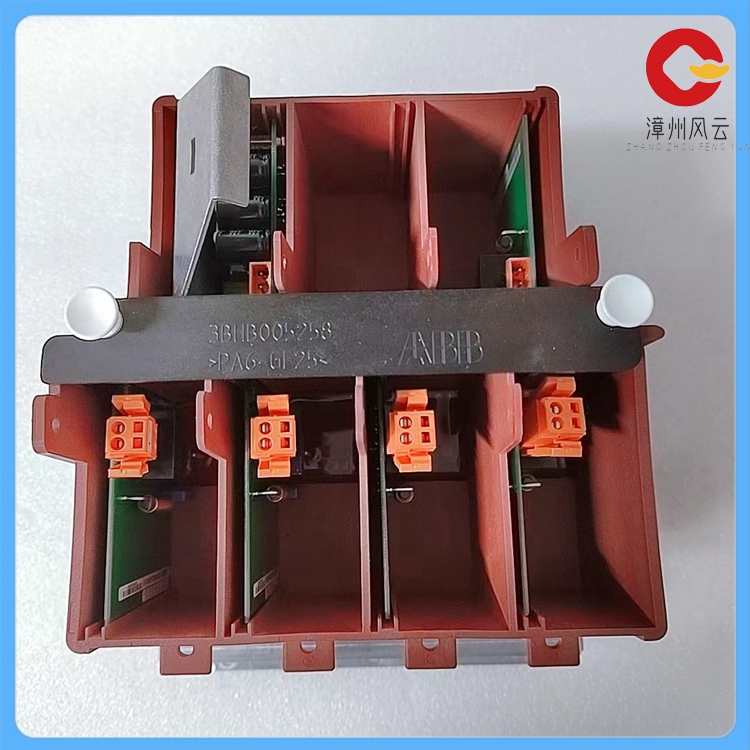

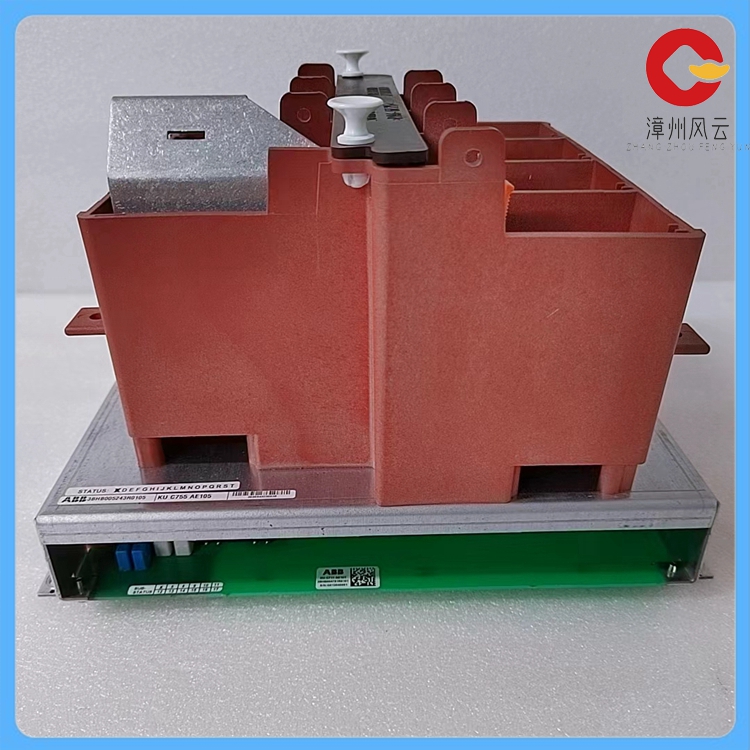

KUC755AE105 3BHB005243R0105 控制和监测功能。

产品参数

类型:KUC755AE105 3BHB005243R0105+ABB

品牌:ABB

适用范围:工业自动化

输入电压:24V DC

输出电压:24V DC

输出电流:5A最大功率:120W

工作温度:-25℃℃~+70℃℃

存储温度:-40℃C~+85°C

装置方法:插入式

产品重量:约0.1kg

PLC技能相关理论

LC技能自动操控功用的实现，需求有硬件与软件支撑，其中软件中的使用软件可由用户自行编写，以完成相关操控工作。

1.1 PLC体系硬件构成

PLC在电气设备自动化操控中的使用基于PLC体系，该体系的硬件部分由基本操控单元、扩展单元、编程器等构成，其中基本操控单元包括中央处理器。存储器、I/0模块、外围接口、电源等硬件。扩展单元用于增加特殊功用或!/0模块数量，以更好的满意实践自动化操控需求，如网络通信、高速计数、定位操控等。编程器则供用户输入、调试操控程序。

1.2 PLC体系软件构成

PLC体系软件是其工作所用各种程序的组合，分为体系软件与使用软件，其中体系软件为体系的办理程度与用户指令解说的程序，由制造厂家负责编写被固化在体系的程序存储器中，用户不能直接讲行修正与读写。使用软件是用户依据操控要求，采用PLC编程言语编制的程序。PLC编程言语言语品种较多，总的可分为用图形符号表达程序、用文字符号表达程序

Product parameter

Type :KUC755AE105 3BHB005243R0105+ABB

Brand :ABB

Application: Industrial automation

Input voltage :24V DC

Output voltage :24V DC

Output current :5A Maximum power :120W

Operating temperature :-25℃ ~+70℃

Storage temperature :-40 °C ~+85°C

Device method: Insert type

Weight: about 0.1kg

PLC skill related theory

The realization of the automatic control function of LC skill requires hardware and software support, in which the software used in the software can be written by the user to complete the relevant control work.

1.1 Hardware structure of PLC system

The use of PLC in the automatic control of electrical equipment is based on the PLC system, the hardware part of the system is composed of the basic control unit, the expansion unit, the programmer, etc., the basic control unit includes the central processor. Memory, I/0 module, peripheral interface, power supply and other hardware. Expansion unit for adding special features or! The number of modules /0, in order to better satisfy the practice of automation control needs, such as network communication, high-speed counting, positioning control, etc. The programmer allows the user to input and debug the control program.

1.2 PLC system software composition

PLC system software is a combination of various programs used in its work, which is divided into system software and use software, wherein the system software is the program explaining the management degree of the system and the user's instructions, which is written by the manufacturer and is fixed in the program memory of the system, and the user can not directly talk about the line correction and reading and writing. The use of software is the user according to the control requirements, using PLC programming language to compile the program. There are many varieties of PLC programming language, which can be divided into graphical symbols to express programs and text symbols to express programs
