XVC767AE102 模块

XVC767AE102 模块安装尺寸:该模块具有特定的安装尺寸,正确安装后,其高度为8.03英寸,深度为5.99英寸,宽度为2.17英寸。这些尺寸为其安装和集成

产品详情

XVC767AE102 模块

安装尺寸:该模块具有特定的安装尺寸,正确安装后,其高度为8.03英寸,深度为5.99英寸,宽度为2.17英寸。这些尺寸为其安装和集成到整个系统架构中提供了指导。

**HMI(人机界面)**:支持ControlST V07.00.00C或更高版本作为人机界面,促进了模块和操作员之间的交互,实现系统的直观控制、监控和配置。

内存:配备了4 GB DDR3-1333 SDRAM内存,为高效数据管理提供了充足的空间,使模块能够有效处理复杂的控制算法和计算。

以太网端口数量:共有六个以太网端口,其中五个位于前面板上,方便网络访问。模块底部还有一个专门用于Predix连接的以太网端口,有助于模块与网络内其他设备或系统之间的无缝通信和数据交换。

NVSRAM:包含NVSRAM,其中有3067个非易失性程序变量、64个累加器和338个力。NVSRAM允许模块在断电或系统故障时保留关键信息,确保数据完整性和可靠性。

平台配置支持的功能:支持EFA(嵌入式功能自动化)、嵌入式EtherCAT(控制自动化技术以太网)和嵌入式PPNG(Predix 过程和通知网关)作为其平台配置功能,增强了模块在复杂工业控制系统中的连接性、兼容性和整体性能。

存储温度:设计可承受-40至85摄氏度的广泛存储温度,确保其耐用性和长期可靠性。

双光接口:XVC767AE102支持光纤传输Profibus DP总线,具有对等传输、数据、总线仲裁等功能,同时实现高速率长距离传输、电气及地线隔离、降低干扰等性能。此外,它还具有工业级设计、IP30防护等级、多种接口选择、灵活的光纤环网拓扑、长距离可靠传输、多种保护机制等特点。

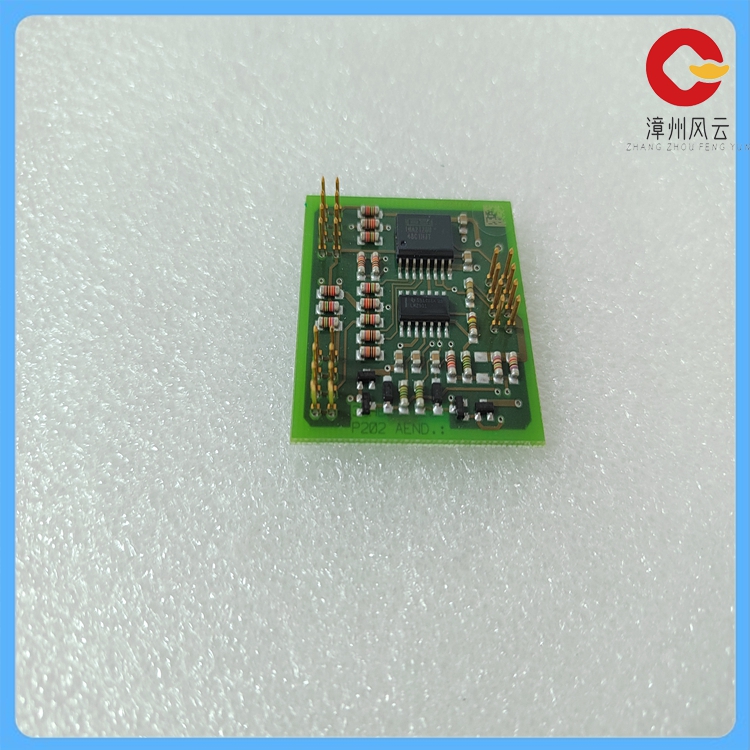

XVC767AE102 3BHB007209R0102(6).jpg

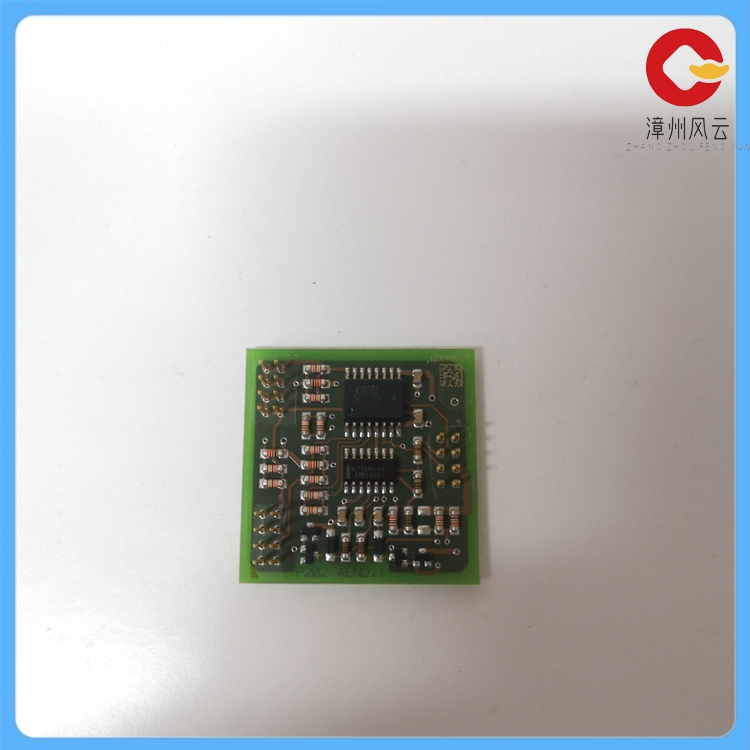

ABB XVC767AE102 3BHB007209R0102 (4).jpg

XVC767AE102 module

Mounting size: The module has a specific mounting size, and when properly installed, its height is 8.03 inches, its depth is 5.99 inches, and its width is 2.17 inches. These dimensions provide guidance for its installation and integration into the overall system architecture.

**HMI(Human Machine Interface)** : Supports ControlST V07.00.00C or later as a human machine interface that facilitates interaction between modules and operators for intuitive control, monitoring, and configuration of the system.

Memory: Equipped with 4 GB DDR3-1333 SDRAM memory, it provides ample space for efficient data management, enabling the module to efficiently handle complex control algorithms and calculations.

Number of Ethernet ports: There are six Ethernet ports, five of which are located on the front panel for easy network access. There is also an Ethernet port on the bottom of the module dedicated to Predix connectivity, which facilitates seamless communication and data exchange between the module and other devices or systems within the network.

NVSRAM: Contains NVSRAM, which has 3067 non-volatile program variables, 64 accumulators and 338 forces. NVSRAM allows modules to retain critical information in the event of a power outage or system failure, ensuring data integrity and reliability.

Features Supported by Platform Configuration: Support for EFA (Embedded Functional Automation), embedded EtherCAT (Ethernet for Control Automation Technology), and embedded PPNG (Predix Process and Notification Gateway) as their platform configuration features enhances module connectivity, compatibility, and overall performance in complex industrial control systems.

Storage temperature: Designed to withstand a wide range of storage temperatures from -40 to 85 degrees Celsius, ensuring durability and long-term reliability.

Dual optical interface: XVC767AE102 supports optical fiber transmission of the Profibus DP bus, with peer transmission, data, bus arbitration and other functions, while realizing high-speed long-distance transmission, electrical and ground line isolation, reduce interference and other performance. In addition, it also has industrial grade design, IP30 protection rating, multiple interface options, flexible fiber ring network topology, reliable transmission over long distances, and multiple protection mechanisms.
