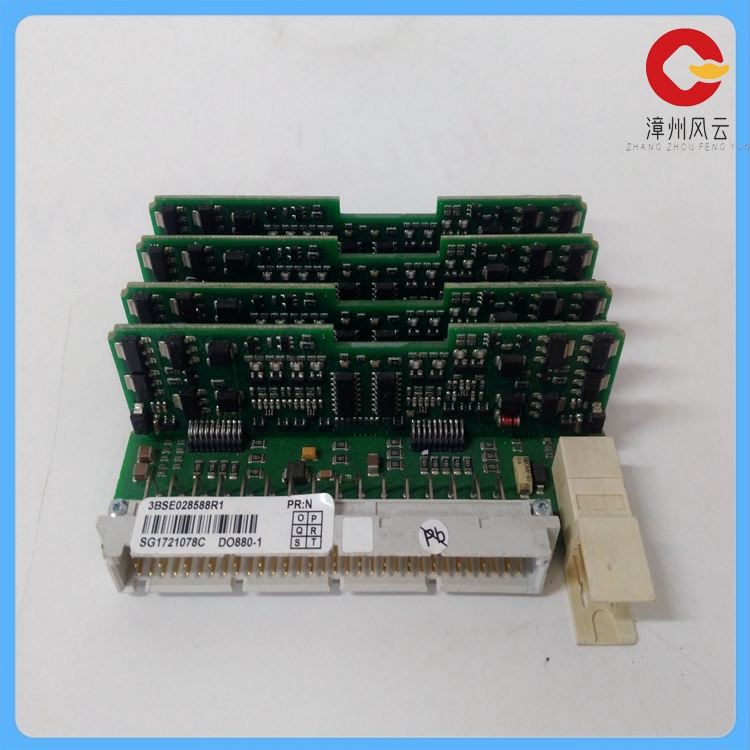

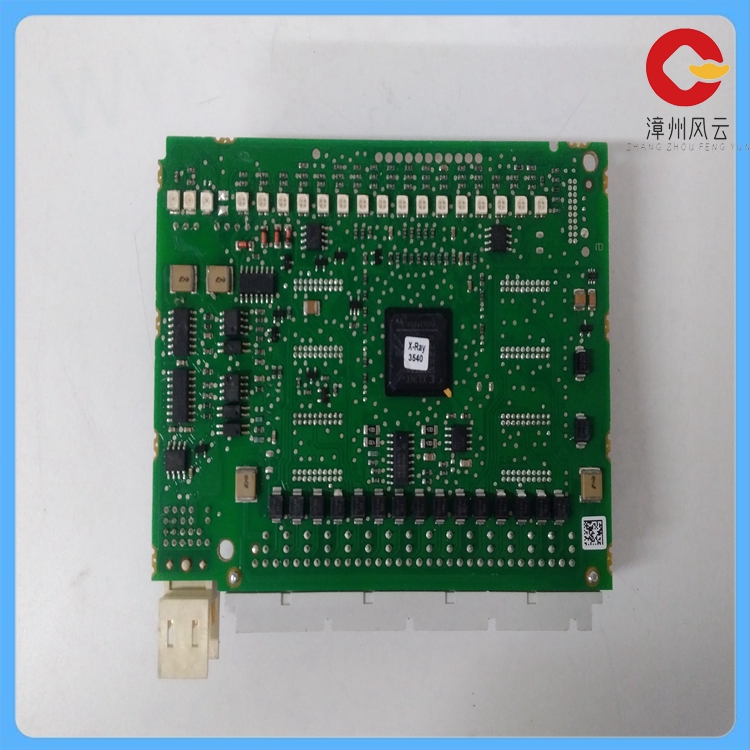

DO880 数字输出模块

DO880 3BSE028602R1是一个16通道24V数字输出模块，专为单个或冗余应用程序设计。

DO880 3BSE028602R1具备以下主要特性和参数：

通道数与输出能力：该模块拥有16个输出通道，每个通道能够处理24V的直流电流源输出，最大连续输出电流为0.5A。

保护功能：每个输出通道都配备了高侧驱动器，具备电流限制和保护功能，以防止温度过高。此外，它还包括EMC保护组件、电感负载抑制以及输出状态指示LED等特性。

诊断与容错：该模块支持回路监测，可以监控具有可配置限值的短路和开路负载。同时，它还具有输出开关无脉冲的诊断功能以及高级车载诊断能力。输出驱动器的容错率为1，符合IEC 61508的标准。

认证与标准：DO880 3BSE028602R1模块根据IEC 61508认证为SIL3，并根据EN 954-1认证为4类，这证明了其高可靠性和安全性。

应用领域：DO880 3BSE028602R1由于其卓越的性能和稳定性，该模块广泛应用于石油、火电、核电、新能源、风电、船舶、交通、电力、钢铁工业等领域的大型伺服模块、DCS分布式控制系统、

中高压变频器、PLC可编程控制系统等场景中。

安装与规格：DO880 3BSE028602R1该模块支持DIN导轨安装，工作温度范围为-40℃至+70℃，存储温度范围为-40℃至+85℃。其防护等级为IP20，具备4g (10-500Hz)的抗震能力和30g的抗冲击能力。

DO880 3BSE028602R1 其重量为0.5kg，尺寸为12.5 x 9 x 6 cm，设计寿命为10年。

The DO880 3BSE028602R1 is a 16-channel 24V digital output module designed for single or redundant applications.

The DO880 3BSE028602R1 has the following key features and parameters:

Number of channels and output capacity: The module has 16 output channels, each capable of handling 24V DC current source output, with a maximum continuous output current of 0.5A.

Protection: Each output channel is equipped with a high-side driver with current limiting and protection to prevent excessive temperatures. In addition, it includes features such as EMC protection

components, inductive load suppression, and output status indicator leds.

Diagnostics and fault tolerance: The module supports loop monitoring and can monitor short and open loads with configurable limits. At the same time, it also has the diagnostic function of the

output switch without pulse and advanced on-board diagnostic capability. The output driver has a fault tolerance of 1, according to IEC 61508.

The DO880 3BSE028602R1 module is certified as SIL3 according to IEC 61508 and Category 4 according to EN 954-1, which proves its high reliability and safety.

Application field: DO880 3BSE028602R1 Due to its excellent performance and stability, the module is widely used in petroleum, thermal power, nuclear power, new energy, wind power, shipbuilding,

transportation, electric power, iron and steel industry and other fields of large servo module, DCS distributed control system, medium and high voltage inverter, PLC programmable control system and other scenarios.

Installation and Specifications: DO880 3BSE028602R1 The module supports DIN rail mounting, operating temperature range from -40 ° C to +70 ° C, storage temperature range from -40 ° C to +85 ° C.

Its protection class is IP20, with 4g (10-500Hz) earthquake resistance and 30g impact resistance. The DO880 3BSE028602R1 weighs 0.5kg, measures 12.5 x 9 x 6 cm and has a design life of 10 years.
