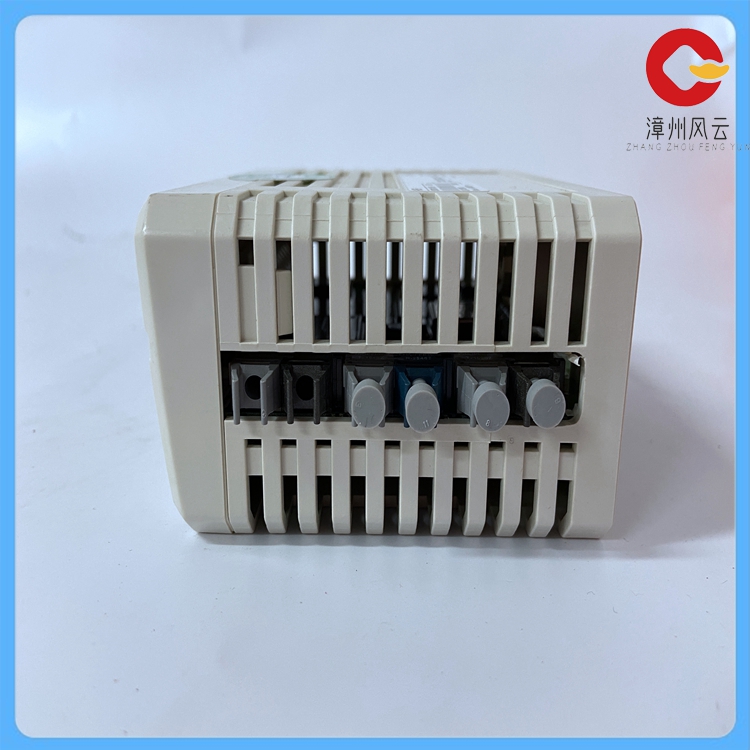

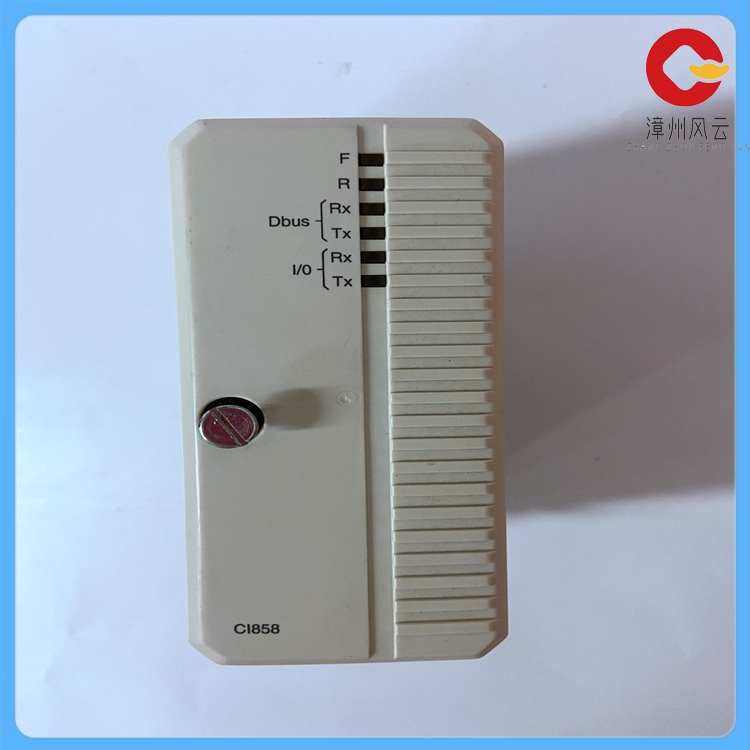

CI858 3BSE018136R1 驱动总线接口

CI858 3BSE018136R1  驱动总线接口

储存和运输温度：最大储存温度为**+85℃**。

抗振性：依据EN 60068-2-6:10，频率为55 Hz，振幅为0.35 mm，± 15 %。

工作温度：范围从**-10℃到55℃**。

安全等级：SIL 3 - SILCL 3 - PL e - Cat. 4。

信号输出：CI858 3BSE018136R1  具有2个OSSDPNP（400 mA, 24 VDC下）的输出，带短路、过载、奇偶性反向保护功能。

可编程信号输出：2个PNP（100 mA）。

测试输出：4个。

电源：24 VDC ± 20%。

尺寸：高度为108 mm，宽度为22.5 mm，深度为114.5 mm。

防护等级：外壳为IP 20，接线板为IP 2X。

连接：CI858 3BSE018136R1  支持可拆卸接线板和螺钉触点，具有导轨紧固功能，符合EN 50022-35标准。

功能：CI858 3BSE018136R1  作为主单元，可以控制更复杂的系统，为具有多个传感器的大型机械提供保护；作为独立单元，可以控制连接多达4个安全装置的小型机械。

CI858 3BSE018136R1 还支持7H表面硬度防刮擦，并且通常用于产业自动化体系中，以监测和掌握各种历程变量和装备。

CI858 3BSE018136R1 Driver bus interface

Storage and transportation temperature: The maximum storage temperature is **+85℃**.

Vibration resistance: according to EN 60068-2-6:10, the frequency is 55 Hz, the amplitude is 0.35 mm, ± 15%.

Operating temperature: range from **-10℃ to 55℃**.

Safety rating: SIL 3-SILCL 3-PL e-Cat.4.

Signal output: CI858 3BSE018136R1 has 2 OSSDPNP (400 mA, 24 VDC) outputs, with short circuit, overload, parity reverse protection functions.

Programmable signal output: 2 PNP (100 mA).

Test output: 4.

Power supply: 24 VDC ± 20%.

Dimensions: Height 108 mm, width 22.5 mm, depth 114.5 mm.

Protection level: IP 20 for the shell and IP 2X for the terminal panel.

Connection: CI858 3BSE018136R1 supports detachable patch panels and screw contacts with rail fastening, in accordance with EN 50022-35.

Function: CI858 3BSE018136R1 as the main unit, can control more complex systems, provide protection for large machinery with multiple sensors; As a separate

 unit, small machinery connected to up to 4 safety devices can be controlled.

The CI858 3BSE018136R1 also supports 7H surface hardness scratch resistance and is commonly used in industrial automation systems to monitor and master

various process variables and equipment.
