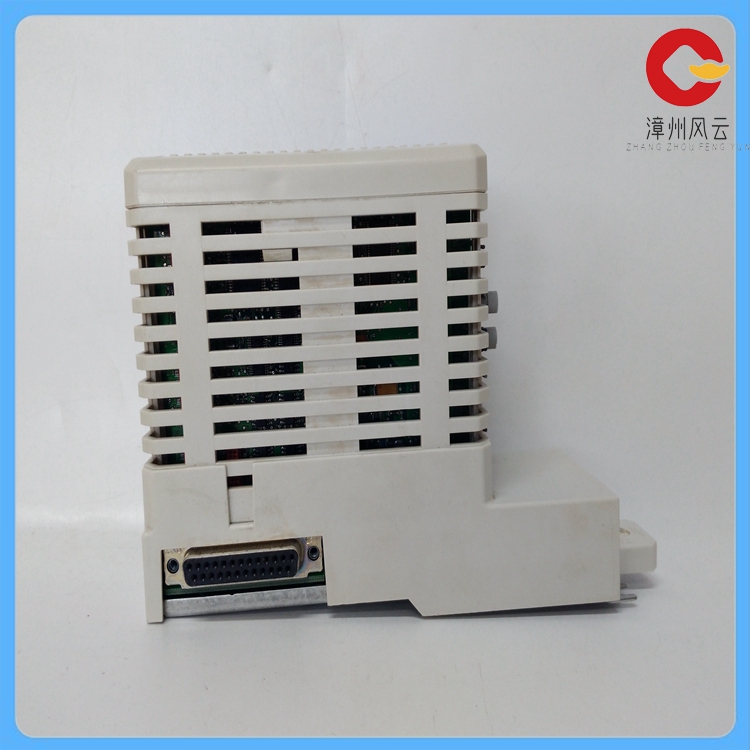

CI856 通讯模块
功耗：在典型情况下，CI856的功耗为2.9W，最大功耗为5.0W。
电流消耗：从CEX总线24VDC的电流消耗为120mA，最大电流消耗为200mA。
尺寸：宽度为59mm，高度为185mm，深度为127.5mm。
重量：产品净重为0.55公斤，带包装重量为0.7公斤。
防护等级：根据EN60529和IEC 529标准，防护等级为IP20。
CI856K01还支持HART路由和运行期间的热配置，并且由处理器单元通过CEX总线供电，因此不需要额外的外部电源。
CI856 用于控制和监测张力控制系统中的张力参数，例如作为张力控制器使用。
CI856 communication module
Power consumption: Under typical conditions, the CI856 consumes 2.9W, with a maximum power consumption of 5.0W.
Current consumption: The current consumption from the CEX bus 24VDC is 120mA, and the maximum current consumption is 200mA.
Dimensions: Width 59mm, height 185mm, depth 127.5mm.
Weight: The net weight of the product is 0.55 kg, with packaging weight is 0.7 kg.
Protection Class: According to EN60529 and IEC 529 standards, the protection class is IP20.
The CI856K01 also supports HART routing and hot configuration during operation, and is powered by the processor unit via the CEX bus, so no additional external power is required.
The CI856 is used to control and monitor tension parameters in tension control systems, for example as a tension controller.
