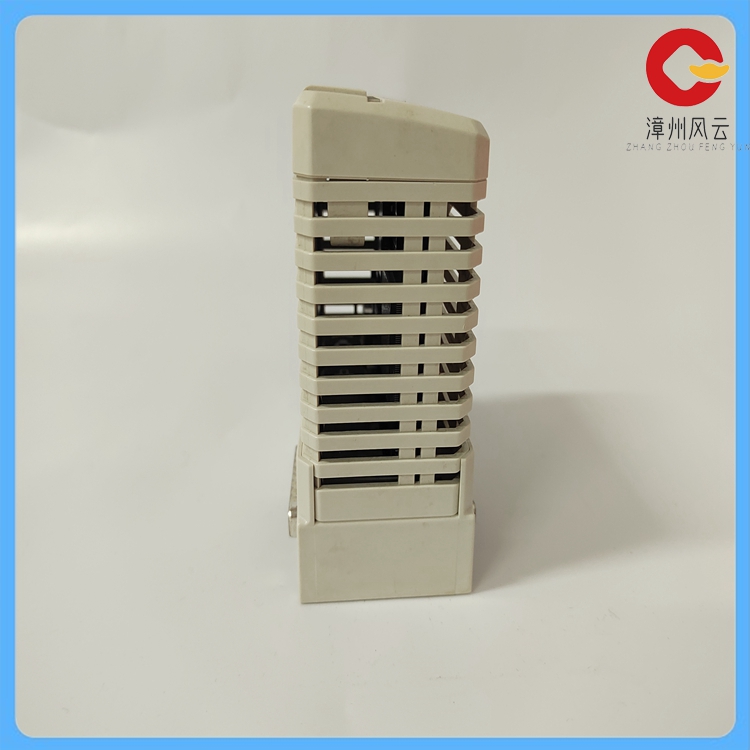

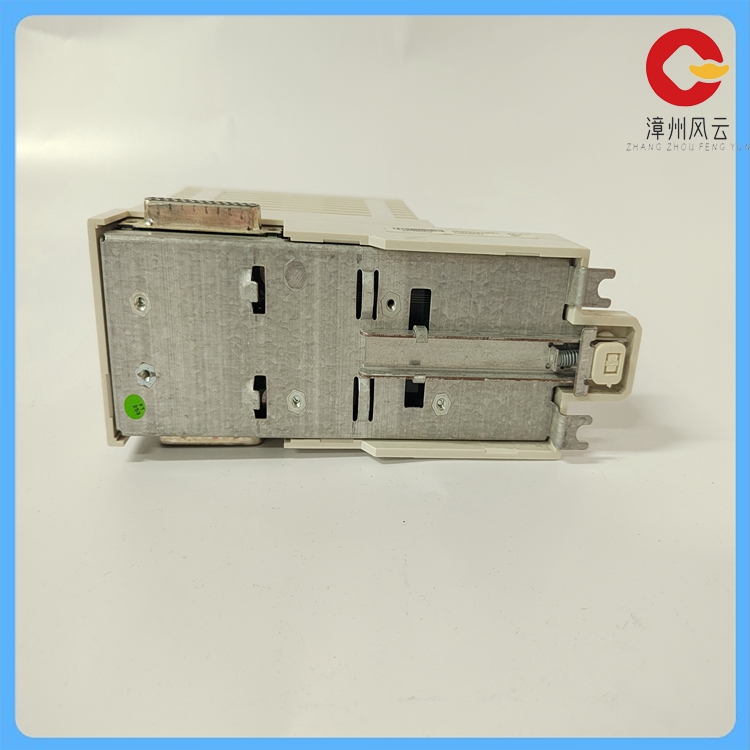

CI855K01 模块

CI855K01 模块

传输速度：10兆比特/秒，最大数据集传输速度为200个数据集/秒。

CEX总线上的最大单位：12个。

连接器：RJ-45内螺纹(8针)。

功耗：CI855K01 在典型DC24V工作电压下，功耗较小。

防护等级：CI855K01 根据IEC 529 EN60529标准，为IP20。

尺寸：CI855K01 大致为18.5厘米（高）× 5.9厘米（宽）× 12.75厘米（深）。

重量：0.7千克（净重），1.5千克（装运重量）。

CI855K01还具有一些高级特性，如高精度传感器和高性能14位AD采集芯片，轻触式面板按键操作，实时显示输出电流和时间结果，完善的过流保护等。

CI855K01 modules

Transfer speed: 10 megabits/SEC, maximum data set transfer speed of 200 data sets/SEC.

Maximum unit on the CEX bus: 12.

Connector: RJ-45 internal thread (8 pins).

Power consumption: The CI855K01 has low power consumption at typical DC24V operating voltage.

Protection class: CI855K01 According to IEC 529 EN60529 standard, IP20.

Dimensions: The CI855K01 is approximately 18.5 cm (height) x 5.9 cm (width) x 12.75 cm (depth).

Weight: 0.7 kg (net), 1.5 kg (shipping weight).

The CI855K01 also has some advanced features, such as a high-precision sensor and high-performance 14-bit AD acquisition chip, light-touch

panel key operation, real-time display of output current and time results, and complete overcurrent protection.
