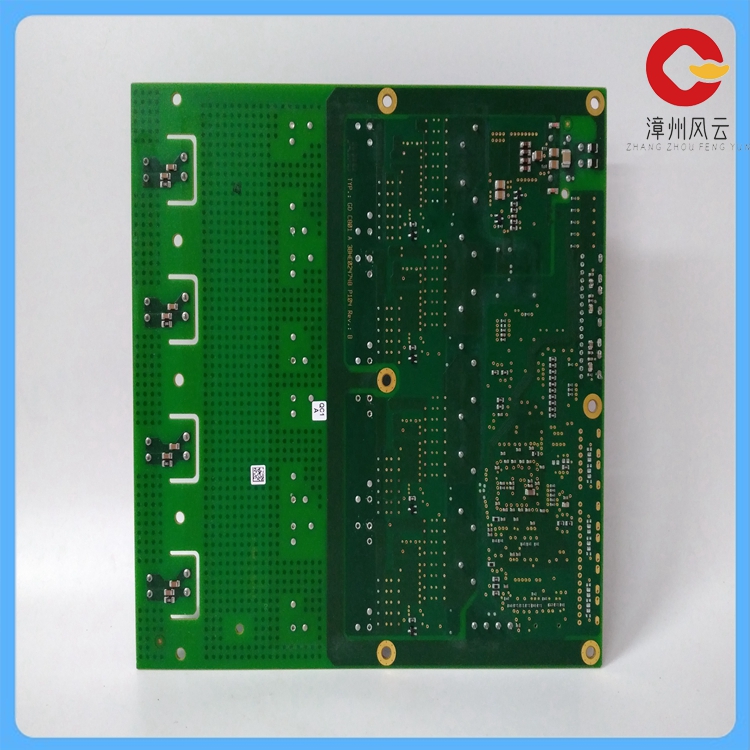

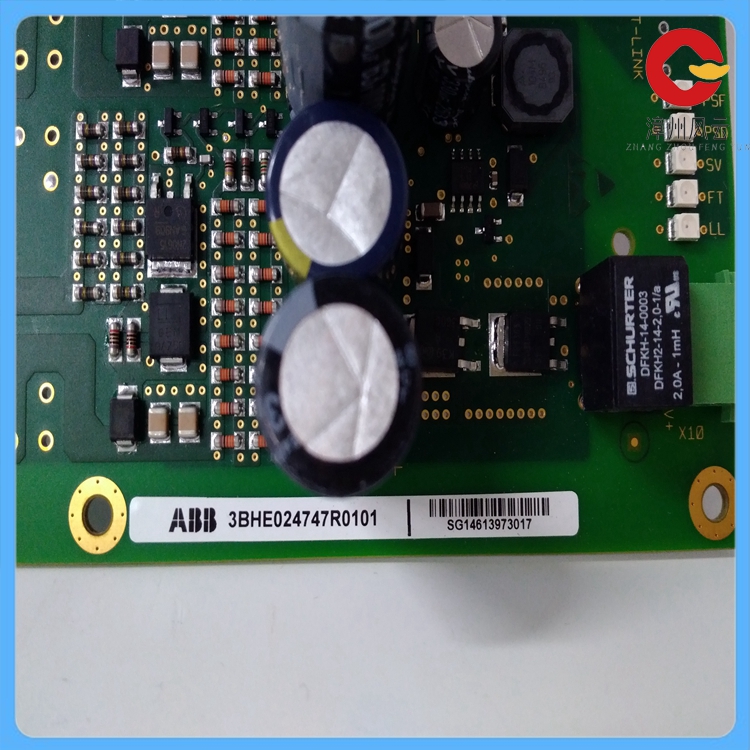

3BHE024747R0101 模拟量模块

3BHE024747R0101是一种模拟量模块，通常用于工业自动化和控制系统中，以接收和处理模拟信号。

以下是关于3BHE024747R0101模拟量模块的一些参数和特性：

信号输入：

这种模块通常具有多个模拟信号输入通道，用于连接各种传感器和测量设备。

每个通道可以接收模拟信号，通常以电压或电流的形式表示。

信号处理：

模块会对输入的模拟信号进行信号处理，包括放大、滤波、线性化和数字化，以将模拟信号转换为数字信号，以便于控制系统的处理和分析。

数据传输：

处理后的数字信号可以通过通信接口传输到监控系统、控制器或数据采集系统中，以进行实时监测和记录。

可编程性：

一些模拟量模块具有可编程功能，允许用户根据特定的应用需求进行配置和定制。这可能包括校准、量程设置和报警配置等。

可靠性：

这种类型的模块通常具有高可靠性，以适应工业环境中的连续运行要求。

物理特性：

外形尺寸通常为96×48×100mm，开孔尺寸为92×45mm。

电源可以是AC220v或DC24v（需定制）。

工作环境通常要求温度为0℃~50℃，湿度低于90%R.H，不结露。

测量与控制：

显示范围：-1999~9999，小数点位置可设定。

测量控制周期：0.2秒。

报警与输出：

报警输出：2点继电器输出。

变送输出：1路4-20mA信号输出。

3BHE024747R0101 is an analog module commonly used in industrial automation and control systems to receive and process analog signals.

The following are some of the parameters and features of the 3BHE024747R0101 analog module:

Signal input:

Such modules typically have multiple analog signal input channels for connecting various sensors and measuring devices.

Each channel can receive an analog signal, usually in the form of a voltage or current.

Signal processing:

The module will carry out signal processing on the input analog signal, including amplification, filtering, linearization and digitization, to convert the analog

signal into a digital signal for the processing and analysis of the control system.

Data transfer:

The processed digital signal can be transmitted to the monitoring system, controller or data acquisition system through the communication interface for real-time monitoring and recording.

Programmability:

Some analog modules have programmable features that allow users to configure and customize them for specific application needs. This may include calibration, range Settings, alarm configuration, etc.

Reliability:

This type of module usually has high reliability to meet the requirements of continuous operation in industrial environments.

Physical characteristics:

The overall size is usually 96×48×100mm, and the opening size is 92×45mm.

The power supply can be AC220v or DC24v (customized).

The working environment usually requires a temperature of 0℃~50℃, humidity below 90%R.H, no condensation.

Measurement and control:

Display range: -1999~9999, decimal point position can be set.

Measurement control period: 0.2 seconds.

Alarm and output:

Alarm output: 2 point relay output.

Transmission output: 1 channel 4-20mA signal output.
