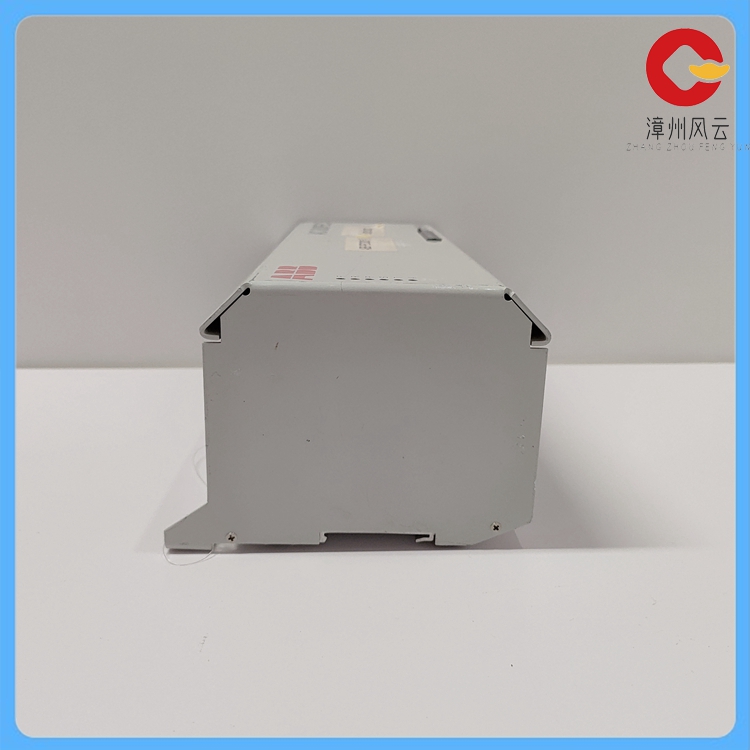

3BHE014185R0001 PCB电路板

3BHE014185R0001 UUD148AE01 PCB电路板

3BHE014185R0001 UUD148AE01 机械特性：

外形尺寸：132mm105mm52mm。

外壳：IP30防护等级，采用波浪纹铝制加强机壳。

安装方式：采用标准工业35mm导轨安装。

净重：800g。

工作环境：

工作温度：-10~70℃（有更宽的温度范围可选，如-40~+85℃）。

相对湿度：≤90%（无冷凝）。

存放温度：-40~80℃。

测试认证：该模块通过了一系列电气测试认证，如IEC61000-4系列的标准，包括ESD（静电放电）、RS（辐射抗扰度）、EFT（电快速瞬变脉冲群）等。

3BHE014185R0001 UUD148AE01 电气特性：

支持标准规范中的预定通信速率。

支持拨码开关手动设置其全部标准速率或者速率自适应。

6个双色LED状态指示灯，用于电源故障继电器输出告警。

电接口具有4000V的防雷、1.5A过流、600W浪涌保护功能。

数据电接口：

采用9针的Sub_D插孔连接器，管脚定义符合Profibus DP的协议规范。

支持Profibus DP总线标准，具有多种通信速率选项，如9.6kBit/s、187.5kBit/s、1.5MBit/s等。

3BHE014185R0001 UUD148AE01 电源及保护：

双电源冗余输入，典型电压DC24V，功耗小于4W。

具有DC1500V电压隔离以及反接保护功能。

3BHE014185R0001 UUD148AE01 PCB board

3BHE014185R0001 UUD148AE01 Mechanical Characteristics:

Overall dimension: 132mm105mm52mm.

Housing: IP30 protection grade, using corrugated aluminum reinforced housing.

Installation method: Standard industrial 35mm guide rail installation.

Net weight: 800g.

Working environment:

Operating temperature: -10~70℃ (a wider temperature range is available, such as -40~+85℃).

Relative humidity: ≤90% (no condensation).

Storage temperature: -40~80℃.

Test certification: The module has passed a series of electrical test certifications, such as IEC61000-4 series standards, including ESD

 (electrostatic discharge), RS (radiation immunity), EFT (electrical fast transient pulse group), etc.

3BHE014185R0001 UUD148AE01 Electrical Characteristics:

Support for predetermined communication rates in standard specifications.

Supports manual setting of all standard rates or rate adaptive of DIP switches.

6 two-color LED status indicators for power failure relays to output alarms.

Electrical interface with 4000V lightning protection, 1.5A overcurrent, 600W surge protection functions.

Data electrical interface:

The 9-pin Sub_D jack connector is adopted, and the pin definition conforms to the protocol specification of Profibus DP.

Support Profibus DP bus standard, with a variety of communication rate options, such as 9.6kBit/s, 187.5kBit/s, 1.5MBit/s and so on.

3BHE014185R0001 UUD148AE01 Power and Protection:

Dual power supply redundant input, typical voltage DC24V, power consumption less than 4W.

With DC1500V voltage isolation and reverse protection function.
