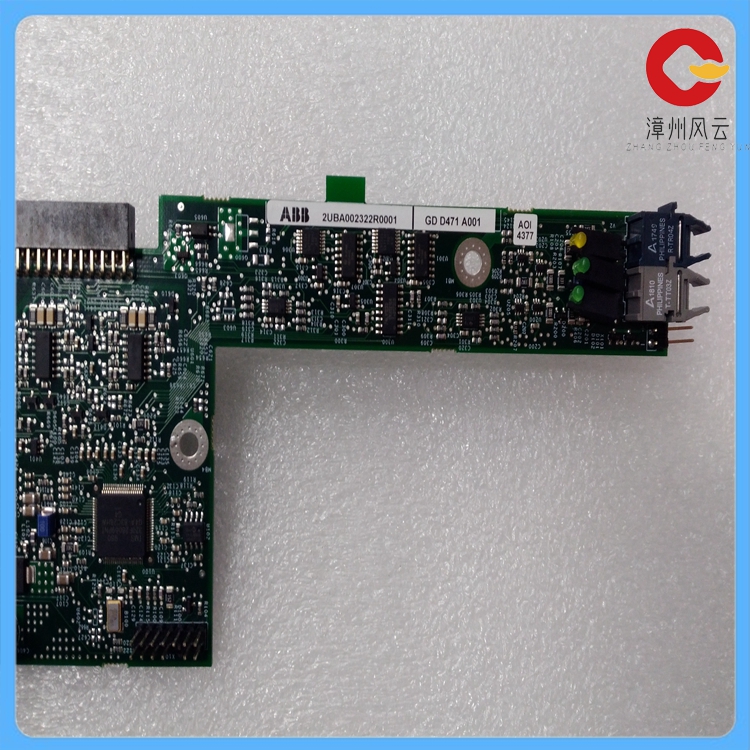

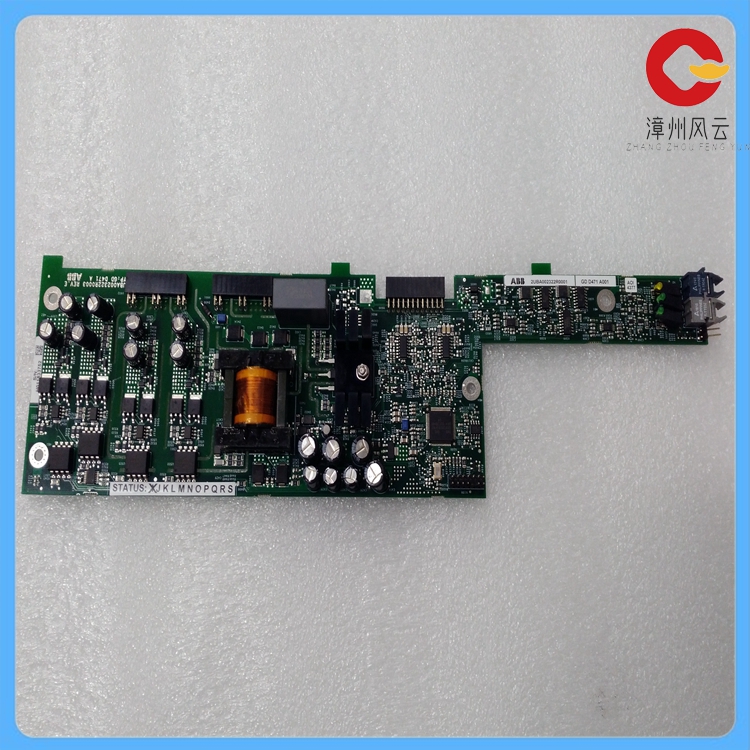

2UBA002322R0001 采集卡模块

2UBA002322R0001采集卡模块的相关参数如下：

型号：2UBA002322R0001。

2UBA002322R0001功能：通常用作通讯接口模块，适用于PLC或DCS系统。

工作原理：涡轮传感器与前置器形成一个振荡器，振幅随着传感器探头与金属被测物的接近与衰减而变化，衰减的幅度与传感器和被测物之间的距离成正比。

校准：出厂前已经使用校准材料42CrMo4对传感器与前置器成套地进行了线性校准，因此安装时不需要再做校准。用户只需要调整传感器和测量面之间的气隙，直至从前置器的输出得到所需信号。

2UBA002322R0001传感器型号与规格：为满足各种测量需要和环境要求，提供了多种型号及配置的涡轮传感器供用户选择。

传感器的测量范围通常为1mm至20mm，螺纹尺寸有ф6mm、ф10mm和ф18mm的公制或英制螺纹。

2UBA002322R0001 Collection card module parameters are as follows:

Model: 2UBA002322R0001.

2UBA002322R0001 Function: Usually used as a communication interface module, suitable for PLC or DCS system.

Working principle: The turbine sensor and the preprocessor form an oscillator, and the amplitude changes with the proximity and attenuation of the sensor probe to the metal

object, and the amplitude of the attenuation is proportional to the distance between the sensor and the object.

Calibration: The sensor and preprocessor have been linearly calibrated in complete sets using calibration material 42CrMo4 before delivery, so no calibration is required during

installation. The user only needs to adjust the air gap between the sensor and the measuring surface until the desired signal is obtained from the output of the preprocessor.

2UBA002322R0001 Sensor Models and specifications: To meet various measurement requirements and environmental requirements, turbine sensors are available in various models and configurations.

The measurement range of the sensor is usually 1mm to 20mm, and the thread sizes are Phi 6mm, Phi 10mm and Phi 18mm metric or imperial threads.
